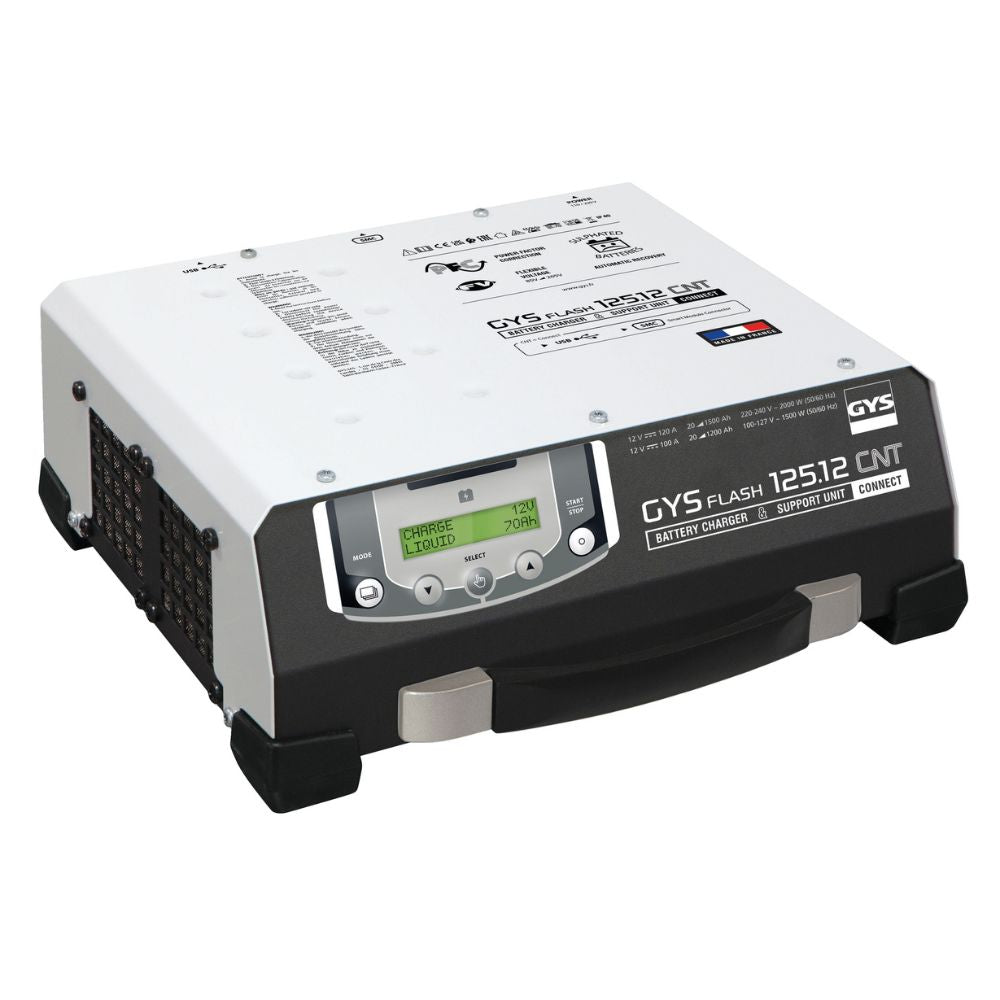

GYSFLASH 125.12 CNT FV BATTERY SUPPORT UNIT

Price Exc Tax

028883

GYS High Power (120A) Battery Charger and BSU

SKU 028883

Allows keeping a 12 V lead or lithium battery at a perfectly stabilised voltage during the diagnostic phases. It will deliver the best charging cycle recommended for the maintenance of the most advanced vehicles on the market. Its USB connectivity makes it 100% customisable.

4 OPERATING MODES

• Charging: for 12 V Lead or Lithium (LFP) batteries from 5 to 1500 Ah.
• Diagnostics: supports up to 120 A for 12 V batteries in vehicles in the diagnostic phase in maintenance workshops.
• Showroom: provides power compensation when using the electrical accessories of a demonstration vehicle. It also manages the optimal charging of the battery.
• Tester: This allows you to check the battery voltage and evaluate the starting system (starter + battery) and the condition of the vehicle’s alternator.

COMES WITH + DOWNLOAD

027886  Texas 5.0mm-25mm Cables for Gusflash 125.12 CNT FV Fitted with 2x2.5m - 10mm² cables
Download Data Sheet Gysflash 125.12 brochure


100% CONNECTED
• Add, delete or modify charging modes and profiles via USB.
• Import predefined configuration files adapted to the load trades.
• Retrieve the charging history and data on a USB stick and use them on a spreadsheet. • Connect additional modules (printer, barcode reader, etc.) via its dedicated module socket (SMC: Smart Module Connector).

AUTOMATIC CHARGE
• Extends the life and performance of Lead (gel, AGM, liquid, calcium, etc.) and Lithium (LFP) batteries.
• Specific charging curve in 8 steps (lead battery) or 9 steps (lithium-iron-phosphate battery) without supervision. • Recovers deeply discharged batteries >2 V (automatic SOS Recovery).
SAFETY
Protection of the vehicle’s onboard electronics: protection against short circuits, polarity reversal and overcharging. Spark prevention system.

Interchangeable fusible, which protects against misuse.
Temperature sensor to prevent internal electronics overheating.
ADVANCED INTUITIVELY
• Durable case with shock and vibration-absorbing pads.
• Low height (13 cm) for the loader to pass under a vehicle.
TECHNOLOGIES & ADVANCED FUNCTIONS

FV Flexible Voltage, the charger operates with a supply voltage between 85 and 265 V.

The «Auto-Detect» function automatically starts a charge when a battery is connected to the charger.

«Auto-Restart» function in the event of a power failure with the memory of the settings.

Cable inspection and calibration

Locking avoids the risk of improper handling, ideal for garages and exhibition halls.

Up to 12 charging profiles are available, including the Easy profile for simplified charging suitable for all lead batteries.

Manufacturer: GYS
Part No. 028883
Supply: 220-240 V AC
Power: 2000W
Charge: 120A

GYSFLash 125.112 CNT
Fitted with 2x2.5m - 10mm² cables • It can be fitted with 2x8m - 16mm² and more. The calibration is automatic.
