Gysflash 103.12 Cnt Fv (5m Cables)
Gysflash 103.12 Cnt Fv (5m Cables)
GYS 100A Connected 12V Battery Support & Smart Charger with Flexible Voltage

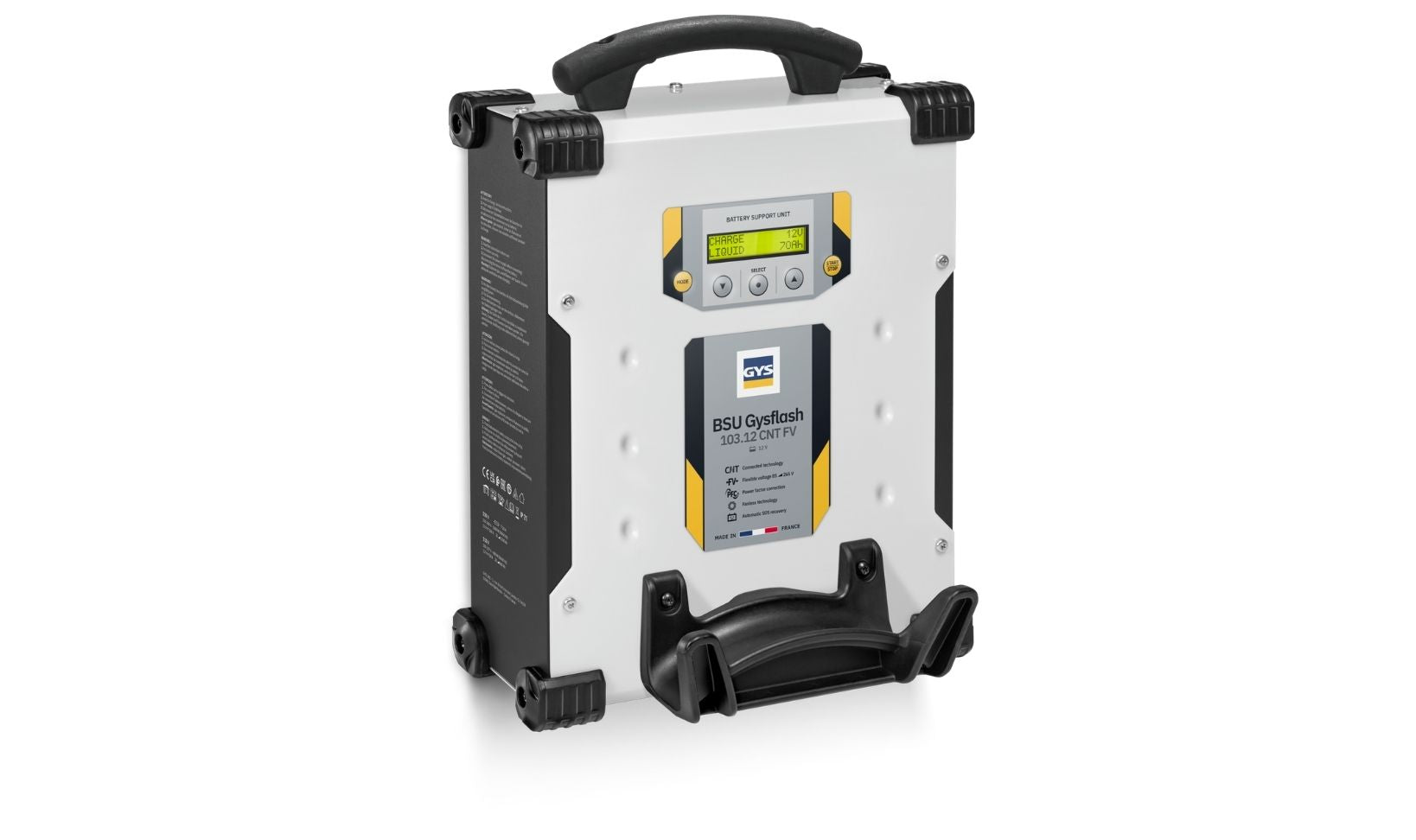

The GYSFLASH 103.12 CNT FV is a high-power 100A inverter battery charger and stabilised power supply designed for professional workshops, diagnostics centres, and showrooms. Engineered for 12V lead-acid and lithium batteries (including LiFePO4), it delivers precise voltage stabilisation during diagnostic procedures while ensuring optimal multi-stage charging for batteries from 20 to 1,200 Ah. Featuring Flexible Voltage (85–265V), it operates worldwide without manual adjustment. Its fully connected USB interface allows configuration updates, data retrieval, and custom charging profiles. With four operating modes—Charging, Diagnostics, Showroom, and Testing—it supports modern vehicles while protecting sensitive onboard electronics. Advanced safety systems include anti-spark protection, reverse polarity protection, thermal monitoring, and automatic restart after power failure. Compact, wall-mountable, and robustly constructed, the GYSFLASH 103.12 CNT FV is the ideal intelligent charging solution for demanding automotive environments.
WHY BUY FROM BWS?
Specification
- Output voltage: 12 V
- Charging current: up to 100 A (230 V supply)
- Battery capacity range: 20 – 1,200 Ah
- Supply voltage: 85 – 265 V (Flexible Voltage)
- Power rating: 1600 W (230 V) / 800 W (110 V)
- Protection rating: IP21

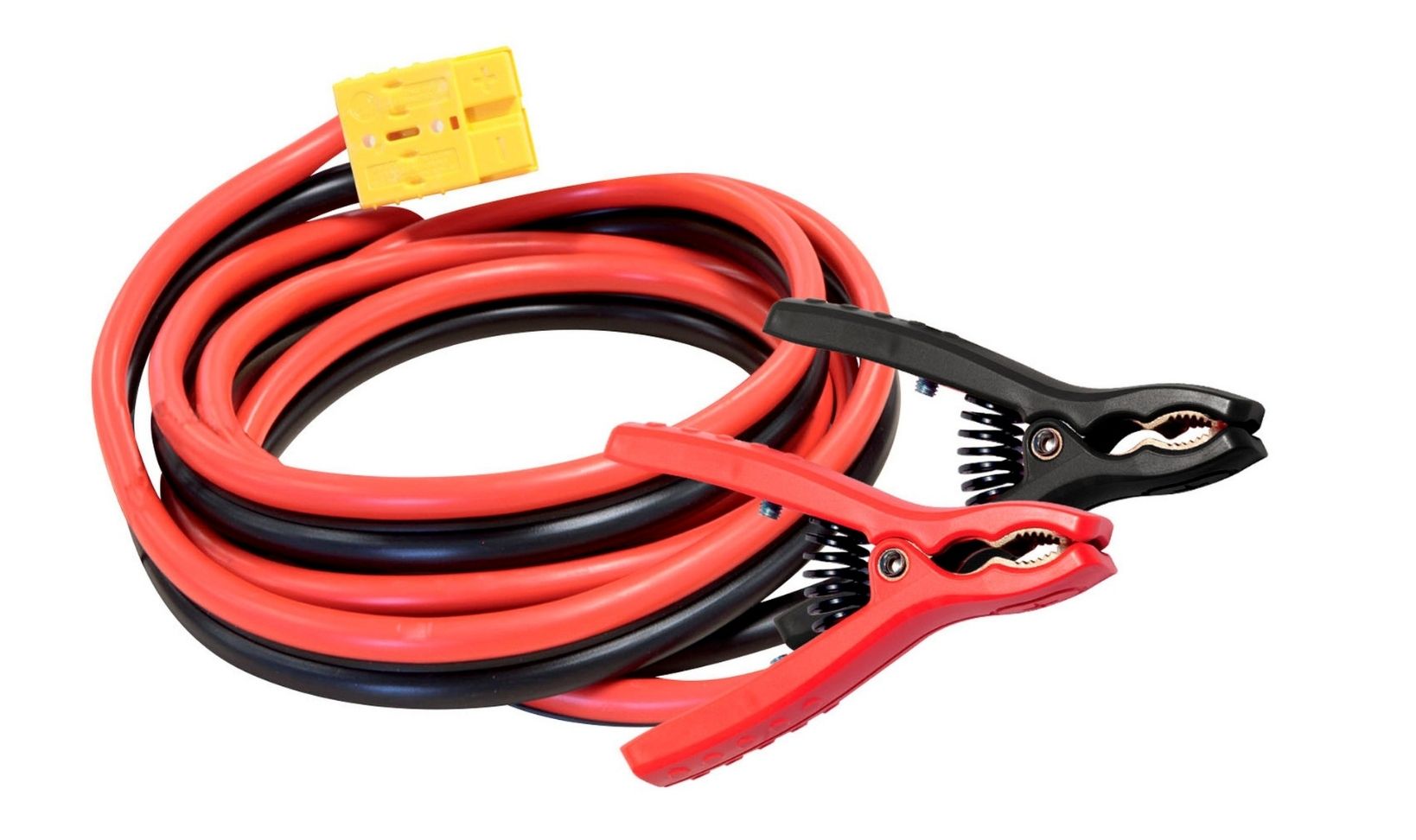

- Cable length: 5 m (16 mm²)
- Dimensions: 34.4 x 29.1 x 12 cm
- Weight: 9.2 kg
- Standards compliance: EN 60335-2-29
Features
- Four operating modes: Charging, Diagnostics, Showroom, Testing
- Compatible with lead-acid and lithium (Li-ion & LiFePO4) batteries
- USB connectivity for profile customisation and data logging
- Eight-stage (lead) and nine-stage (lithium) automatic charging curves
- SOS Recovery function for deeply discharged batteries (>2 V)
- Auto-Detect and Auto-Restart functions
- Anti-spark, reverse polarity and overload protection
- Temperature monitoring for internal component protection
- Wall-mountable design with optional magnetic rail system
- Supports additional CNT modules (printer, barcode reader, etc.)
FAQs
1. Can the GYSFLASH 103.12 CNT FV support vehicles during diagnostics?
Yes, it provides a stable 12V supply up to 100A to maintain voltage during diagnostic and programming procedures.
2. Is it compatible with lithium batteries?
Yes, it supports standard lithium-ion and LiFePO4 batteries with a dedicated multi-stage charging profile.
3. What does Flexible Voltage (FV) mean?
Flexible Voltage allows the charger to operate automatically between 85V and 265V without manual selection.
4. Can charging profiles be customised?
Yes, via USB connectivity, users can update, modify, and retrieve charging profiles and historical data.
