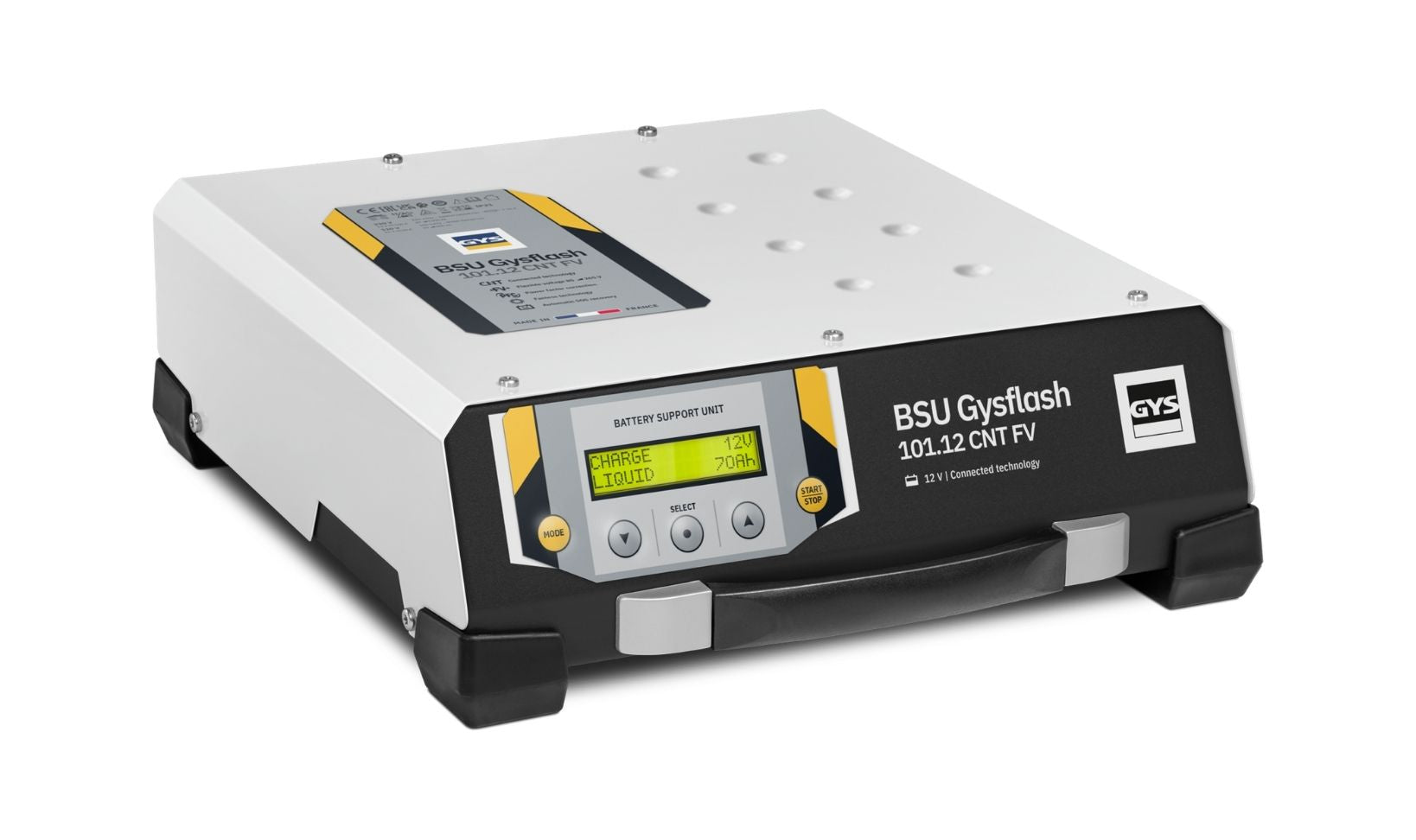

GYSFLASH 101.12 CNT FV (2.5m Cables)
Prices Exclude Tax
100A Connected 12V Smart Charger & Battery Support Unit with Flexible Voltage
The GYSFLASH 101.12 CNT FV is a fully connected 100A inverter battery charger and stabilised power supply designed for professional automotive workshops and diagnostic environments. Engineered to maintain 12V lead-acid and lithium (LiFePO4) batteries at a perfectly stabilised voltage, it ensures safe support during complex diagnostic and programming procedures. Featuring Flexible Voltage (85–265V), it operates globally without manual adjustment. Its advanced USB connectivity allows users to customise charging profiles, import configuration files, and retrieve detailed charging history data. With four dedicated operating modes—Charging, Diagnostic Support, Showroom Power Supply, and Battery Tester—the unit adapts seamlessly to modern vehicle requirements. Built with a low-profile, vibration-resistant casing and advanced electronic protections, the GYSFLASH 101.12 CNT FV delivers safe, silent, and high-performance charging for demanding workshop applications.
Collections: Best Selling Products, Newest Products
WHY BUY FROM BWS?
Specification
- Output voltage: 12 V
- Maximum charging current: 100 A (230 V) / 50 A (110 V)
- Battery capacity range: 5 – 1,200 Ah
- Supply voltage: 85 – 265 V (Flexible Voltage)
- Power rating: 1600 W (230 V) / 800 W (110 V)
- Protection rating: IP21

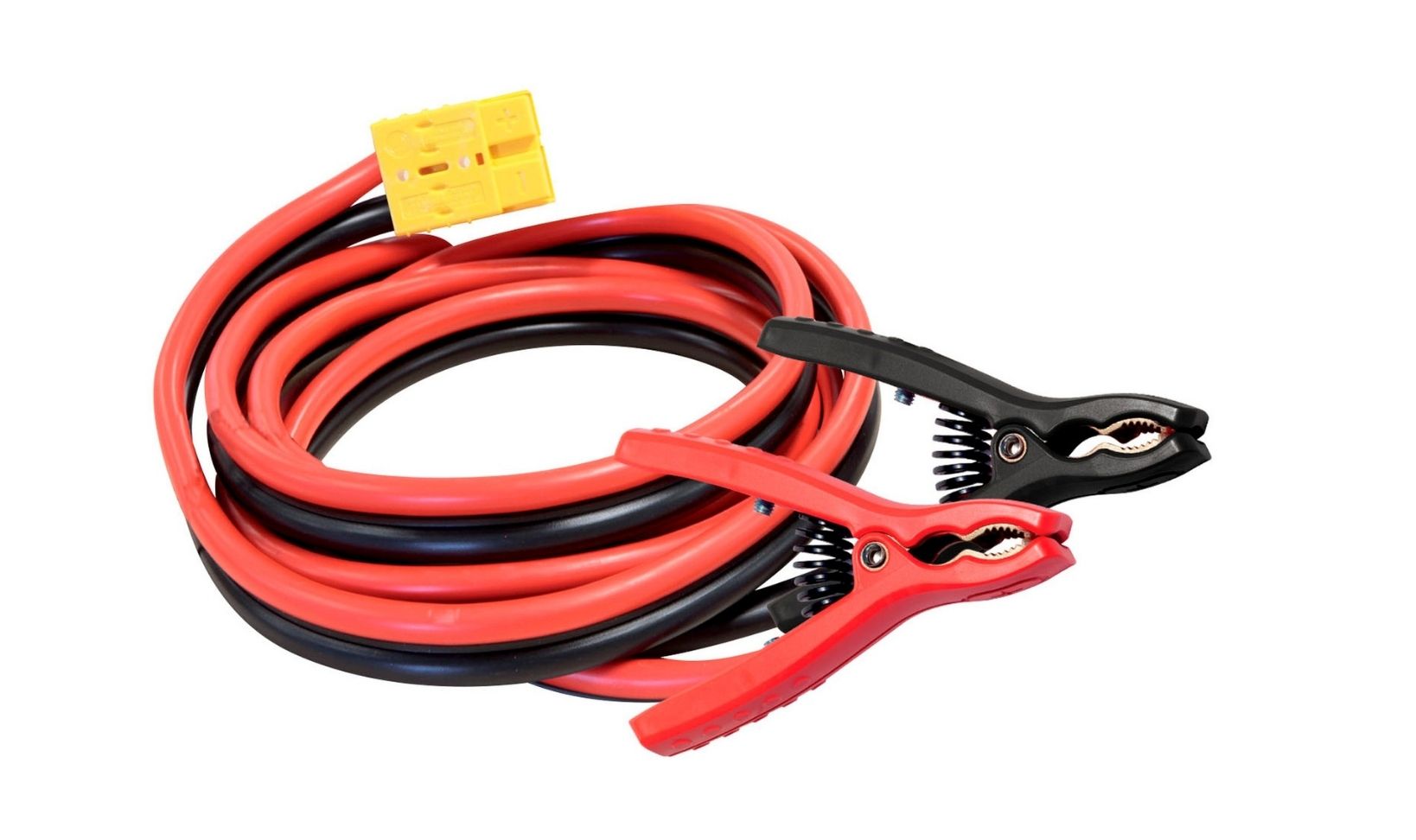

- Cable length supplied: 2.5 m (16 mm²)
- Dimensions (L x W x H): 32 x 10.5 x 29.2 cm
- Weight: 7.5 kg
- Standards compliance: EN 60335-2-29
Features

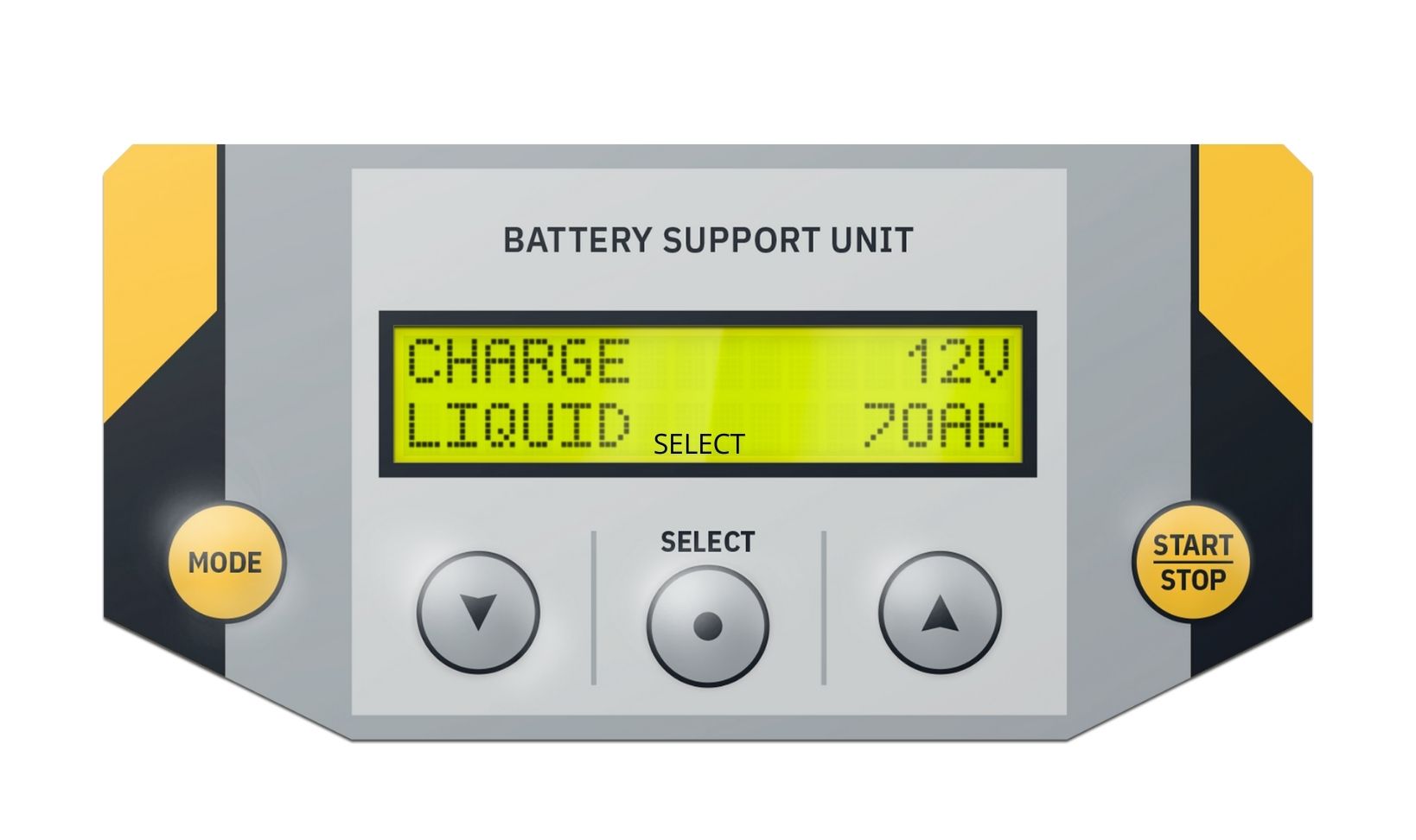

- Four operating modes: Charging, Diagnostic Support, Showroom, Battery Tester
- Compatible with lead-acid (AGM, Gel, Calcium) and lithium (LiFePO4) batteries

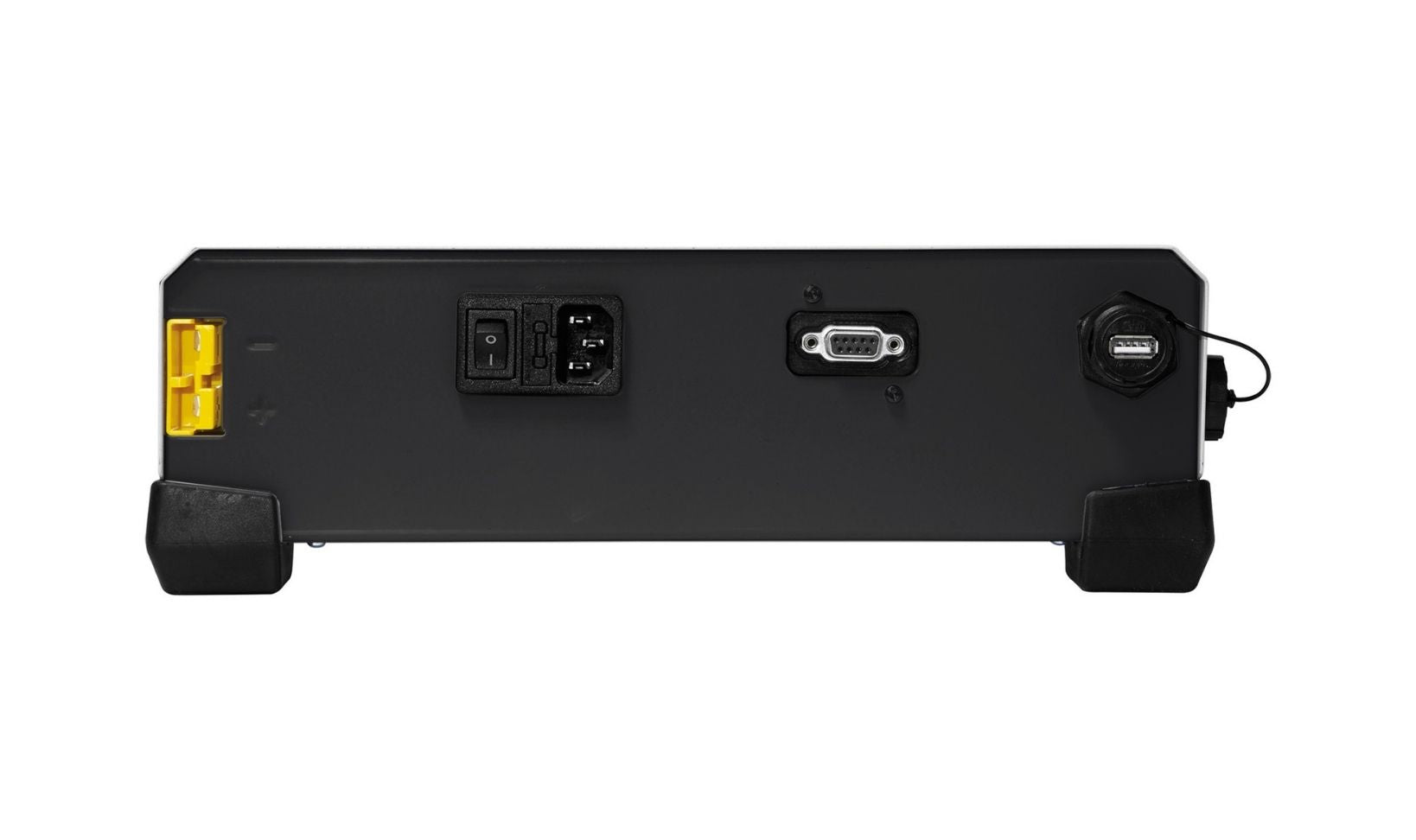

- USB connectivity for profile customisation and charging history retrieval
- Eight-stage (lead) and nine-stage (lithium) automatic charging curves
- SOS Recovery mode for deeply discharged batteries (>2 V)
- Auto-Detect and Auto-Restart functions
- Advanced electronic protection: short circuit, reverse polarity, overcharge
- Temperature monitoring to prevent overheating
- Low-profile, shock-resistant casing for workshop durability
- Smart Module Connector (SMC) for additional modules (printer, barcode reader)
FAQs
1. Can the GYSFLASH 101.12 CNT FV be used during ECU programming?
Yes, it provides a stabilised 12V power supply up to 100A, ensuring voltage stability during diagnostic and ECU programming procedures.
2. Is the charger suitable for lithium batteries?
Yes, it supports lithium iron phosphate (LiFePO4) batteries with a dedicated nine-stage charging profile.
3. What is Flexible Voltage (FV)?
Flexible Voltage allows the charger to operate automatically between 85V and 265V without manual switching, making it suitable for worldwide use.
4. Can charging data be recorded?
Yes, charging history and configuration data can be exported via USB for analysis and record-keeping.
