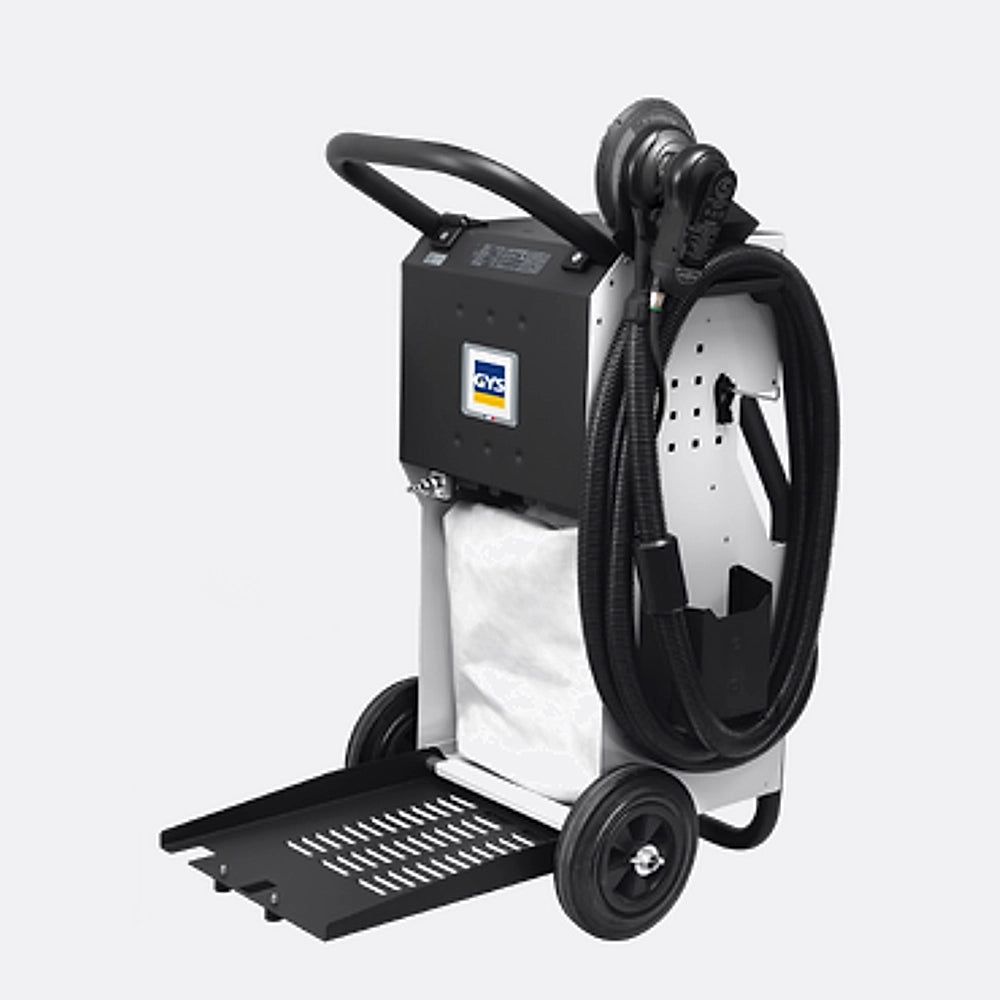

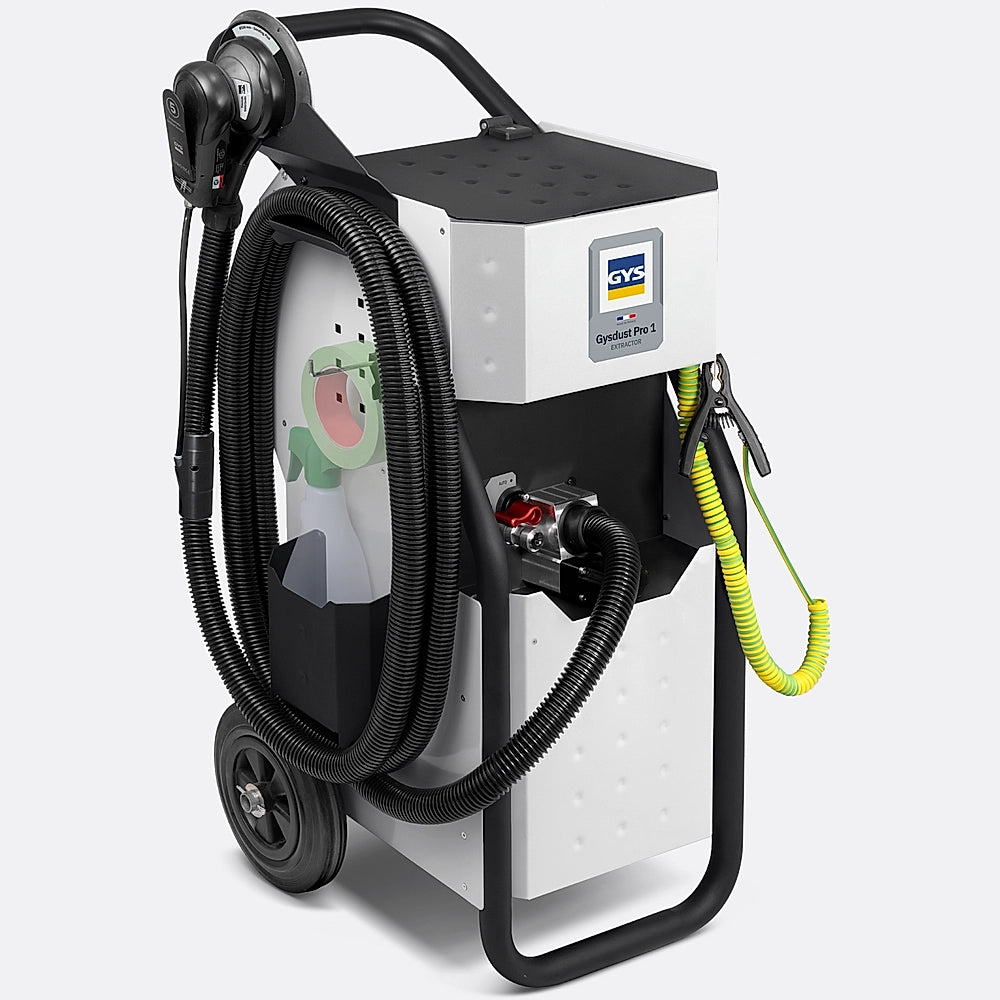

Gysdust Pro 1 Extractor- Single Connection

The GYSDUST PRO 1 EXTRACTOR is designed to handle a wide range of hazardous particulates and fumes generated during metalworking operations. Its Class H HEPA filtration makes it suitable for capturing fine metallic dust, welding fumes, stainless steel particles, and other carcinogenic airborne materials regulated under COSHH guidelines. It is compatible with MIG, MMA, and TIG welding processes, as well as angle grinding, cutting, and sanding applications. It is important to note that the unit is not rated for use with explosive dusts or flammable vapours unless paired with ATEX-certified accessories — please consult our team if your application involves such materials.

Filter service life on the GYSDUST PRO 1 depends on the volume and type of material being extracted. Under typical workshop conditions involving moderate welding and grinding activity, the HEPA filter can last between 6 and 18 months before replacement is required. The integrated automatic pulse-jet cleaning system significantly extends filter life by continuously dislodging surface-loaded dust back into the collection drum. A noticeable and sustained drop in suction performance — even after the auto-clean cycle has run — is the clearest indicator that filter replacement is due. GYS recommends using genuine replacement filters to maintain the unit's certified filtration class and to preserve warranty validity. Replacement filters are stocked at BWS and can be ordered alongside consumables for convenience.

Yes — the GYSDUST PRO 1 is fully compatible with on-torch fume extraction systems, including GYS's own range of extraction MIG torches and third-party on-gun extraction accessories, provided the correct adapter is used to match the 50 mm inlet diameter. On-torch extraction is the most effective method for capturing fumes at source before they enter the welder's breathing zone, and the GYSDUST PRO 1's high vacuum pressure of 22,000 Pa provides sufficient draw to overcome the additional resistance introduced by the torch hose and nozzle assembly. If you are unsure which torch or adapter is compatible with your current welding equipment, our technical sales team at BWS can advise on the correct configuration prior to purchase.

The GYSDUST PRO 1 EXTRACTOR is CE-marked and built to comply with EN 60335-2-69, the key European standard governing the safety and classification of dust extraction appliances for use with hazardous materials. Its Class H filtration rating satisfies the requirements mandated for the capture of carcinogenic and toxic dusts under both UK COSHH regulations and European Directive 2004/37/EC relating to occupational exposure to carcinogens. For employers in the UK, deploying a Class H-rated extractor such as the GYSDUST PRO 1 as part of a documented COSHH risk assessment will typically satisfy the requirement to provide adequate engineering controls for welding fume, in line with updated HSE guidance introduced in 2019. We recommend consulting your health and safety advisor to confirm suitability for your specific application and site conditions.
