GYS Speedliner Arcpull Kit

Name: GYS Speedliner Arcpull Kit
Brand: GYS
SKU: U50693
Price: 3999.00 GBP
Availability: InStock

£3,999.00

Shipping calculated at checkout.

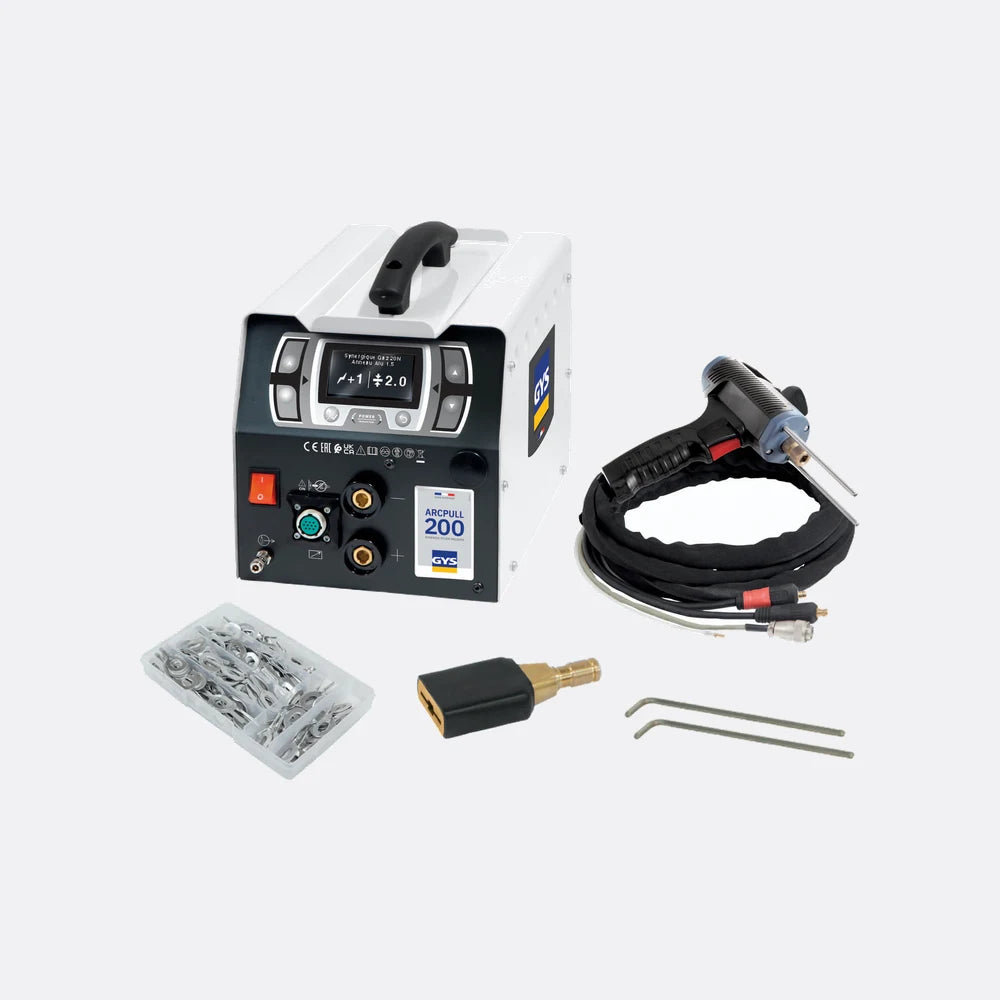

GYS Speedliner Arcpull Kit is a drawn-arc dent-pulling kit for professional bodyshops, designed for aluminium and steel panel repair. GYS Speedliner Arcpull Kit uses a high-precision linear motor gun with digital process control and selectable manual or synergic modes. GYS Speedliner Arcpull Kit is supplied with aluminium keys and a lifting rod as standard consumables.

Key Features

Drawn-arc welding for dent pulling
Manual and synergic welding modes
Digital process control integrated
High-precision linear motor gun
Two independently adjustable electrodes
Includes aluminium keys and lifting rod

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.

Supply

110 V 1~230 V 1~

Warranty

2 years

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Technical Features

Drawn arc welding process developed specifically for thin car body sheet metal for dentpulling.
Two welding modes: synergic mode with factory pre‑established programs and manual mode for personalised control.
Digital interface provides intuitive navigation between welding modes and parameters.
Gun fitted with a high‑precision linear motor and digital control for refined synergies and precise control of the welding cycle.
Digital process control removes the need for manual parameter adjustments during the welding cycle.
Gun incorporates two independently adjustable ground electrodes for improved stability during welding.
Gas protection when working on aluminium to reduce contamination of the weld.
Capable of welding steel and aluminium studs up to Ø 6 mm in diameter as part of the dent‑pulling process. ","Includes an automatic gun with two ground electrodes, an aluminium keys consumables box (1.5 mm) and a lifting rod as standard.","Straight and twisted pulling keys available for Al‑Special, AlMg3 and AlMgSi in multiple pack sizes (for example x50/x100 for straight keys and x20/x50 for twisted keys).","Process allows deeper repairs, closer key fitment for stronger pulling and a reduction in post‑repair preparation compared with capacitor discharge methods.","Drawn arc method produces no impact on the reverse side of the repaired panel when correctly applied.","Compatible with optional consumable and accessory items listed by the manufacturer, including aluminium and steel thread consumable boxes, trolleys, a dent station, bottle support and a manometer.","Designed for use on single‑phase supply voltages including 110 V and 230 V configurations as specified by the manufacturer."]}حيح?}{

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Specification

Reference

057470

Model

GYSPOT ARCPULL 200

Made in

FRANCE

Standard

EN 60974-1

Input Voltage

110 V 1~, 230 V 1~

Frequency

50/60hz

Apparent Power

7.4 kVA

Welding current (110 V 1~)

10–100 A

Welding current (230 V 1~)

10–200 A

Process

Drawn arc

Welding modes

Synergic, Manual

Gun

Automatic gun with linear motor and digital control

Ground electrodes

2 independently adjustable

Dimensions (unit)

20,5 x 25 x 33 cm

Weight (unit)

11,9 kg

Box dimensions

48 x 27,7 x 36 cm

Box weight

13,8 kg

Cable length

4 m

Included

Automatic gun with 2 ground electrodes; aluminium keys consumables box 1,5 mm; lifting rod

Aluminium keys consumable box 1.0 mm

059412

Aluminium keys consumable box 1.5 mm

059429

Aluminium threads consumable box

059436

Steel threads consumable box

059443

Trolley weld 810 (option)

Ref. 037489

Trolley SPOT 1000 (option)

Ref. 051348

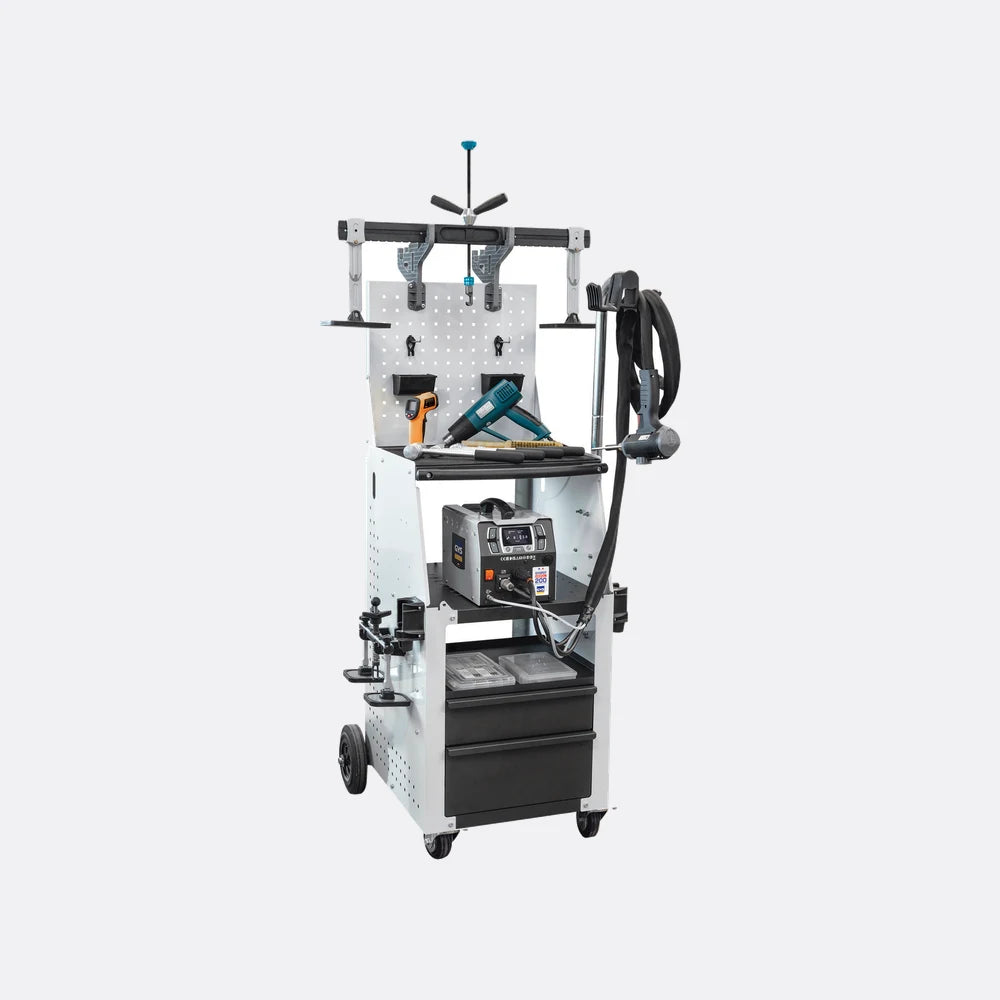

DENTSTATION (option)

Ref. 056848

Bottle support (option)

Ref. 059665

Manometer 30 l/min (option)

Ref. 041622

Straight pulling keys Al-Special

x 50, x 100 n° 1 059535 n° 4 059559

Straight pulling keys AlMg3

x 50, x 100 n° 2 059498 n° 5 059511

Straight pulling keys AlMgSi

x 50, x 100 n° 3 059450 n° 6 059474

Twisted pulling keys Al-Special

x 20, x 50 n° 1 059542 n° 4 059566

Twisted pulling keys AlMg3

x 20, x 50 n° 2 059504 n° 5 059528

Twisted pulling keys AlMgSi

x 20, x 50 n° 3 059467 n° 6 059481

Maximum stud diameter (steel/aluminium)

Ø 6 mm

FAQs

What welding modes and controls does the GYS Speedliner Arcpull Kit provide?

The unit uses the drawn arc process developed for thin car body sheet metal and offers two welding modes: a synergic mode with factory pre‑established programmes for fast setup, and a manual mode for personalised settings. The gun features a high‑precision linear motor with digital control and digital process control to reduce the need for manual adjustments. It also has two independently adjustable ground electrodes for improved stability during the welding cycle.

Which materials and stud sizes can it weld, and is it suitable for aluminium dent‑pulling?

Designed for thin car body sheet metal, it welds both aluminium and steel studs up to Ø6 mm. For aluminium dent‑pulling the drawn arc process provides gas protection to prevent contamination, deeper repair capability, closer key fitment for stronger pulling, reduced post‑repair preparation and no impact on the reverse side of the panel.

What power supply does the kit require?

The product accepts single‑phase supply at 110 V or 230 V and is specified for 50/60 Hz operation.

What is included in the kit and what consumables or options are available?

Included items listed are the automatic gun with two ground electrodes, an aluminium keys consumables box 1.5 mm (ref. 059429) and a lifting rod. Consumable and accessory options shown include aluminium and steel thread consumable boxes (refs. 059436, 059443), aluminium keys in 1.0 mm and 1.5 mm, straight and twisted pulling keys with various pack sizes and reference numbers, plus trolleys, a DentStation, bottle support and a manometer as optional accessories.

Engineer Advice

Jason says

The GYS Speedliner Arcpull Kit is a drawn‑arc dent‑pulling system developed for thin car body sheet metal. I use it in workshops to pull dents on aluminium and steel panels where control over the weld and minimal rear‑side damage are required. In practice it runs with gas protection, uses aluminium or steel keys and can weld studs up to Ø6 mm; the kit includes an automatic gun with two ground electrodes, an aluminium keys consumables box (1.5 mm) and a lifting rod. Key technical considerations are correct setup of the digital linear‑motor gun and reliable earth contact via the independently adjustable ground electrodes, and feeding the correct key type for the alloy being repaired. A common issue I see is poor contact or dirty paint at the weld point, which gives unstable cycles and failed pulls; pre‑cleaning and checking electrode adjustment cure most problems. When installed and used with appropriate consumables and gas protection it gives a dependable, repeatable repair method for thin panel work.

Jason, Sales Director
