GYS ALUMINIUM DUST EXTRACTOR (ATEX APPROVED)

Save 10%
Original price £1,752.22
Current price £1,577.00

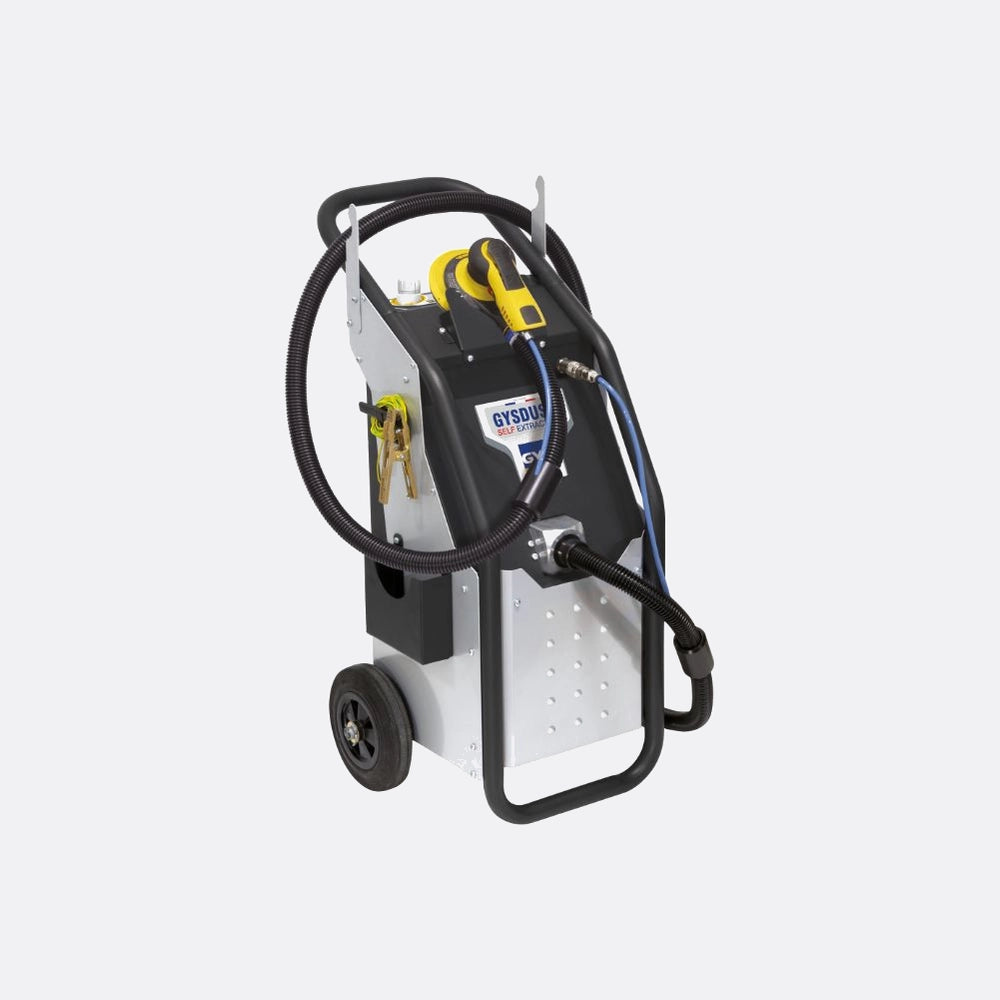

GYS PNEUMATIC MOBILE DUST EXTRACTOR FOR ALUMINIUM (ATEX APPROVED)


SUITABLE FOR STEEL AND ALUMINIUM WELDING AND GRINDING DUST
(Atex) Dust container capacity: 25 l
Working compressed air pressure: 6 bar
Compressed air consumption at 6 bar: 800 l/min Suction connection diameter size: 50 mm
Max suction capacity: 150 m3/h
Max vacuum level: 2000 mm
H2O Recommended compressor power: 7.5 HP

WHAT DOES ATEX MEAN?

ATEX is the name of two European Directives that control potentially explosive atmospheres and the standard of equipment that can be used in these environments. Paint booths and Aluminium repair bays can be designated as explosive atmospheres. Therefore equipment for work in these environments MUST be ATEX approved.
SPECIFICATION

Part No 058866
Supply pressure
7 bar
Compressed air supply connection diameter
3/8”
Filter surface
0,5 m2
Filter material
Antistatic polyester
BIA value
C
Suction capacity
98 m3/h
Air consumption of suction cleaner
1000 l/min
Vacuum level
1900mmH2O
Dry dust capacity
20 litres
Noise level
78 dB
Dimensions
70x54x90h cm
Weight
30 kg
