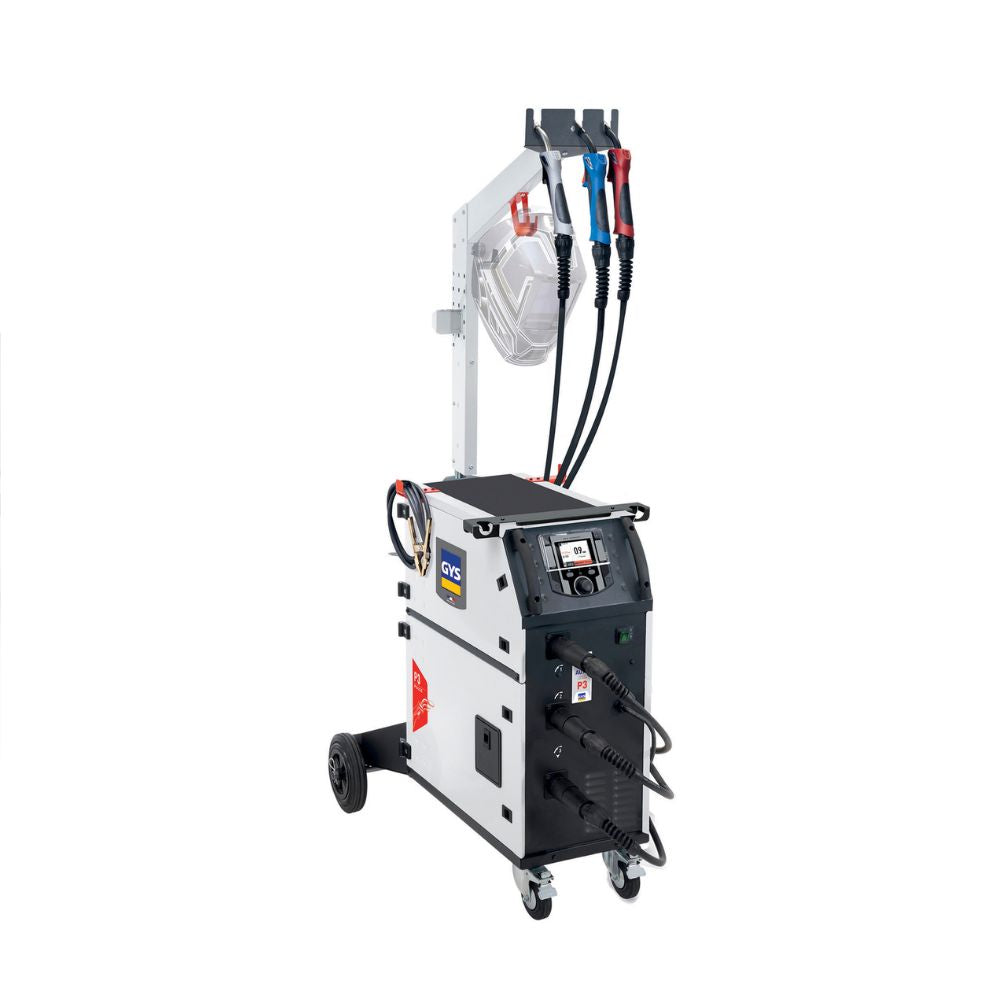

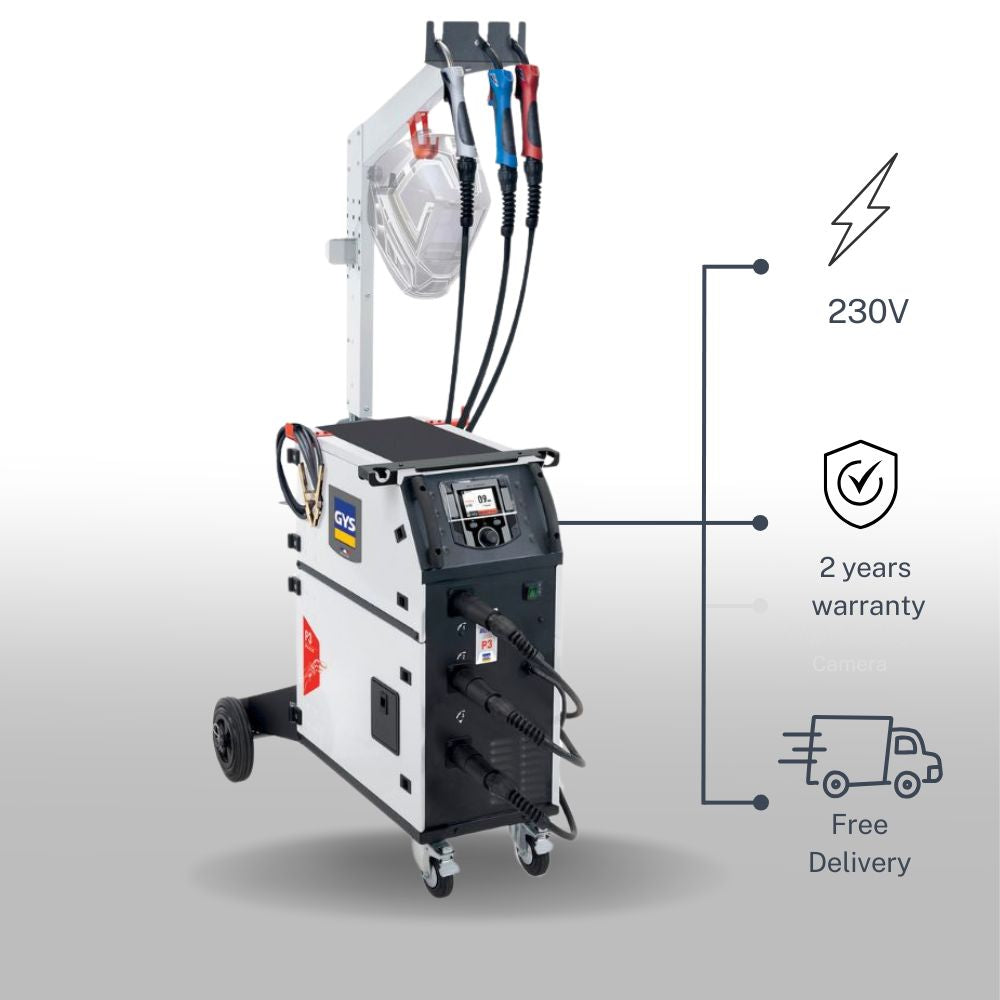

P3 GYS Auto Pulsed MIG Welder Complete Pack

Name: P3 GYS Auto Pulsed MIG Welder Complete Pack
Brand: GYS
SKU: U80591
Price: 3550.00 GBP
Availability: InStock

£3,550.00

Shipping calculated at checkout.

P3 GYS Auto Pulsed MIG Welder Complete Pack is a professional, digitally controlled 3‑in‑1 MIG unit for bodyshop and fabrication work; the P3 GYS Auto Pulsed MIG Welder Complete Pack includes auto‑pulse control and multiple torches, and the P3 GYS Auto Pulsed MIG Welder Complete Pack is intended for workshop use.

Key Features

Integrated auto-pulse welding control
Three interchangeable torches supplied
Four-roller digital wire feed
Digitally controlled synergic operation
IP23S environmental protection rating
On-demand adjustable ventilation system

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.

Supply

230V

Warranty

1 Year

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Engineer Advice

Paul Jones says

I regard the P3 GYS Auto Pulsed MIG Welder Complete Pack as a professional pulsed MIG/MAG welding unit for bodyshop and workshop use. I use it where weld quality on mixed materials is required: steel, aluminium and brazing alloys, including thin gauge panels around 1.0–1.2 mm using pulse mode. The packed arrangement with three torches and an integrated 4‑roller wire feeder keeps changeovers straightforward and helps maintain consistent wire delivery. Key technical points are correct wire feed setup and material-specific torch selection: wire diameters must match the rollers (0.6–1.2 mm) and shielding gas flow should be set within the machine guidance of 10–20 L. The unit’s PFC input tolerance and IP23S rating suit busy workshop environments.
In practice the intuitive HMI and job memory reduce setup time when switching materials; most problems I see are down to incorrect programme choice due to people inadvertently changing it. Before welding always check what programme you have on the screen.
Paul Jones, Technical Director

Paul Jones, Technical Director

Technical Features

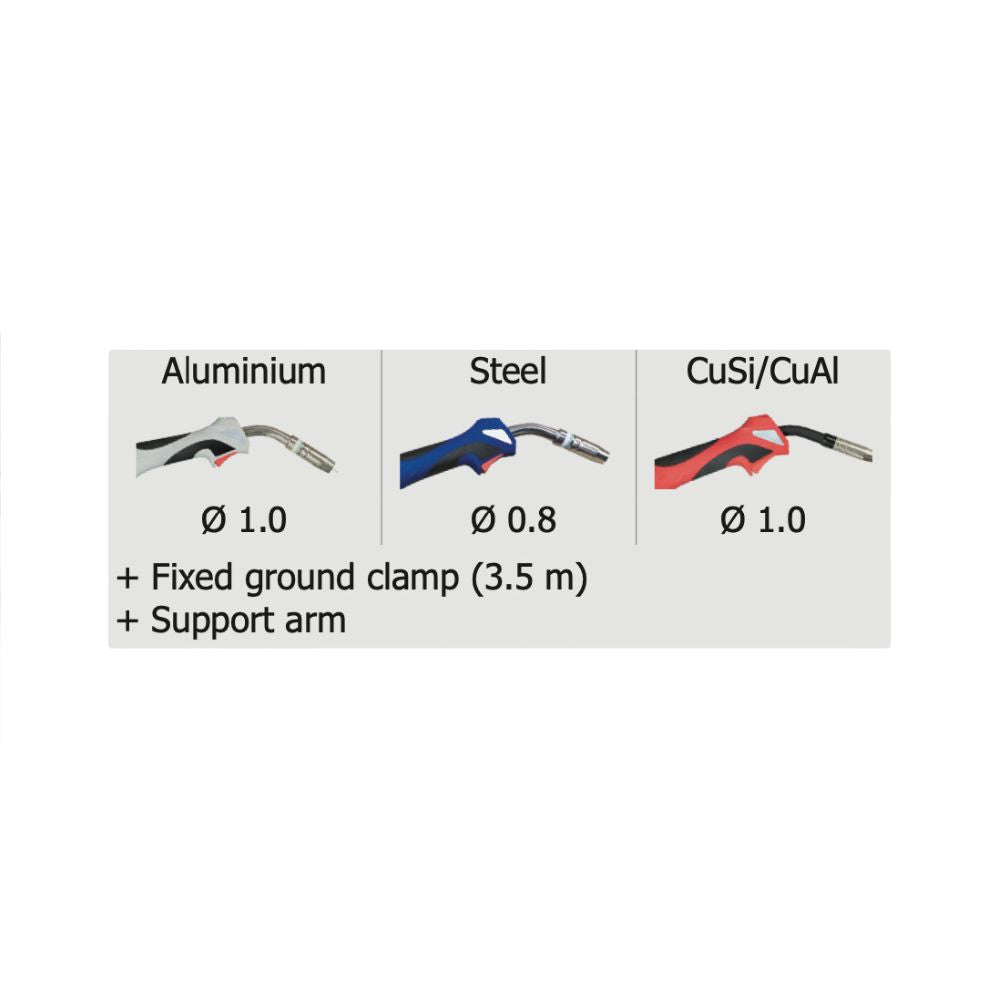

Three integrated wire feeders with three supplied torches configured for aluminium, steel and CuSi applications (Aluminium torch 3 m Ø1.0+1.2 mm; Steel torch 3 m Ø0.6+0.8 mm; CuSi torch 3 m Ø1.0 mm)
Auto pulse function that automatically adjusts pulse width to optimise arc stability and reduce spatter
Manual pulse and pulse‑based welding modes allowing controlled fusion on thin gauge panels (noted capability on 1.0 mm and 1.2 mm materials)
Four selectable MIG‑MAG welding modes: Standard Dynamic, Pulse, ModulArc and Manual
Synergic Intelligent mode that sets welding parameters after inputting wire diameter, material/gas and workpiece thickness
Expert interface offering full manual adjustment of all welding cycle parameters and an Easy interface for streamlined operation

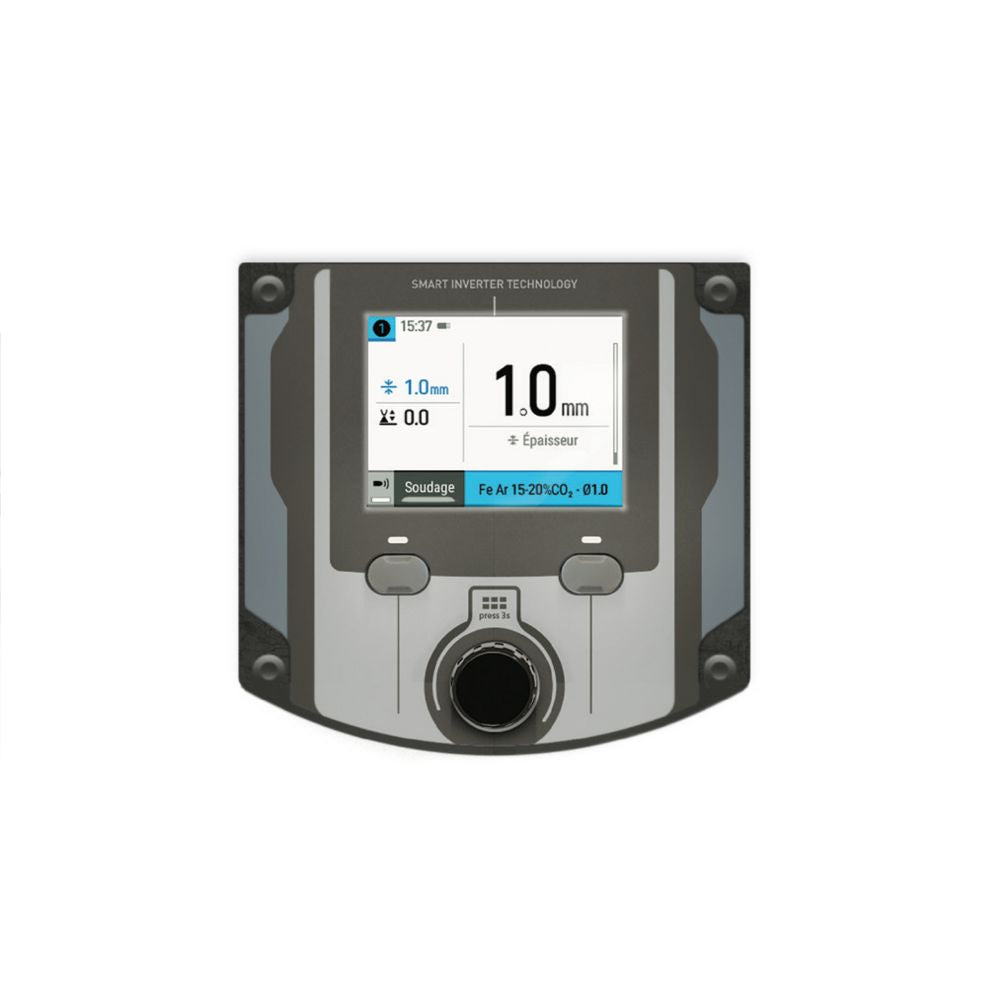

Multilingual 3.5inch colour HMI with configurable main parameter display (wire speed, current etc.) and glove‑friendly navigation
2T and 4T trigger modes for short welds or continuous operation respectively, with trigger behaviour selectable for operator preference

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Specification

Model

MIG 200 Digitally controlled

Rated Current

220 A

Input Voltage

230 V, 1-phase

PFC Input Voltage Range

185 - 265 V

Frequency

50

Fuse

16 A

Power Consumption

6.25 kVA

Wire Feed Speed

1 - 20 m

Wire Diameter Range (general)

0.6 - 1.2 mm

Wire Diameter Range (steel/stainless)

Ø 0.6 to 1.2 mm

Wire Diameter Range (aluminium)

Ø 0.8 to 1.2 mm

Wire Diameter Range (CuSi/CuAl)

Ø 0.8 and 1.0 mm

Wire Feed Unit

4-roller wire feeder with digital encoder

Number of Integrated Wire Feeders

3

Welding Modes

Standard Dynamic, Pulse, ModulArc, Manual

60% Duty Cycle

150 A

100% Duty Cycle

130 A

Open Circuit Voltage (U0)

67 V

Cooling System

50 W

Protection Class

IP23S

Standards Compliance

EN 60974-1 (40°C)

Dimensions (L x W x H)

86 x 63 x 93 cm

Weight

62 kg

Cable Length

10 m

Gas Flow

10 - 20 L

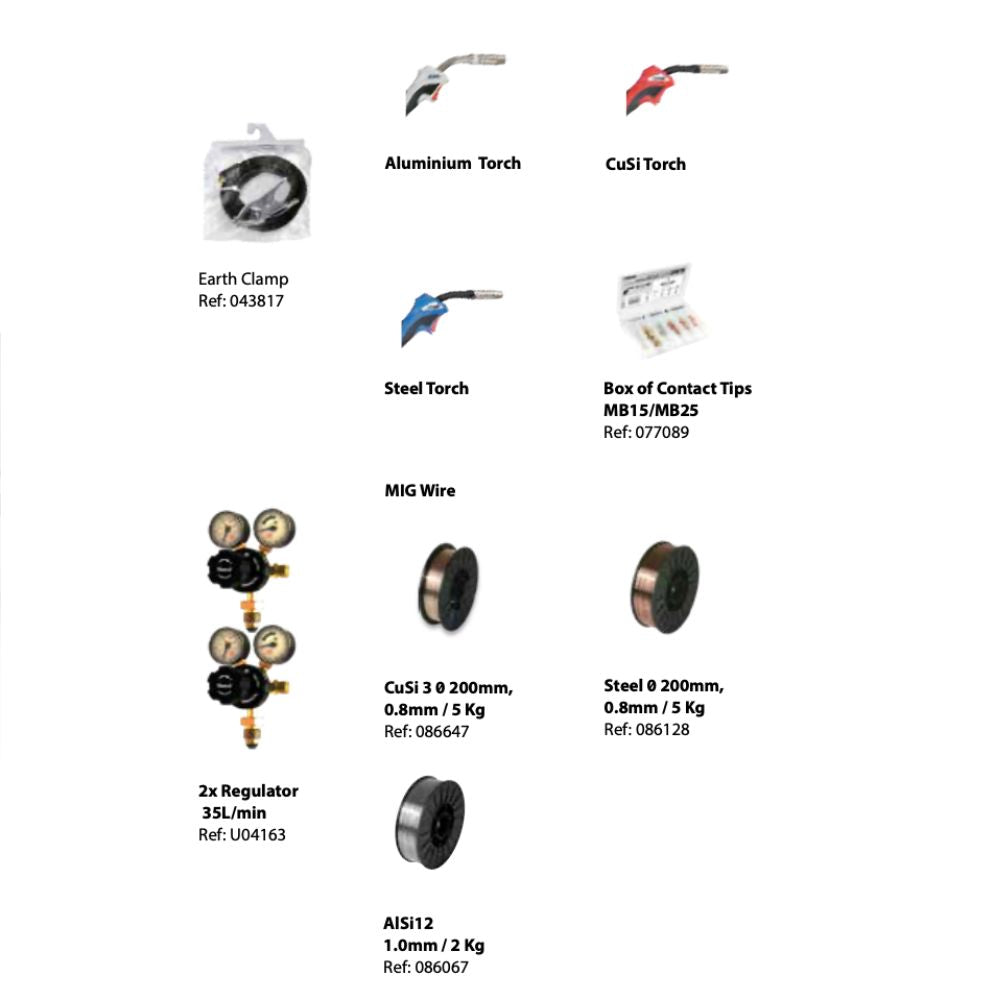

Supplied with

3 torches (Aluminium 3 m Ø 1.0 + 1.2 mm; Steel 3 m Ø 0.6 + 0.8 mm; CuSi 3 m Ø 1.0 mm), fixed earth clamp (3.5 m), support arm

Job Memory

Up to 200 welding programs

USB Updates

Complete machine and synergy updates via USB stick

Portability Function

User JOBS and machine configuration can be loaded/saved via USB stick

Gas Cylinder Support

Support for two gas cylinders up to 2x 4m3 (20 L)

FAQs

What materials and wire sizes can the P3 GYS Auto Pulsed MIG Welder handle?

The unit is designed to weld steel, stainless steel, aluminium and brazing alloys (CuSi/CuAl). Wire diameter ranges given in the technical data are 0.6–1.2 mm for steel/stainless, 0.8–1.2 mm for aluminium and 0.8–1.0 mm for CuSi/CuAl alloys.

What electrical supply and installation requirements should my workshop provide?

The machine runs from single-phase 230 V and is supplied with a 16 A fuse in the specification. It is fitted with PFC, so it accepts input voltages from 185–265 V. Power consumption is listed at 6.25 kVA and the open circuit voltage is 67 V. Check your site supply and distribution before installation and plan for a stable 230 V single-phase feed.

What is included in the complete pack and which consumables or torches are supplied?

The pack is supplied with three dedicated torches: an aluminium torch (3 m) suitable for Ø1.0 and Ø1.2 mm wire, a steel torch (3 m) for Ø0.6 and Ø0.8 mm wire, and a CuSi torch (3 m) for Ø1.0 mm wire. A fixed earth clamp (3.5 m) and a support arm are also supplied. The machine uses a 4-roller wire feed with a digital encoder; wire diameter range is 0.6–1.2 mm overall. Gas flow is specified at 10–20 L/min.

What duty cycle and workshop features should I expect for regular bodyshop work?

The welder is rated at 150 A for 60% duty cycle and 130 A at 100% duty cycle (EN 60974-1, 40°C). It has a 4-roller wire feeder for precise feeding, an IP23S protection rating for workshop environments, a 10 m cable length and weighs 62 kg (dimensions 86 x 63 x 93 cm). The unit offers pulsed welding modes capable of welding aluminium with very low spatter and contains job memory and USB update functions for recurring applications.
