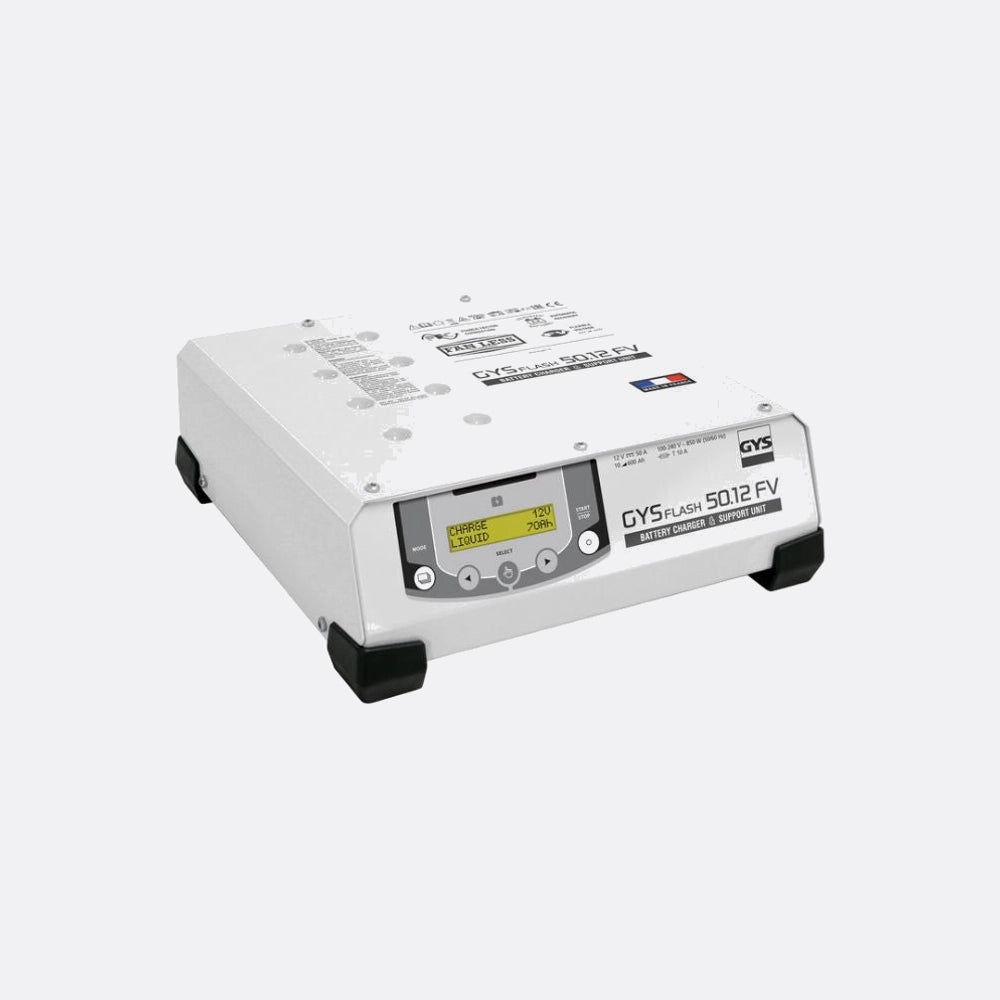

GYSFLASH 50.12 HF FV BATTERY SUPPORT UNIT

Price Exc Tax

GYS 50A LEAD-ACID/LITHIUM BATTERY CHARGER AND BSU

SKU  026056

The GYSFLASH 50.12 allows keeping a 12 V lead or lithium battery at a perfectly stabilised voltage during the diagnostic phases. It will deliver the best charging cycle recommended for the maintenance of the most advanced vehicles on the market. Its USB connectivity makes it 100% customisable.

AUTOMATIC CHARGE

• Extends the life and performance of Lead (gel, AGM, liquid, calcium, etc.) and Lithium (LFP) batteries.
Specific charging curve in 8 steps (lead battery) or 9 steps (lithium-iron-phosphate battery) without supervision. • Recovers deeply discharged batteries >2 V (automatic SOS Recovery).


ACCESSORIES AND DOWNLOAD

Gysflash 2.5m Texas Cables Fitted with 2 x 2.5 m - 10 mm² cables
DOWNLOAD Download

4 OPERATING MODES
• Charging: for 12 V Lead or Lithium (LFP) batteries from 5 to 1500 Ah.
• Diagnostics: supports up to 120 A for 12 V batteries in vehicles in the diagnostic phase and in maintenance workshops.
• Showroom: provides power compensation when using the electrical accessories of a demonstration vehicle. It also manages the optimal charging of the battery.
• Tester: Allows you to check the battery voltage, evaluate the starting system (starter + battery), and the condition of the vehicle’s alternator.

100% CONNECTED
• Add, delete or modify charging modes and profiles via USB.
• Import predefined configuration files adapted to the load trades.
• Retrieve the charging history and data on a USB stick and use them on a spreadsheet. • Connect additional modules (printer, barcode reader, etc.) via its dedicated module socket (SMC: Smart Module Connector).

TECHNOLOGIES & ADVANCED FUNCTIONS

FV Flexible Voltage, the charger operates with a supply voltage between 85 and 265 V.

The «Auto-Detect» function automatically starts a charge when a battery is connected to the charger.

«Auto-Restart» function in the event of a power failure with the memory of the settings.

Cable inspection and calibration

Locking avoids the risk of improper handling, ideal for garages and exhibition halls.

Up to 12 charging profiles are available, including the Easy profile for simplified charging suitable for all lead batteries.

Manufacturer: GYS
Part No. 026056
Supply: 220-240 V AC
Power: 850W
Charge: 50A

GYSFLASH 50.12 HF FV Battery Support
Fitted with 2 x 2.5 m - 10 mm² cables
