GYS Draw Aligner Car Body Pulling Arm

GYS DRAW ALIGNER CAR BODY PULLING ARM

£1,070.80
£1,070.80 £0.00
Skip to product information
GYS Draw Aligner Car Body Pulling Arm
  • GYS Draw Aligner Car Body Pulling Arm
  • GYS Draw Aligner Car Body Pulling Arm
GYS DRAW ALIGNER CAR BODY PULLING ARM

GYS DRAW ALIGNER CAR BODY PULLING ARM

£1,070.80
£1,070.80 £0.00
Shipping calculated at checkout.

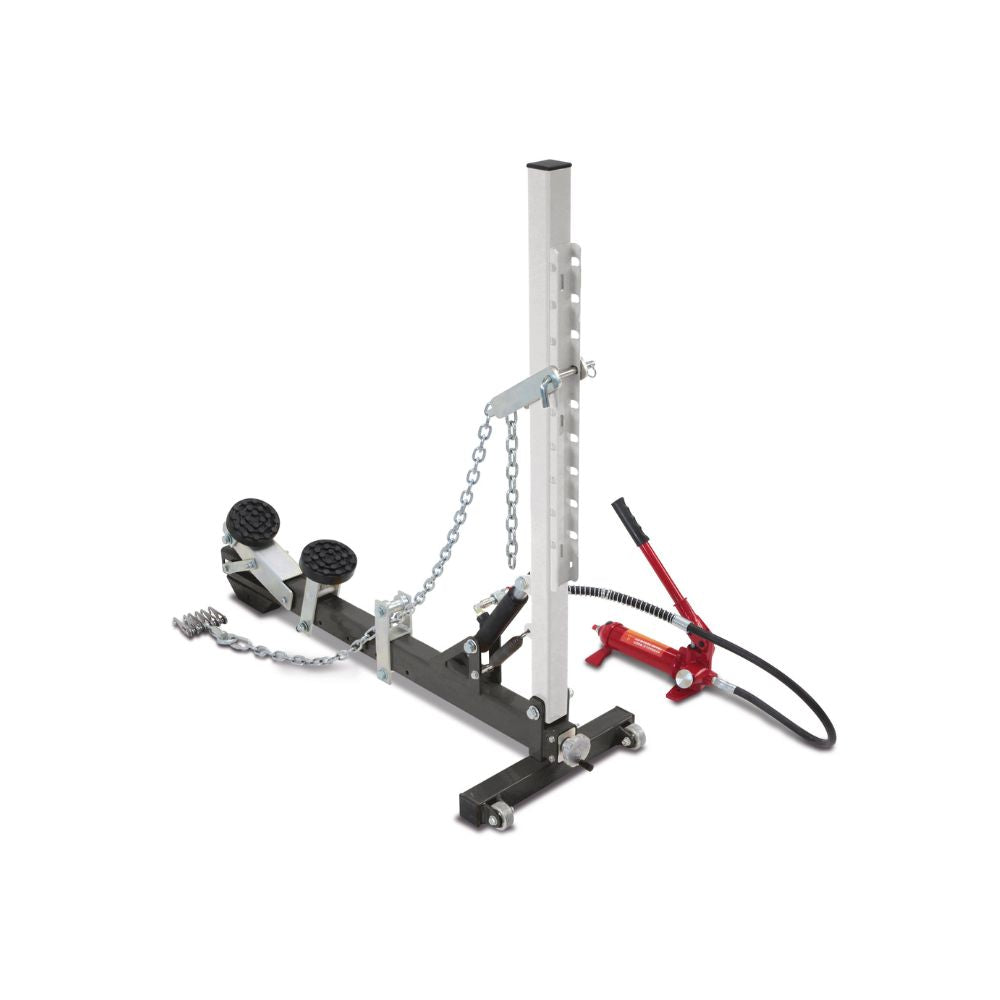

GYS DRAW ALIGNER CAR BODY PULLING ARM is designed for effective dent pulling in professional automotive bodyshops. With a robust hydraulic system, it streamlines the straightening of heavy impacts on metal sheets.

Key Features

  • Powerful hydraulic pulling force
  • Lightweight and portable design
  • Adjustable height and direction
  • Includes hydraulic pump and accessories
  • Optimised for big shock repairs
  • Supports various configurations easily
Technical Support

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Delivery + Returns

Returns details can be edited in the theme editor.
Warranty

Warranty

2 years

Package

Package

pulling arm hydraulic pump 1 chain with 6 hooks claw 2 rounds pads

Service engineers

Service

In-house engineers

Technical support

Support

0161 223 1843

Technical Features

  • High pulling capacity of 800 kg, suitable for various repair tasks.
  • Constructed from durable steel with gold zinc plating for enhanced longevity.
  • Lightweight design allows for easy mobility within the workshop, aided by two wheels.
  • Powerful hydraulic cylinder offers significant pulling force, outpacing manual tools.
  • Fully adjustable height and direction for versatile straightening configurations.
  • Ergonomic design improves user comfort and reduces strain during use.
  • Includes two round support pads for effective straightening of vehicle sills.
  • Straightforward operation with intuitive controls, similar to classic hydraulic jack systems.
  • Complete kit includes pulling arm, hydraulic pump, one chain with six hooks, and two round pads.
Bodyshop Equipment Engineers

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Specification

Pulling Capacity
800 kg (1800 lbs)
Frame Material
Steel with gold zinc plating
Weight
58 kg (128 lbs)
Dimensions
Height 1540-2780 mm, Width 580 mm, Depth 640 mm
Hydraulic System
Yes
Wheels
2 for easy movement
Accessories Included
Pulling arm, hydraulic pump, 1 chain with 6 hooks, 2 round pads
Manufacturers Warranty
Limited five (5) year warranty for registered customers
Country of Manufacture
Finland

FAQs

What is the pulling capacity of the GYS Draw Aligner Car Body Pulling Arm?
The pulling capacity is 800 kg (1800 lbs), making it suitable for a variety of repair tasks, including those requiring significant force.
Is the GYS Draw Aligner adjustable for different vehicle types?
Yes, the pulling arm is fully adjustable to accommodate various body types and repair needs, enhancing its versatility in different repair scenarios.
What materials is the frame of the pulling arm made from?
The frame is constructed from steel with gold zinc plating, providing durability and resistance to corrosion, which is essential for workshop environments.
Does the pulling arm come with a warranty?
Yes, the GYS Draw Aligner includes a limited five-year warranty for registered customers, ensuring long-term support for your investment.
