Gyspot Arcpull 200 - Aluminium Dent Repair Station

Gyspot Proliner Arcpull 200 - Aluminium Dent Repair Station

Name: Gyspot Proliner Arcpull 200 - Aluminium Dent Repair Station
Brand: GYS
SKU: U57470
Price: 2599.00 GBP
Availability: InStock

£2,599.00

Shipping calculated at checkout.

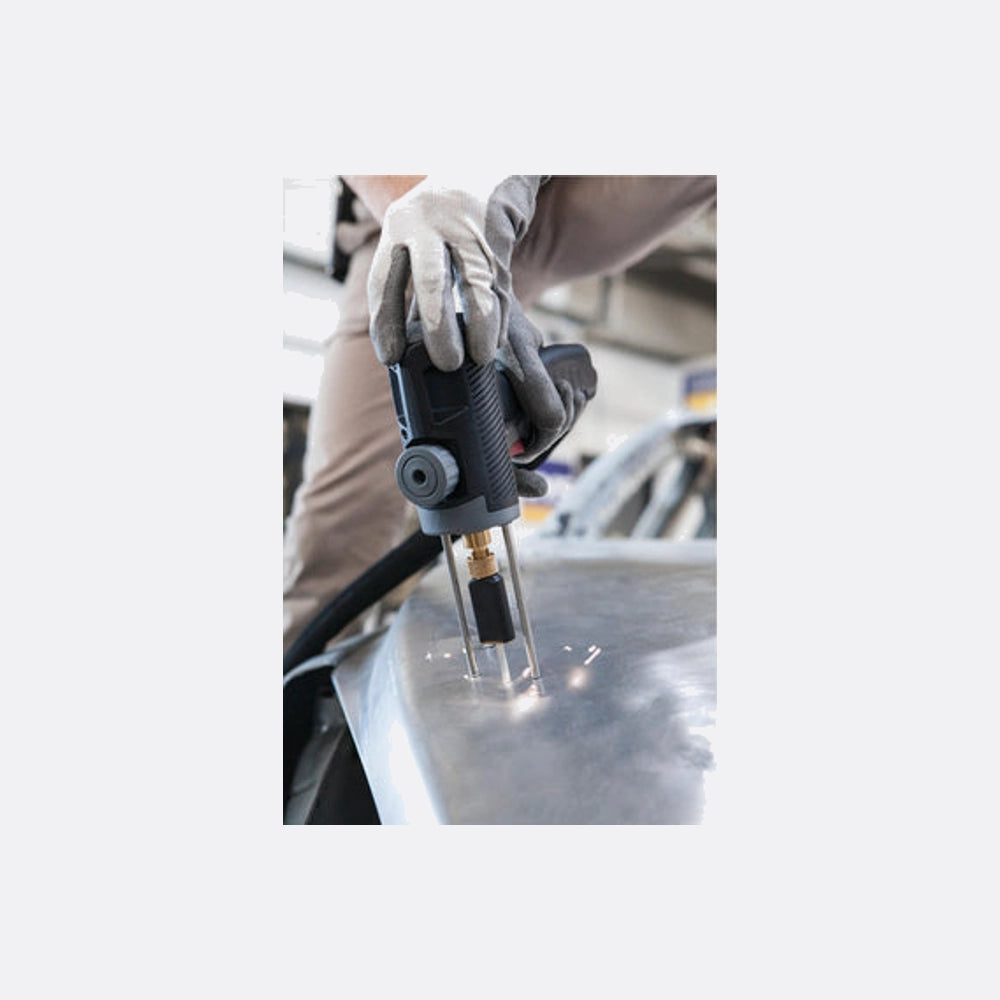

Gyspot Arcpull 200 - Aluminium Dent Repair Station is a drawn‑arc welder for aluminium vehicle panels, intended for professional dent pulling and controlled welding cycles. The Gyspot Arcpull 200 employs a digital linear‑motor gun and aluminium pulling tabs, enabling welding into panel creases and use with elongated pulling bars.

Key Features

Drawn‑arc process with gas protection
Gyspot Arcpull 200 digital gun
Synergic and manual modes
Two adjustable ground electrodes
Uses aluminium pulling tabs
Welds into panel creases

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230V

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Paul Jones says

This is a drawn-arc aluminium dent repair station for thin car body panels. I use it to weld aluminium pulling keys into panels and apply a pull using the included lifting rod or elongate bars, which is useful in creases and restricted areas. The gun’s high-precision linear motor with digital control and two independently adjustable ground electrodes give consistent control of the weld cycle; setting the process to match material and key type is important. A practical technical consideration is consumable selection — aluminium keys and the correct thread style are supplied — and ensuring every weld has good, stable grounding. In my experience a common workshop issue is mixing steel and aluminium consumables or poor key fitment, which reduces pull strength and increases rework. When configured and used correctly the drawn-arc process gives reproducible, deep repairs on aluminium with less post-repair preparation than capacitor-discharge machines.

Paul Jones, Technical Director

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Drawn arc welding process optimised for aluminium dent‑pulling on thin car body panels

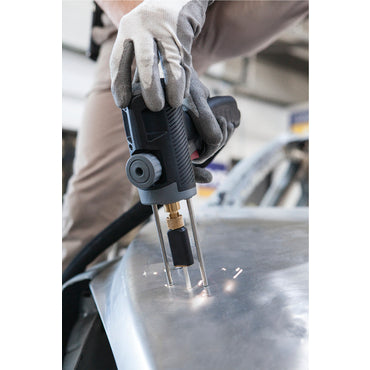

Automatic welding gun fitted with a high‑precision linear motor and digital control for refined weld/pull synergies

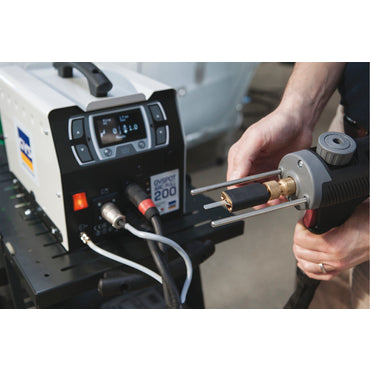

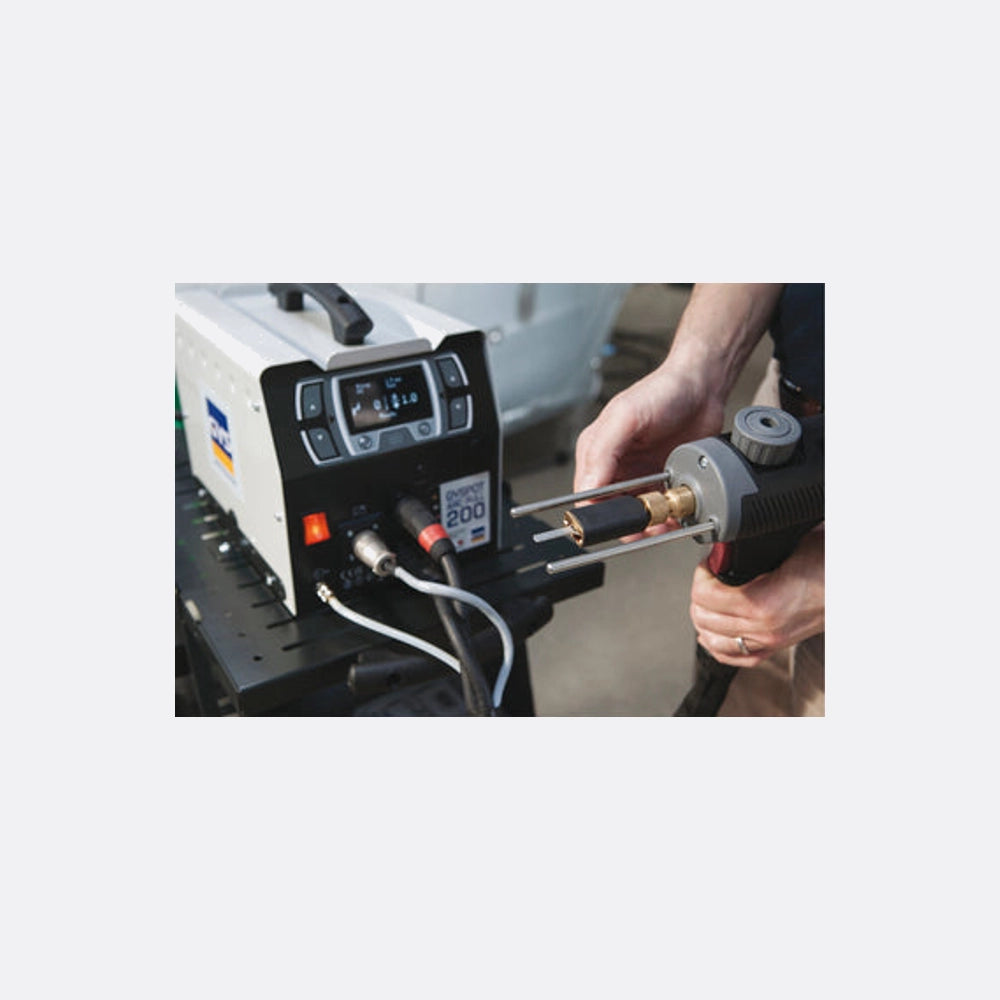

Digital interface providing intuitive navigation between welding modes and settings
Two welding modes: synergic mode with factory pre‑established programs for fast setup and a manual mode for personalised control
Gas‑protected drawn arc to prevent contamination of aluminium welds
Deep repair capability for substantial dent restoration
Closer key fitment to provide stronger pulling force and access into panel creases

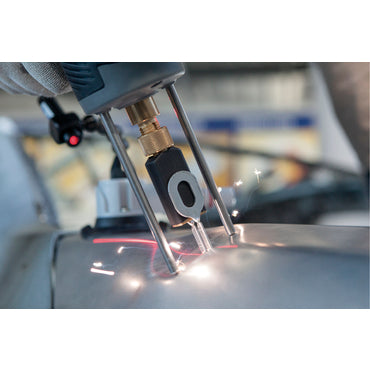

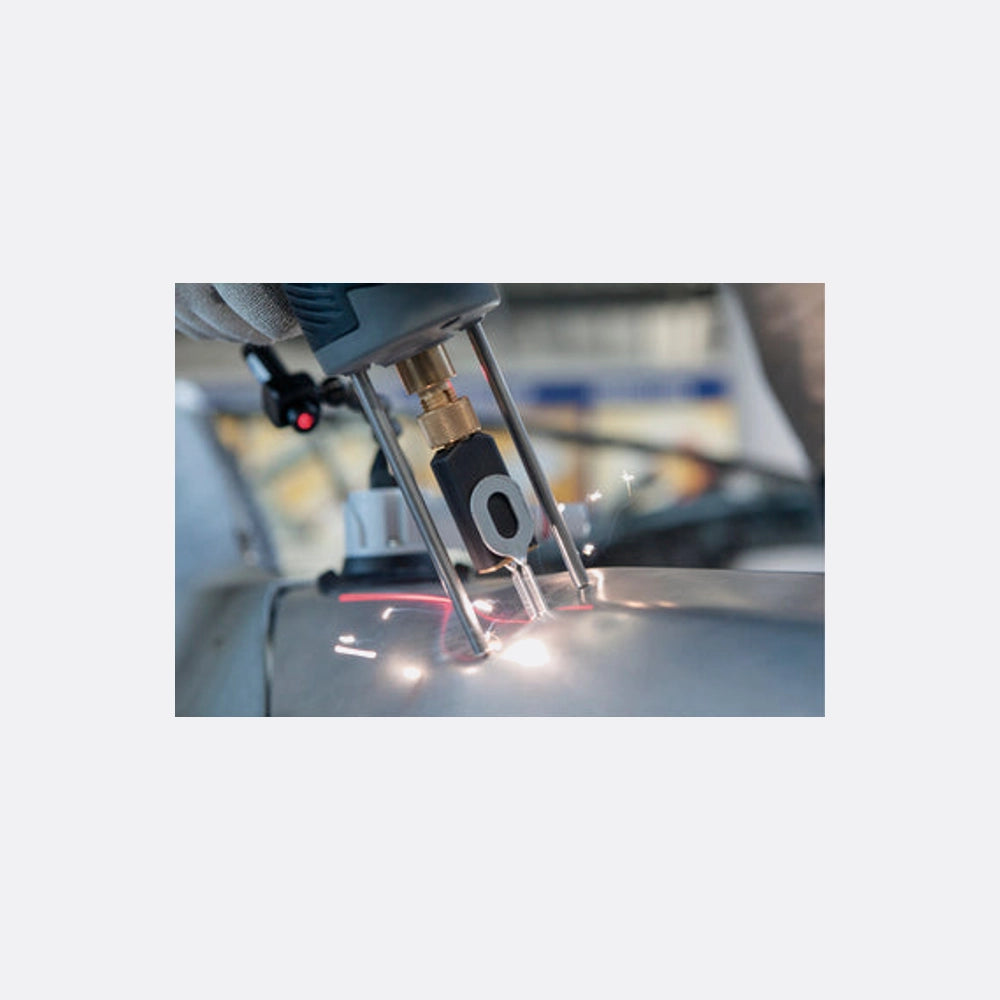

Uses aluminium pulling tabs compatible with the same design as steel tabs, enabling the use of elongated pulling bars and welding into creases

Specification

Manufacturer

GYS

Model

Gyspot Arcpull 200

Reference

057470

MPN

057470

SKU

U57470

Barcode

3154020028340

Supply Voltage

230V

Supply

110-220V

Frequency

50/60Hz

Fuse

16A

Welding Current Range

10-200A

Apparent Power

7.4kVA

Gun Cable Length

4 m

Standard

EN 60974-1

Made in

FRANCE

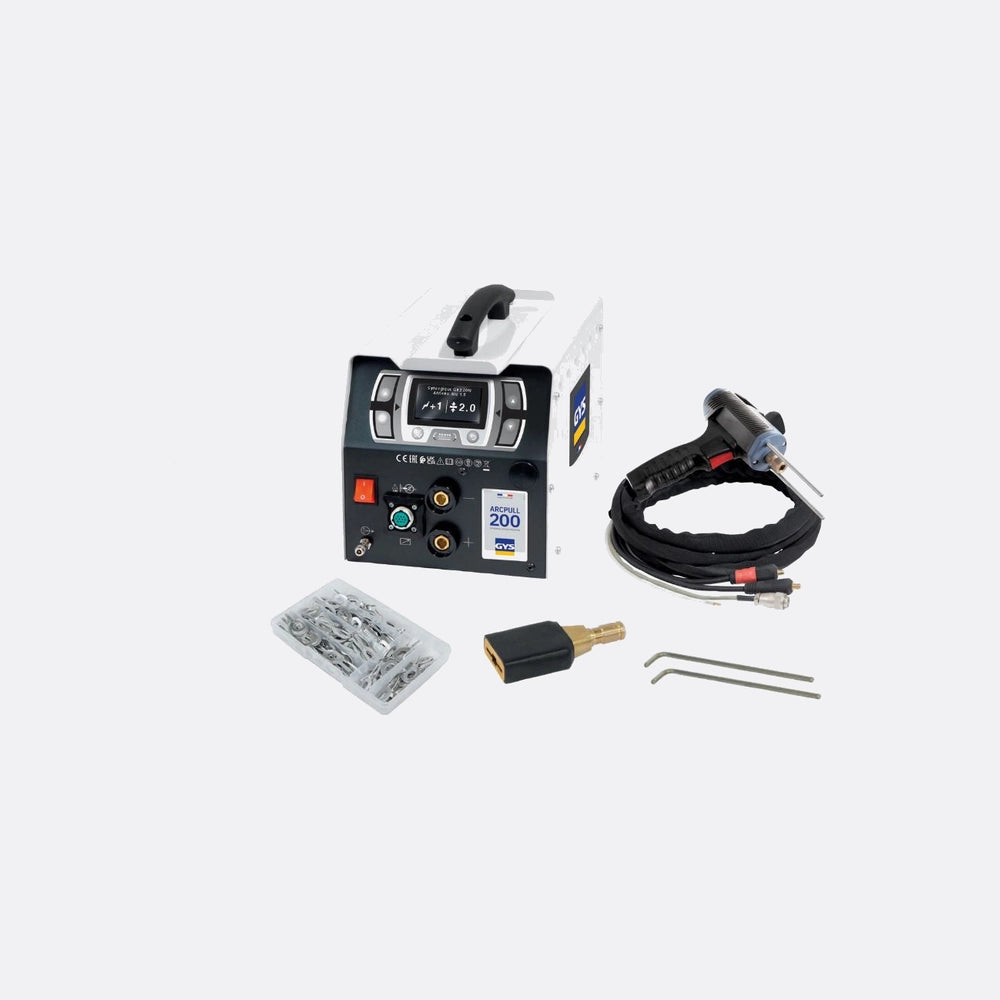

Included

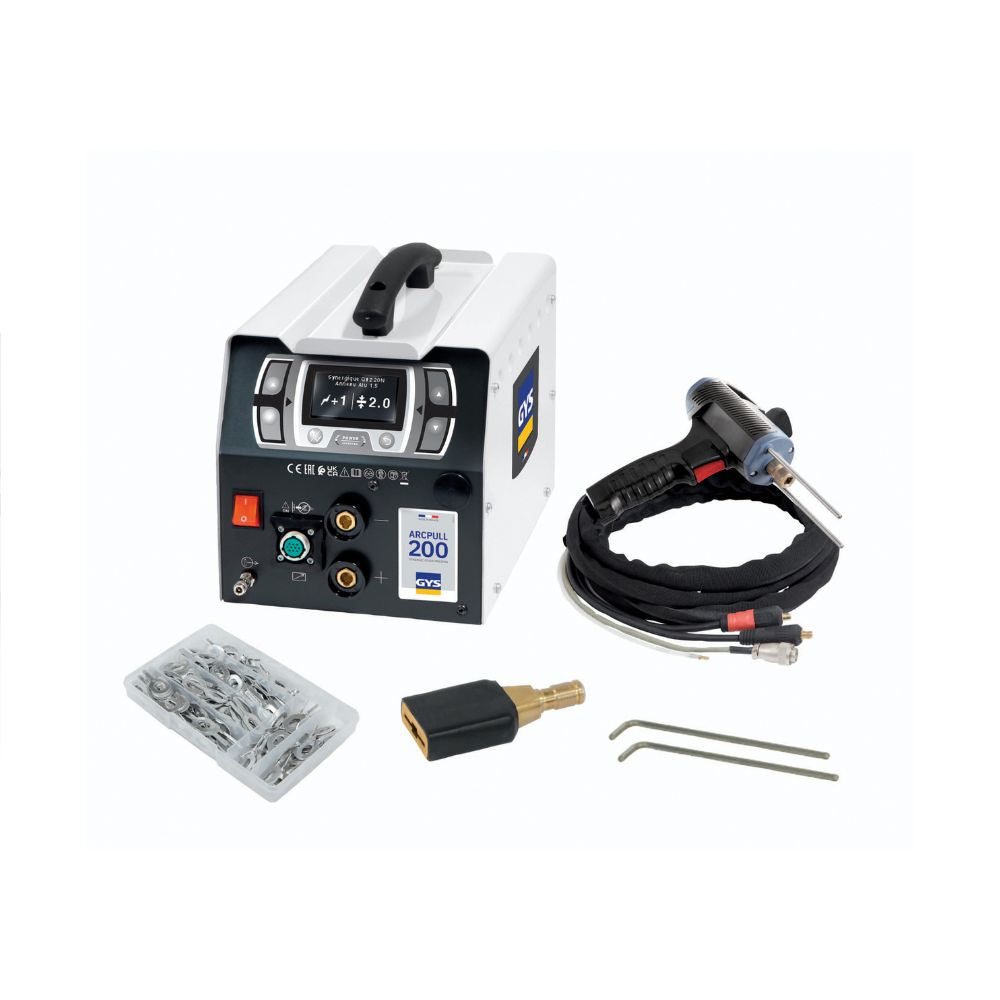

Automatic gun with 2 Ground Electrodes; Aluminium Keys consumables box 1,5 mm; Lifting rod

Max stud diameter (steel)

Ø 6 mm

Max stud diameter (aluminium)

Ø 6 mm

Dimensions (product)

20,5 x 25 x 33 cm

Weight (product)

11,9 kg

Dimensions (box)

48 x 27,7 x 36 cm

Weight (box)

13,8 kg

FAQs

What welding process and modes does the Gyspot Arcpull 200 use for aluminium dent repair?

The unit uses drawn arc welding developed specifically for thin car body aluminium. It offers two welding modes: a synergic mode with factory pre‑established programmes for fast set‑up and a manual mode for personalised settings. The gun features a high‑precision linear motor with digital control and two independently adjustable ground electrodes to improve cycle control and process stability. Drawn arc advantages listed for aluminium work include gas protection to prevent contamination, deeper repair capability, closer key fitment, reduced post‑repair preparation and no impact to the reverse side of the panel.

What are the electrical requirements for the machine?

The technical data lists supply as 110–220V with a 16A fuse and an output range of 10–200A. The product record also shows a 230V single‑phase supply. Check the supplied specifications on your order and confirm your workshop supply and fuse arrangement prior to installation.

What is supplied with the Arcpull 200 and what accessory options are shown?

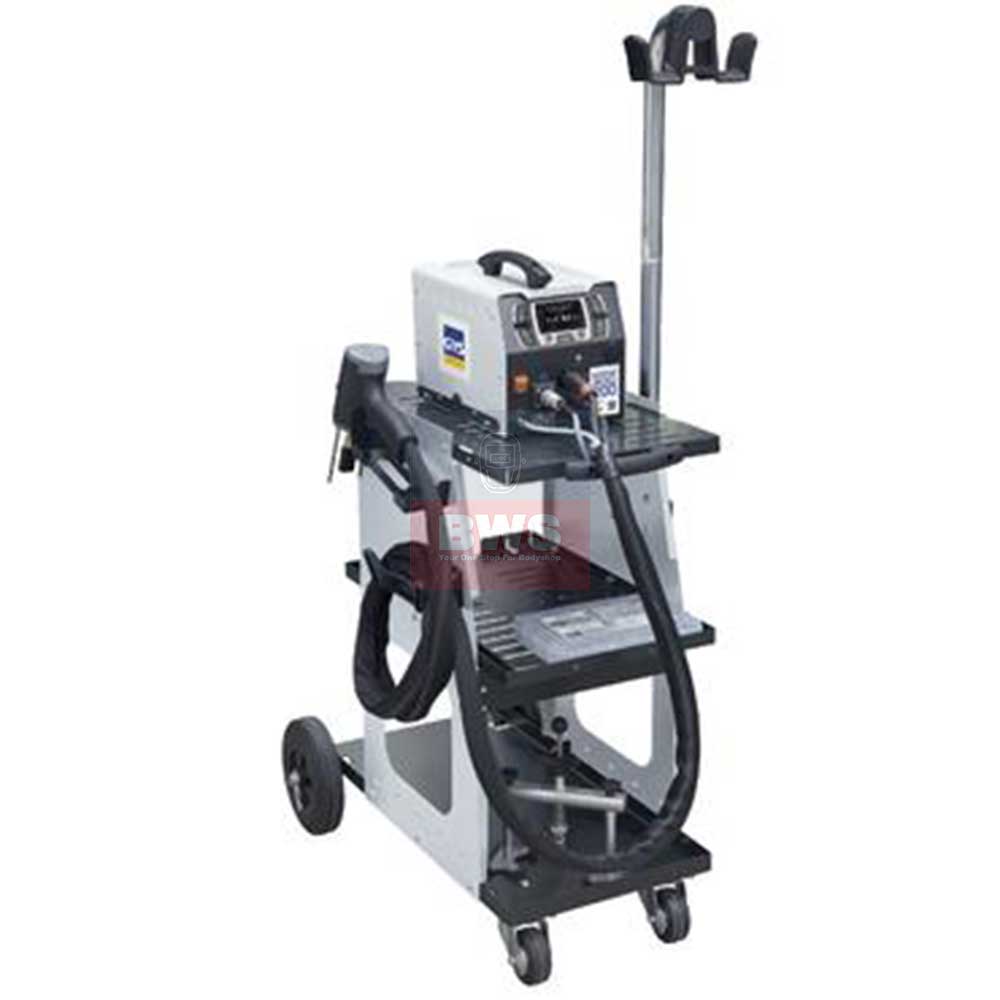

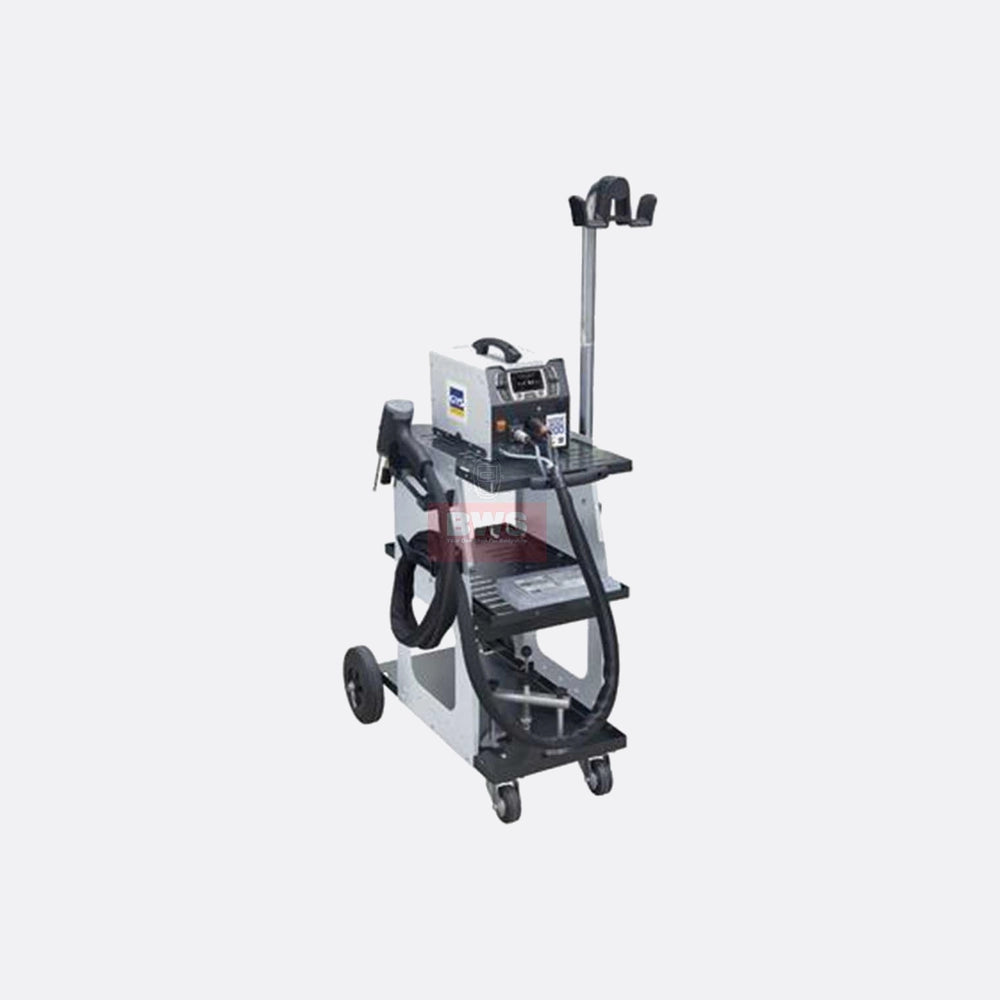

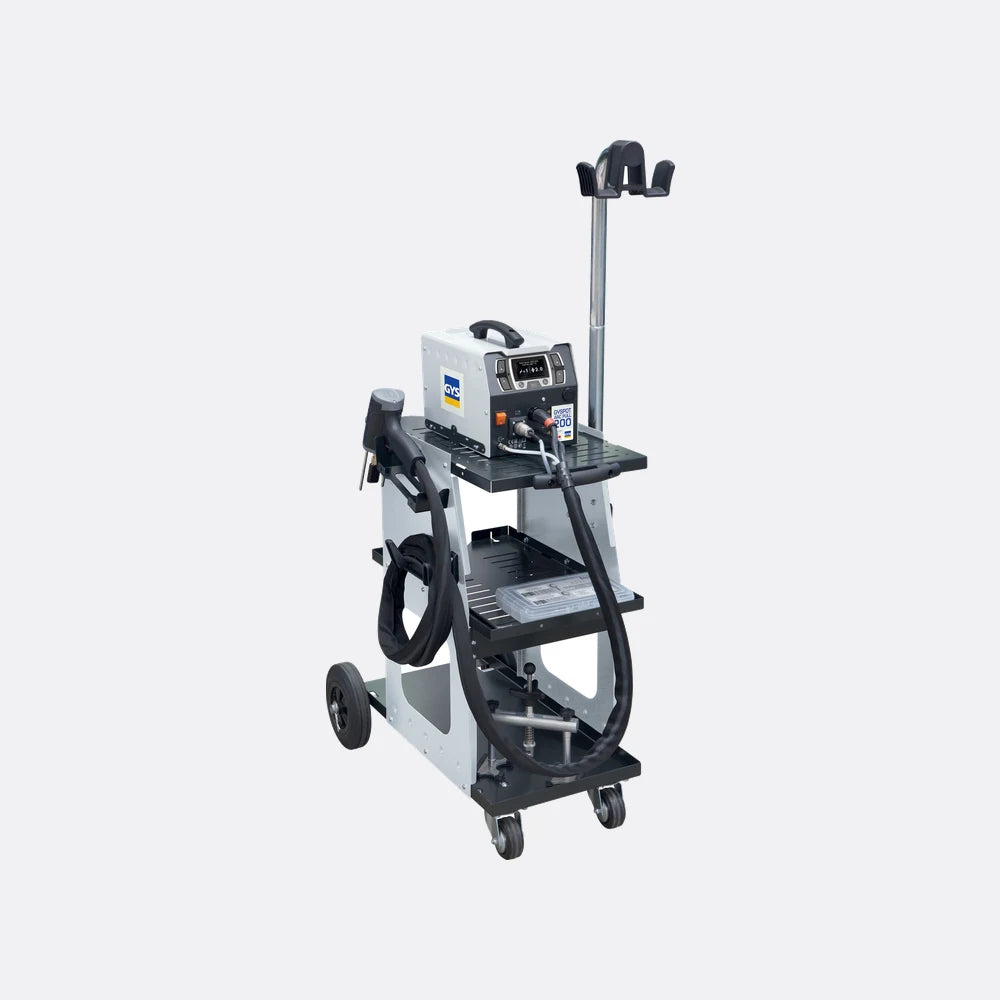

Included items shown in the data sheet are the automatic gun with two ground electrodes, an aluminium keys consumables box (1.5 mm) and a lifting rod. Listed optional accessories and consumables include aluminium and steel threads consumable boxes (refs 059436 and 059443), additional aluminium key packs and special/twisted key sets (multiple refs), trolleys (refs 037489 and 051348), a DentStation (ref 056848), bottle support (ref 059665) and a manometer (ref 041622). Confirm the exact contents and any options when ordering.

What consumables and stud sizes does the Arcpull 200 accept for dent pulling?

The machine uses aluminium pulling tabs (keys) similar to those used for steel dent pulling. Aluminium keys are available in specified sizes including 1.0 mm (ref 059412) and 1.5 mm (ref 059429), with a range of special and twisted key packs referenced in the data. The unit is stated to weld steel studs and aluminium studs up to Ø6 mm.
