FRONIUS VIZOR AIR 3 ERGO CONNECT

£1,299.00

THE WORLDS FIRST BLUETOOTH WELDING HELMET

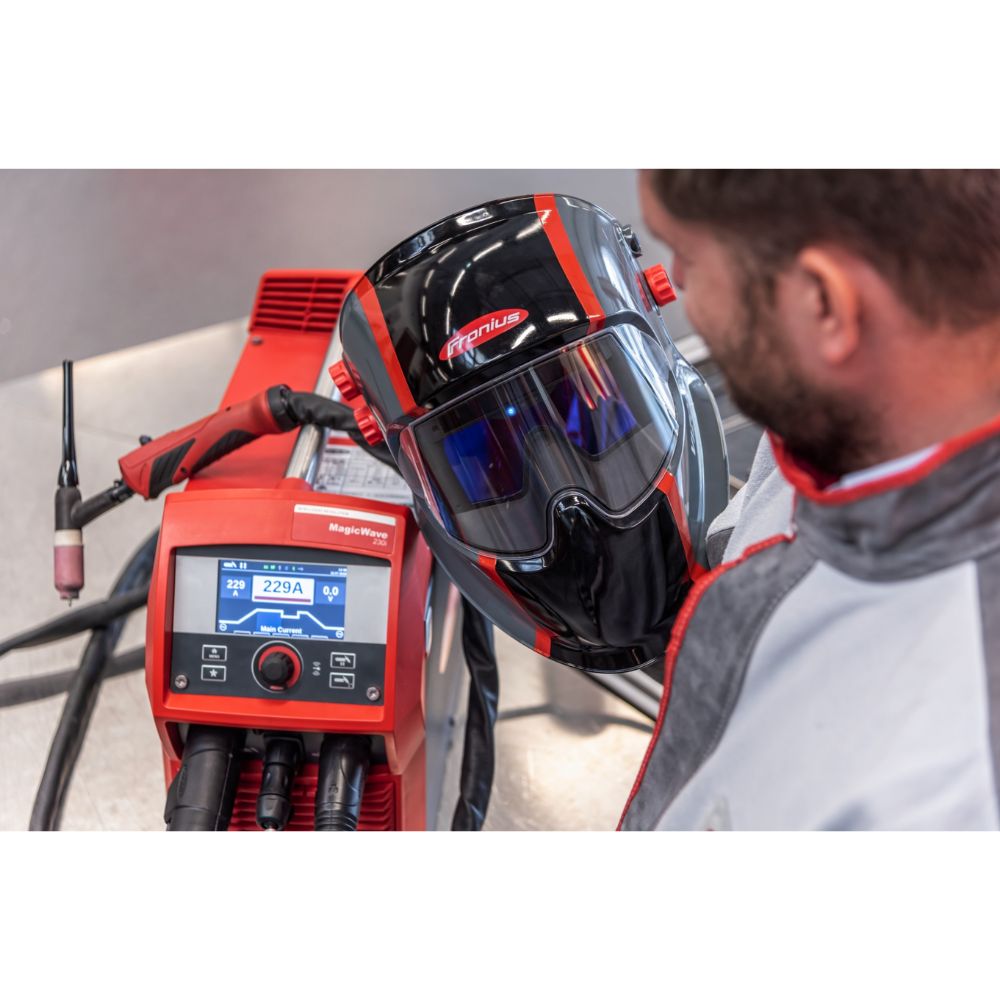

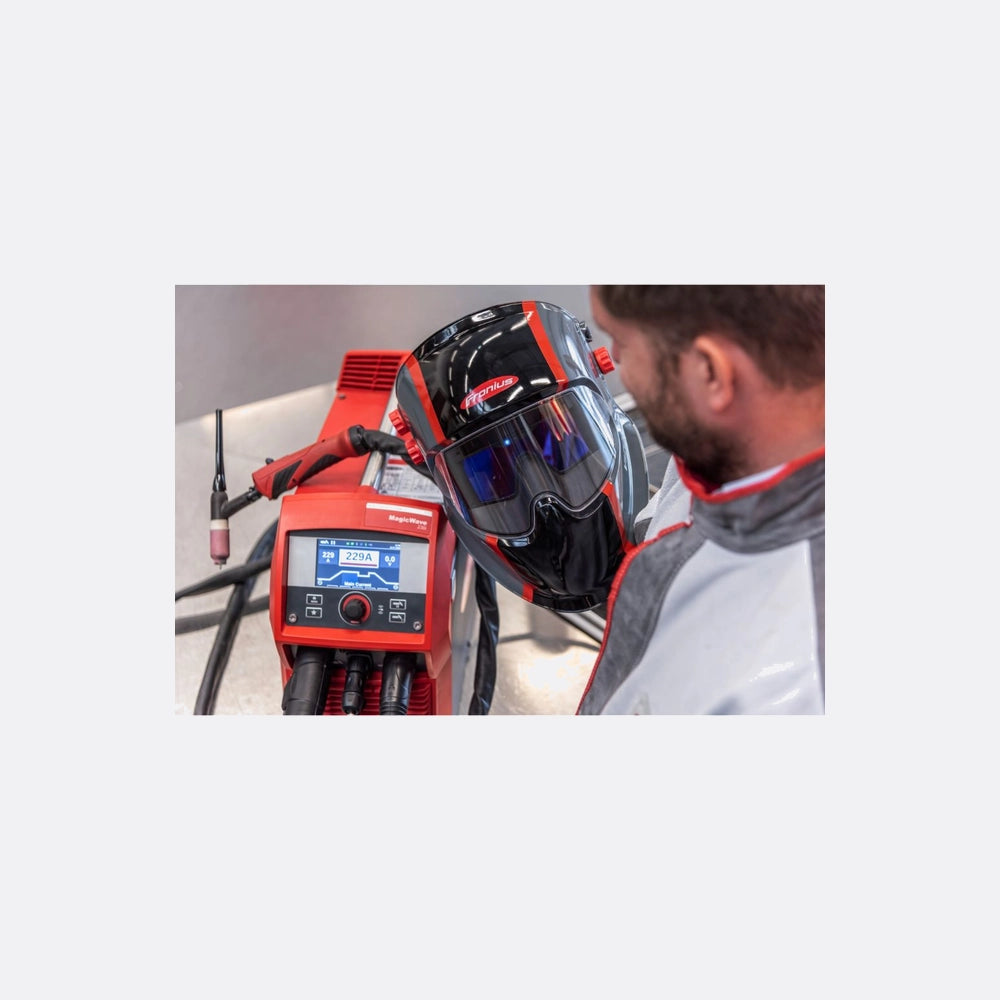

Due to the Bluetooth ® technology, the welding helmet can be darkened by the welding machine even before the arc is ignited.

This additional function is currently supported by FRONIUS MagicWave 230i / TransTig 230i welding devices and the TPS/I family (320i-600i). The welder is thus protected from the short brightness flash during ignition.

The unwanted opening of the cartridge during welding is also protected by the Bluetooth ® technology.

  • The nose cut shape of the cartridge offers an extremely large field of view.
  • Automatic adjustment of the shade level in the range between 5 and 12
  • Brightness level 2.5 in open mode
  • Use as grinding mask in connect-mode
  • Low energy consumption due to rechargeable lithium-ion battery (no battery)
INCLUDED IN THE SCOPE OF SUPPLY:
  • Welding helmet complete
  • one front cover lens
  • one nose protection pad
  • one USB-C cable

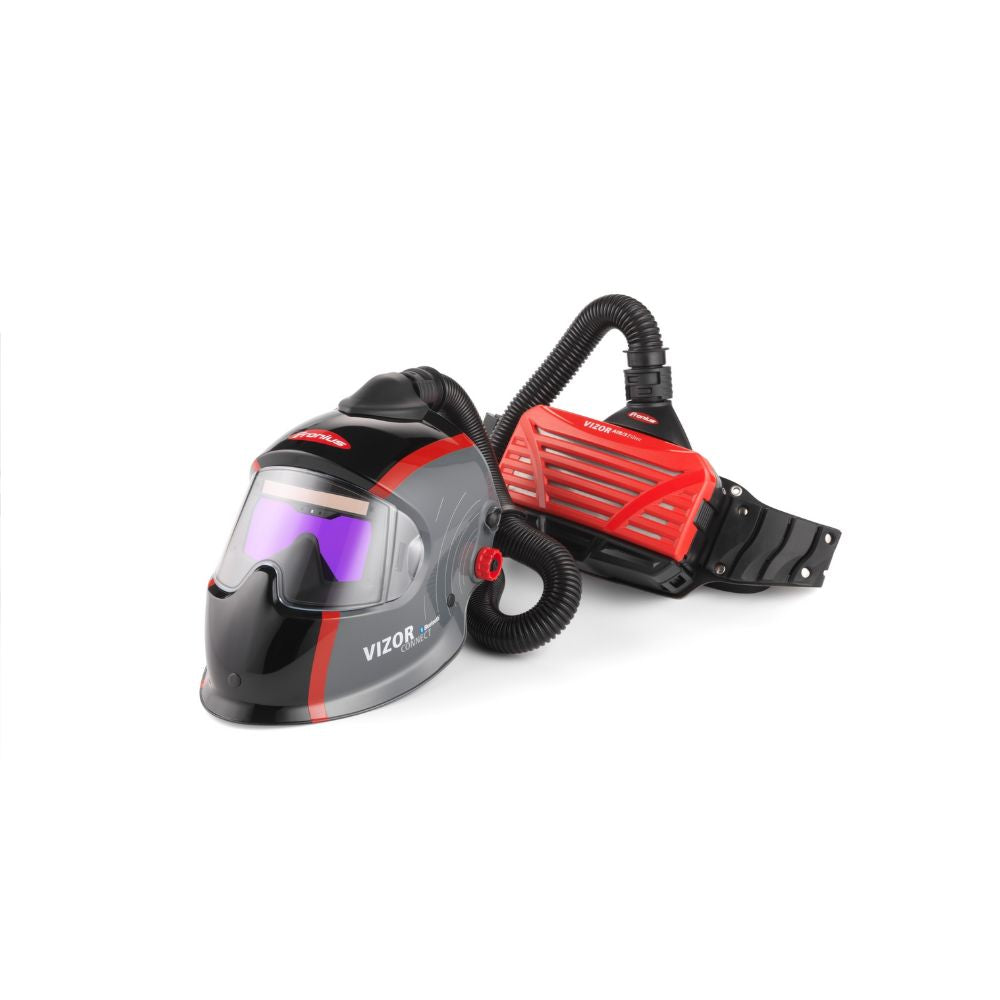

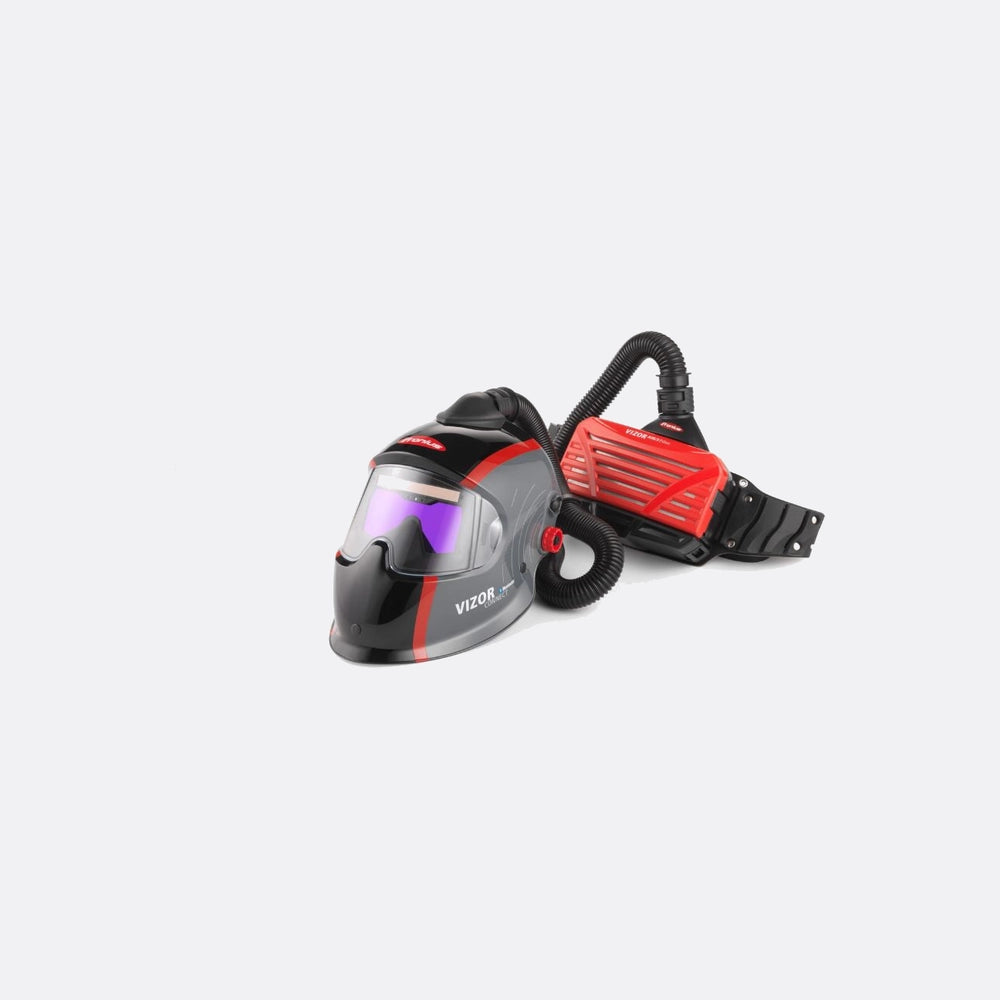

ERGO AUTOMATIC EYE PROTECTION WITH FRESH-AIR SYSTEM

A unique air-flow guiding system within the mask enables continuously-adjustable air distribution between the forehead and the breathing zone. Vizor Air/3 is, therefore, a truly „clean“ solution for the user, as 99.8% of particles are filtered and the system also provides pleasant cooling for the welder.

Thanks to the (long life) lithium-ion battery, usage time of up to 20 hours can be achieved.

An acoustic and visual alarm warns users of low batteries and when the filter is blocked or missing. An adjustable leather strap with side stabilisers and a flexible air hose at the back ensure optimum wearer comfort, as well as an optional 4-point harness (included in Ergo version).

The system is used wherever the environmental conditions do not allow for optimum extraction of the welding fumes, such as during flexible welding tasks, work performed in confined spaces and heavily contaminated ambient air.

Scope of supply - set: welding helmet (depending on the type), fan-filter unit cpl., flexible hose, battery charging system, hard case and operating instructions.

Scope Of Supply Fan-Filter Device (42,0510,0176):  fan-filter unit cpl.,  flexible hose,  battery charging system,  hard-top case and operating Instructions

TECHNICAL DATA

Manufacturer Fronius
Part No. 42,0510,0314
Helmet Weight 693g
Weight Air Fan 1978g
Filter System TH3RP R SL pre-filter and particle filter
Flow Rate 150-250L/min
