Fronius TransSteel 2200C MultiProcess-MultiVoltage
£3,000.00
Sale price
£3,000.00
Regular price
£1,999.00
Skip to product information

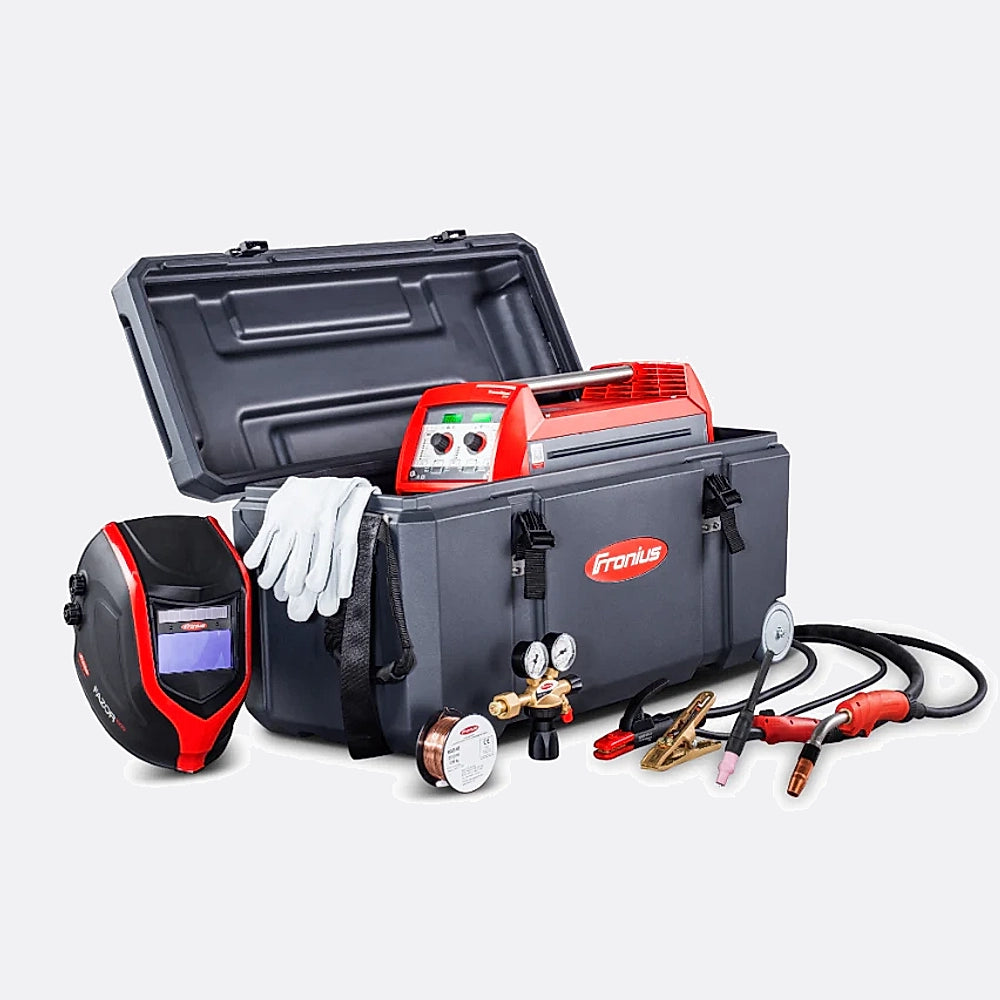

Fronius TransSteel 2200C MultiProcess-MultiVoltage
£3,000.00
Sale price
£3,000.00
Regular price
£1,999.00
Shipping calculated at checkout.
The Fronius TransSteel 2200C MultiProcess-MultiVoltage is a compact, professional-grade multiprocess welder engineered for demanding workshop and industrial fabrication environments.
Key Features
- MIG/MAG, MMA, and TIG capable
- Wide input voltage compatibility
- Robust steel-housed construction
- Intuitive digital control interface
- Portable, space-saving compact design
- Consistent arc performance across processes
Technical Support
Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.
Delivery + Returns
Returns details can be edited in the theme editor.
Technical Features
- Technical Features
- True MultiVoltage Flexibility: An automatic voltagesensing circuit detects whether 110 V or 240 V singlephase power is connected and adjusts internal parameters accordingly, with no manual switching required. This makes the TransSteel 2200C ready for generator use on remote sites, domestic garage supplies, or standard workshop circuits without any modification.
- ThreeinOne Process Capability: Switching between MIG/MAG, MMA (stick), and TIG liftarc processes is achieved through the frontpanel mode selector. Each mode stores its own parameter set, so switching workflows midsession does not require resetting all variables from scratch, saving considerable setup time across multiprocess jobs.
- Fronius Inverter Arc Technology: The highfrequency inverter core operates at elevated switching frequencies to produce an exceptionally stable, lowspatter arc across all welding modes. This translates to cleaner welds on structural and mild steel, reduced postweld grinding, and consistent penetration even at the lower end of the current range.
- Synergic MIG/MAG Control: Selecting a wire diameter and material type automatically calculates a matched voltage and wirefeed speed starting point via Fronius synergic lines. The operator can then finetune arc length and dynamics with a single correction dial, dramatically reducing the time needed to dial in optimal parameters for new material thicknesses.
- Thermal Overload Protection with AutoRestart: An internal thermal sensor continuously monitors component temperatures. If the duty cycle limit is approached, the unit alerts the operator via the frontpanel indicator and temporarily suspends output. Once temperatures return to safe operating levels the machine automatically reenables welding output, protecting internal components without requiring a manual power cycle.
- IP 23Rated Steel Enclosure: The robust, powdercoated steel housing meets IP 23 ingress protection, providing resistance to solid objects larger than 12.5 mm and protection against water spray at an angle up to 60° from vertical. Combined with a recessed torch connection and cable strain relief, the design is purposebuilt for the rigours of onsite construction and fabrication environments.
Specification
FAQs
What welding processes does the Fronius TransSteel 2200C MultiProcess-MultiVoltage support?
The Fronius TransSteel 2200C MultiProcess-MultiVoltage supports three distinct welding processes: MIG/MAG (Gas Metal Arc Welding), MMA/Stick (Manual Metal Arc), and TIG Lift-Arc (Tungsten Inert Gas). All three modes are selectable directly from the front panel, and each retains its own parameter memory. This means a fabricator can weld structural mild steel with MIG, switch to a stick electrode for a site repair in a tight corner, and then perform a precise TIG pass on a joint — all with a single compact machine. The synergic MIG/MAG mode further simplifies setup by automatically calculating voltage and wire-speed starting points when the operator inputs wire diameter and material type.
Can the Fronius TransSteel 2200C run from a generator or a standard household power outlet?
Yes. The MultiVoltage feature is one of the defining advantages of the TransSteel 2200C. The machine automatically detects and accepts either 110 V or 240 V single-phase input power with no manual voltage selection or link-bar adjustment needed. At 240 V it draws approximately 19.3 A, which falls within the capacity of a standard Australian 20 A circuit. At 110 V it draws up to 32 A, making it suitable for larger site generators. As a general rule, pair the welder with a generator rated at least 6.5 kVA to ensure stable output and avoid voltage drop issues under load. Always confirm the generator's output voltage regulation before use.
What is the duty cycle of the TransSteel 2200C and what does it mean in practical terms?
Duty cycle is the percentage of a 10-minute period during which a welder can operate continuously before requiring a cool-down pause. The Fronius TransSteel 2200C is rated at 25% duty cycle at its maximum 220 A output (measured at 40 °C ambient temperature), meaning it can weld for roughly 2.5 minutes in every 10. At a more moderate 160 A the duty cycle rises to 60% (6 minutes in 10), and at 125 A it achieves a full 100% continuous rating. In everyday fabrication and construction work, most operators do not weld at maximum amperage continuously, so the practical duty cycle experienced in the field is typically much higher than the worst-case figure suggests. The built-in thermal protection system will alert you before any overload can cause damage.
What consumables and accessories does the Fronius TransSteel 2200C use, and are they easy to source in Australia?
The TransSteel 2200C accepts industry-standard MIG/MAG consumables, including solid wire from 0.6 mm to 0.9 mm diameter and flux-cored wire at 0.9 mm, wound on spools up to 5 kg (200 mm). The machine uses a standard Fronius-compatible Euro (Binzel-style) torch connector, so a wide range of aftermarket and genuine Fronius MIG torches, contact tips, liners, and shrouds are readily available across Australian welding suppliers. For MMA welding, standard 2.0 mm to 3.2 mm electrodes suited to the amperage range are used. TIG welding requires a standard lift-arc TIG torch connected to the negative output terminal and a suitable shielding gas supply. BWS stocks a comprehensive range of compatible Fronius genuine accessories and consumables, and our team can advise on the correct specification for your application.
MIG Welding Information
