FRONIUS IWAVE 300I DC TIG WATER COOLED

Price Exc Tax

MASTER THE ART OF WELDING WITH THE FRONIUS IWAVE 300I DC TIG

Get Your Fronius professionally installed by one of our engineers!  Fronius TIG welders are renowned worldwide for their cutting-edge technology and innovation, and the iWAVE 300I is no exception. It's designed to provide precise and flawless welds, and is perfect for production environments where quality welds are needed, first time, every time!  Making  the Fronius IWave 300I an indispensable tool for welders of all levels.

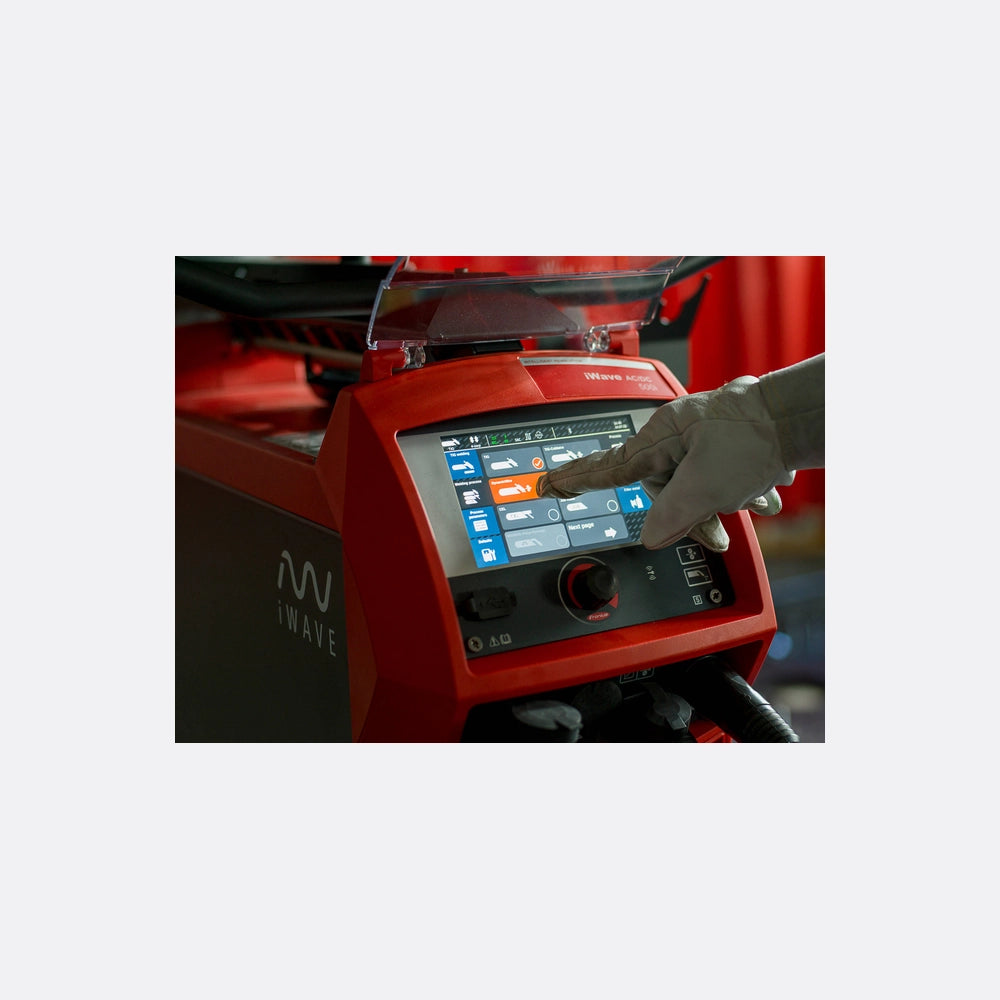

The 4.3" colour plain-text display offers immediate graphic feedback, ensuring you have complete control over your welding parameters. With support for over 30 languages, it's accessible to welders around the globe. All essential parameters are conveniently located on the first menu level, making it easy to operate, even with gloves on.

This product is professionally installed on your premises (UK Only) by one of our technical support engineers.

Why Buy From BWS?

  • Technical Support
  • Service Engineers
  • Business Account ✓

Download Brochure









WHY BUY YOUR FRONIUS FROM US.

BWS are an approved support centre for all Fronius equipment and with over 25 years experience you can be assured one of our mobile technical, or telephone engineers is always on hand with support. WE pride ourselves with our service hence we offer a free PRO installation service by qualified engineers at your premisis nationwide

Automatic Tungsten Electrode Tip Shaping in AC Mode.
A special clamping function with the help of pulses allows you to clamp two materials very quickly and efficiently. In addition to this function, thin materials can be gripped without using an additive, which was practically impossible until now.
Pulse welding with a frequency of up to 10kHz
4.3" color display
Intuitive user interface in Latvian
The favorite function button allows the operator to quickly access and change the parameter of his choice
High frequency ignition function (Excellent ignition characteristics due to high no-load voltage)
Touch ignition can be used where high frequency ignition is not allowed or is not possible
Bluetooth, WLAN and NFC for communication with peripheral devices (welding mask, remote control,...)
Multilock system burners with replaceable burner tips
Ability to store up to 999 welding programs
USB connection for software update

Specification
Mains voltage 3 x 400 V
Mains voltage tolerance +/-15 %
Welding current / Duty cycle [10min/40°C] 300A / 40%
Welding current / Duty cycle [10min/40°C] 260A / 60%
Welding current / Duty cycle [10min/40°C] 240A / 100%
Open-circuit voltage 96 V
Degree of protection IP23
Length 706 mm
Width 300 mm
Height 740 mm
Weight 64 kg

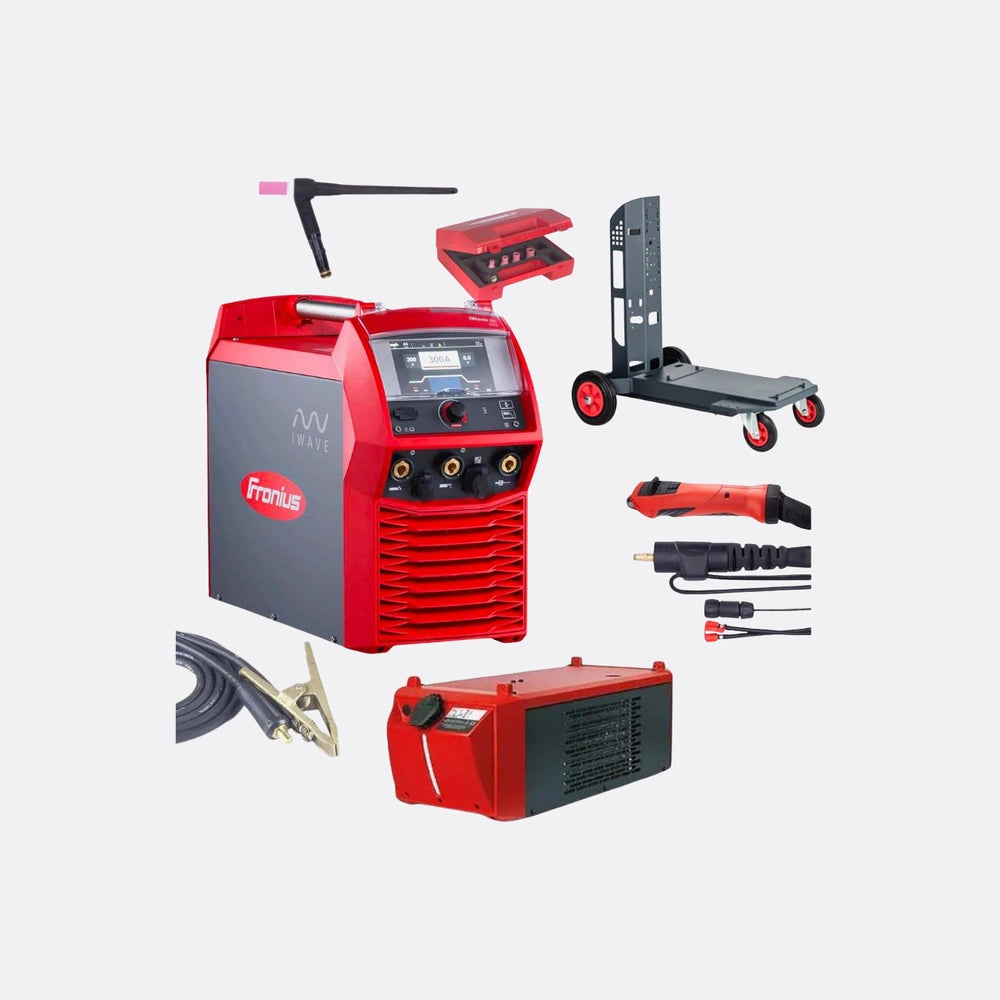

iWave 300i DC Power Source
OPT/i Jobs
OPT/i Puls Pro
OPT/i CycleTIG
NFC/BLE/WIFI24 Inside & 4,100,811,IK OPT/i TPS dust filter /IK
CU 1100i Cooling Unit
TU Car 4 Pro - 4 Wheel Trolley
THP 300i W ML/F++/UD/Le/4m/LED TIG Torch Lead
TTB 300A W ML/70°/L65 TIG Torch Head
Ground Cable 70mm 5m
RC TIG Bluetooth Foot Pedal
