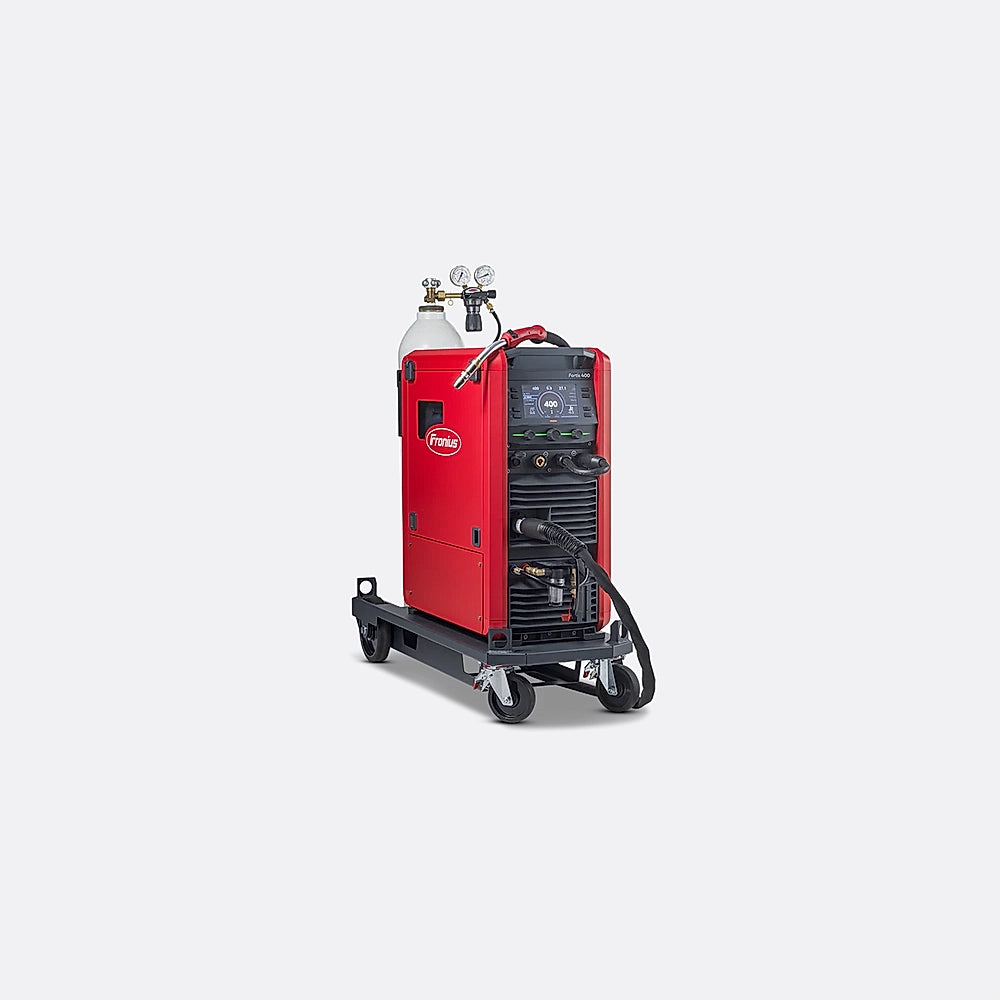

Fronius Fortis 400c Water Cooled Mig Welder Package
The Fronius Fortis 400c Water Cooled Mig Welder Package is a high-performance, professional-grade MIG welding system engineered for demanding workshop and industrial fabrication environments.
Key Features
- Water-cooled torch for sustained output
- High-duty cycle professional performance
- Advanced Fronius inverter technology
- Complete ready-to-weld package
- Precise arc control and stability
- Suitable for heavy fabrication work
Technical Support
Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.
Delivery + Returns
Returns details can be edited in the theme editor.
Technical Features
- Technical Features
- Advanced Inverter Technology: The Fortis 400c utilises a highfrequency inverter power source that delivers a smooth, stable arc with minimal spatter, reducing postweld cleanup and improving overall weld quality across a wide range of materials and wire types.
- Integrated Water Cooling System: The builtin cooling circuit actively manages torch and consumable temperatures during highdutycycle operation, significantly extending torch service life and enabling sustained highamperage welding without interruption or thermal degradation.
- Synergic Welding Programs: Preloaded synergic programs automatically adjust voltage and wire feed speed parameters based on selected wire type, diameter, and shielding gas, allowing operators to achieve optimised weld settings quickly and consistently — ideal for both skilled and intermediate welders.
- Precise Wire Feed Drive System: The fourroll wire feed mechanism provides uniform, slipfree wire delivery across the full speed range, minimising wire deformation and ensuring consistent arc ignition, particularly important when running softer aluminium or fluxcored wires.
- Comprehensive Process Control: Operators can finetune arc dynamics through adjustable arc force, inductance, and burnback settings, giving full control over penetration profile, bead appearance, and crater fill to suit a wide variety of joint configurations and positional welding requirements.
- Robust Industrial Construction: Designed and manufactured to Fronius's stringent Austrian engineering standards, the Fortis 400c features a durable steel casing, protected control panel, and highquality internal components rated for continuous industrial use in demanding workshop and production environments.
Specification
| left;padding:8px;background:#f4f4f4;border:1px solid #ddd;">Specification | Value |
|---|---|
| 8px;border:1px solid #ddd;">Welding Process | MIG/MAG (GMAW) |
| 8px;border:1px solid #ddd;">Input Voltage | 415V / 3-Phase / 50Hz |
| 8px;border:1px solid #ddd;">Welding Current Range | 3A – 400A |
| 8px;border:1px solid #ddd;">Duty Cycle @ 400A | 60% @ 40°C |
| 8px;border:1px solid #ddd;">Duty Cycle @ 320A | 100% @ 40°C |
| 8px;border:1px solid #ddd;">Wire Diameter Range (Steel) | 0.6mm – 1.6mm |
| 8px;border:1px solid #ddd;">Wire Diameter Range (Aluminium) | 0.8mm – 1.6mm |
| 8px;border:1px solid #ddd;">Wire Feed Speed | 0.5 – 22 m/min |
| 8px;border:1px solid #ddd;">Spool Capacity | Up to 15kg |
| 8px;border:1px solid #ddd;">Cooling Type | Water Cooled (integrated cooling unit) |

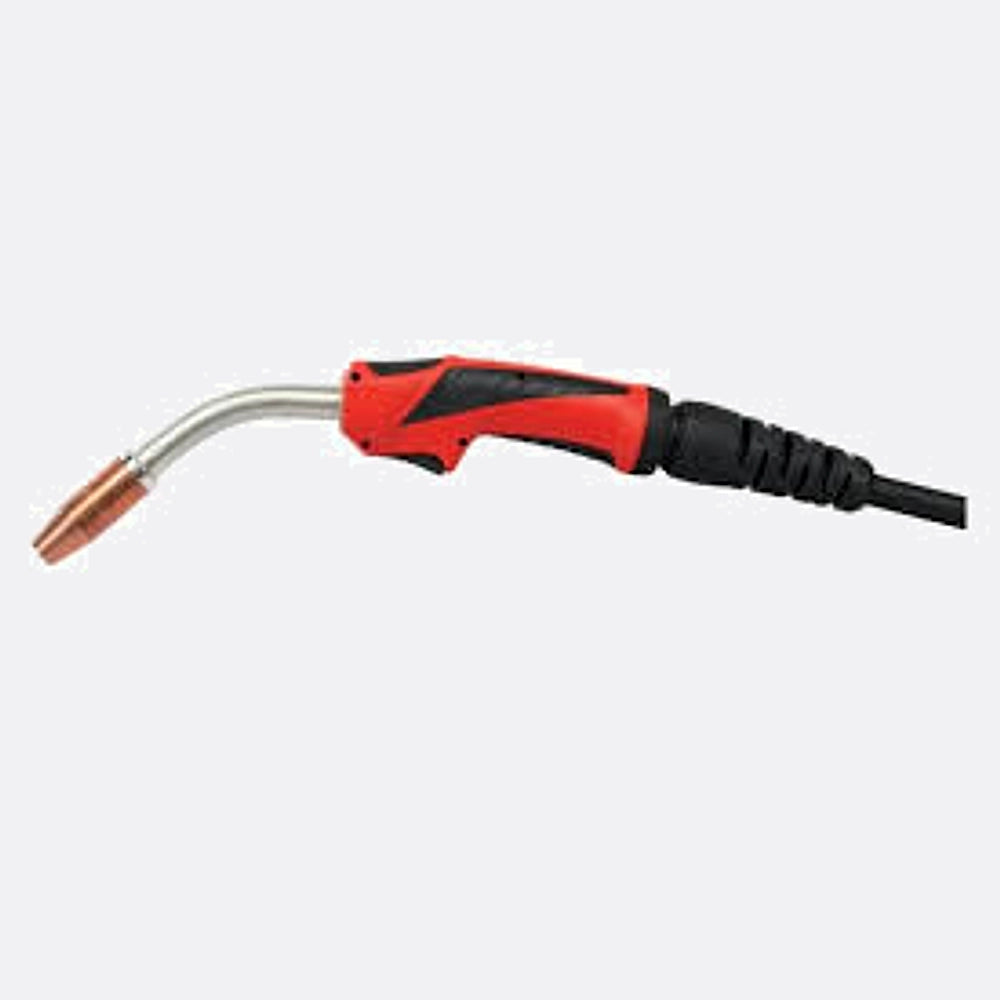

| 8px;border:1px solid #ddd;">Torch Included | Water Cooled MIG Torch |
| 8px;border:1px solid #ddd;">IP Rating | IP23 |
| 8px;border:1px solid #ddd;">Standards Compliance | IEC 60974-1, CE Marked |
| 8px;border:1px solid #ddd;">Power Source Dimensions (L×W×H) | 625 × 290 × 475 mm (approx.) |
| 8px;border:1px solid #ddd;">Power Source Weight | Approx. 28 kg |
| 8px;border:1px solid #ddd;">Manufacturer Warranty | 5 Years (Fronius Australia) |
