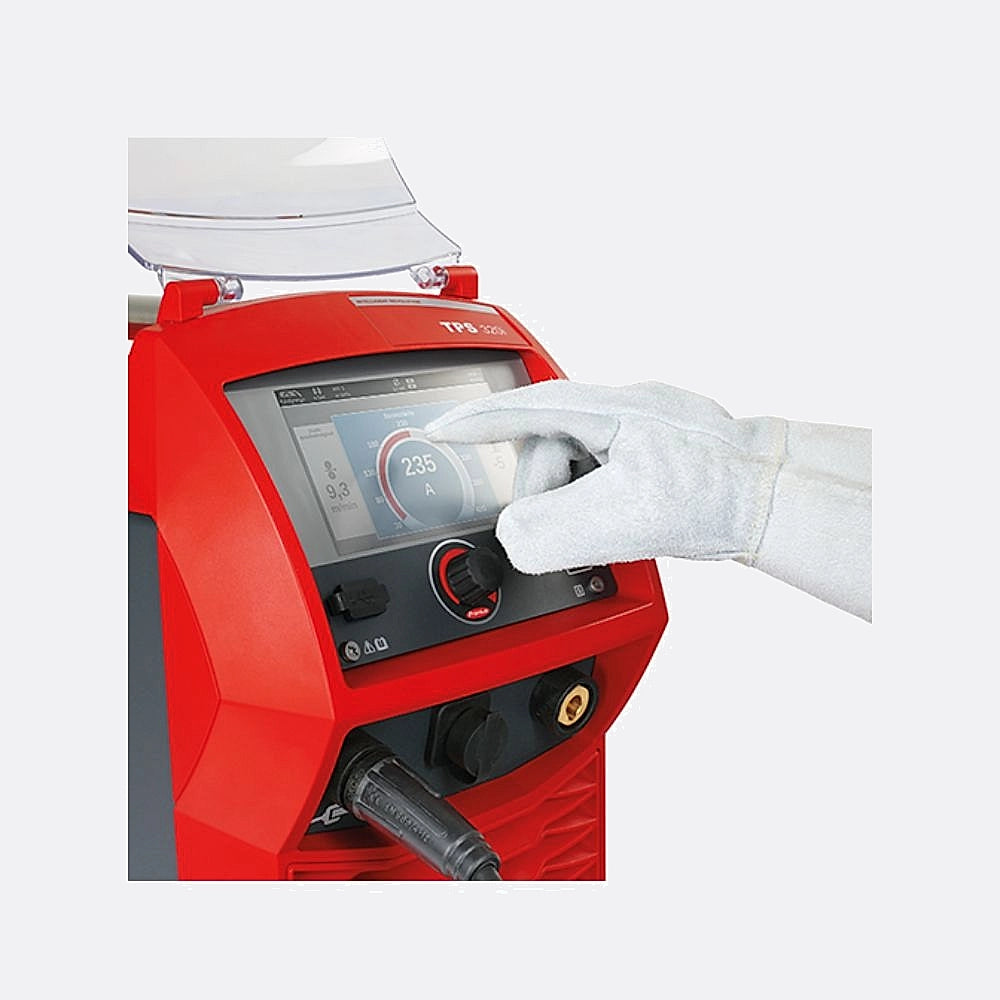

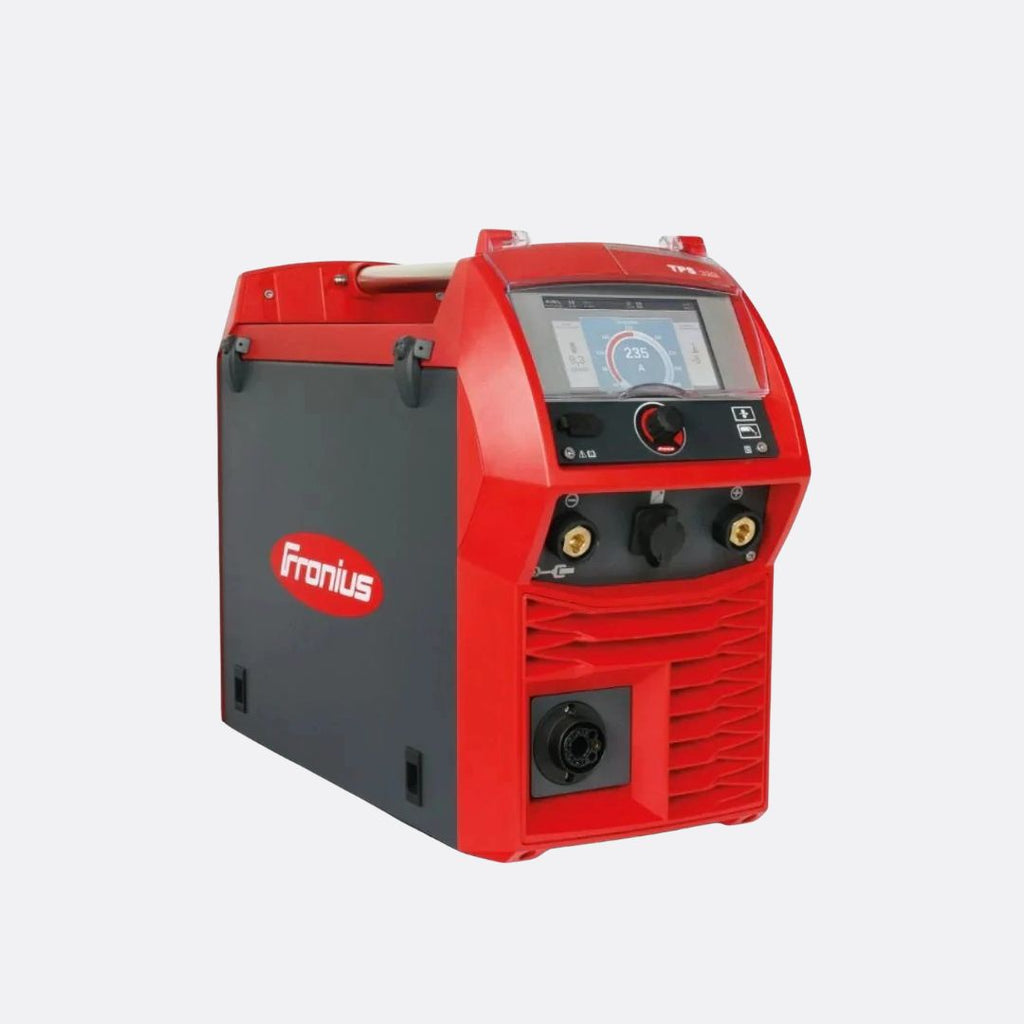

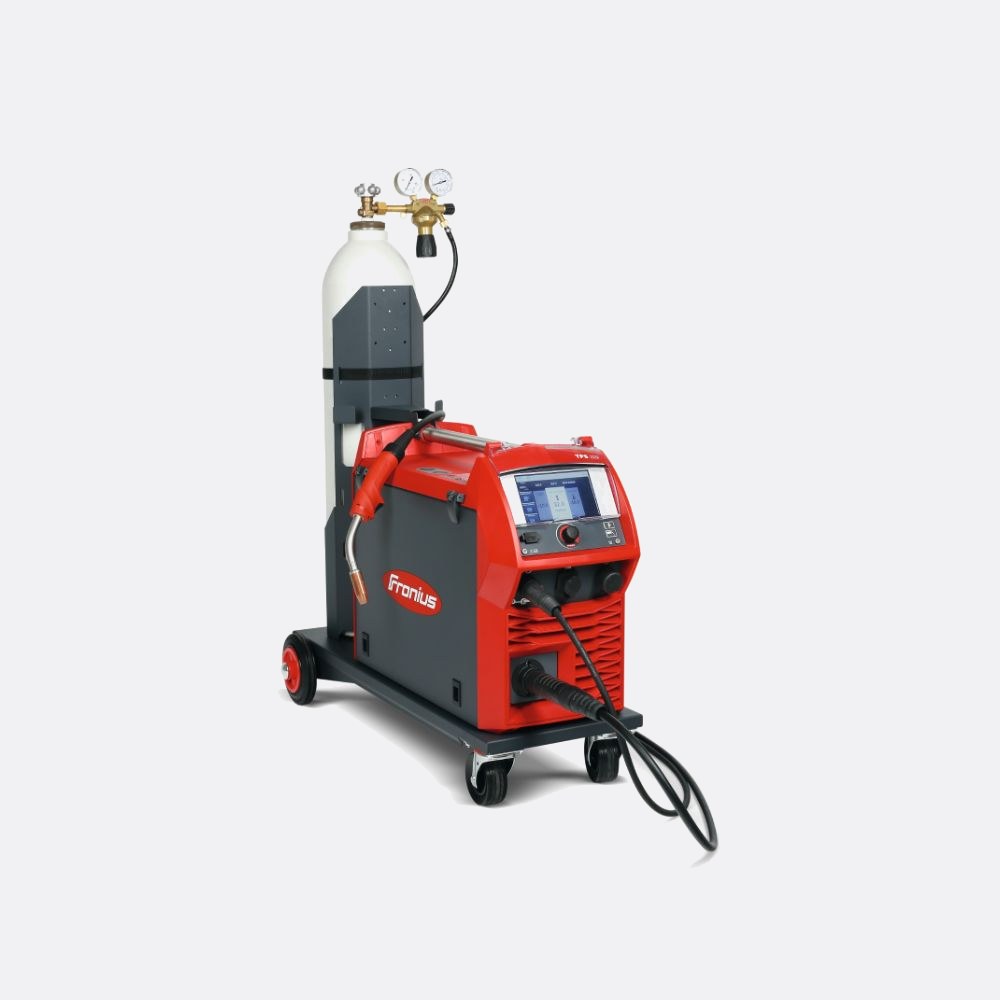

Fronius 320i C Pulsed Inverter MIG

The Fronius 320i C is designed to weld a broad range of materials, making it a highly versatile choice for professional workshops. It handles mild steel, stainless steel, and aluminium with equal competence, with dedicated synergic programs for each material type built into the machine's library. Compatible solid wire diameters range from 0.6 mm to 1.6 mm for steel and stainless, and 0.8 mm to 1.6 mm for aluminium. The machine also supports flux-cored wires (FCAW), making it suitable for outdoor or structural applications where shielding gas coverage may be less reliable. The pulsed MIG mode is particularly effective for aluminium and thin stainless, as it controls heat input precisely to minimise distortion and burn-through on lighter gauges while still achieving full fusion on thicker sections.

The 320i C is primarily engineered as a workshop and light industrial machine, and its 3-phase 415V input requirement means it is best suited to environments with access to a standard three-phase power supply — typical of fabrication shops, automotive workshops, manufacturing facilities, and trade premises. For on-site use, it is practical wherever a suitable 3-phase supply is available, such as on construction sites with a generator or site board connection. Its IP23 protection rating provides a degree of resistance to moisture and dust ingress, making it more resilient than open-frame machines in less controlled environments. The unit's relatively compact footprint and integrated carry handle aid portability within a workshop setting, though it is not a lightweight portable unit. Fronius also offers complementary wire feeders and remote controls that can extend its flexibility in larger workshop or semi-automated environments.

Standard MIG welding (short-circuit or spray transfer) deposits wire continuously at a set voltage and wire speed, which can result in variable heat input and increased spatter — particularly challenging on thin materials or aluminium. Pulsed MIG, as implemented on the Fronius 320i C, alternates between a high peak current (which detaches one droplet of wire per pulse) and a lower background current that maintains the arc without excess heat input. This controlled transfer mode produces a spatter-free, low-heat weld that is ideal for thin gauge materials, aluminium, stainless steel, and out-of-position welding where controlling the weld pool is critical. The result is a cleaner bead appearance, reduced distortion, and less post-weld grinding. Pulse mode is recommended whenever surface finish, heat-affected zone size, or weld aesthetics are a priority. For heavy structural work on thicker mild steel, conventional spray transfer may still be preferred for maximum deposition rates.

Fronius backs the 320i C with a manufacturer's warranty covering defects in materials and workmanship — Fronius is well regarded in the Australian market for honouring its warranty commitments and maintaining a strong authorised service network. At Brisbane Welding Supplies, we are an authorised Fronius stockist and service partner, meaning warranty claims and repairs are handled locally by technicians familiar with the product range, without the delays associated with sending units interstate. Beyond warranty, we carry a comprehensive range of genuine Fronius consumables and spare parts — including contact tips, liners, drive rolls, and torch components — so your machine can be kept running with correctly specified parts. Our sales team can also assist with setup advice, synergic program selection, and pairing the 320i C with the right torch, regulator, and wire for your specific application. Contact us in-store or by phone for personalised support.
