F-tech Icap Wall Mounted Extractor Unit Armotech – 400v

ZXFTICAP230/ATC3

F-tech Icap Wall Mounted Extractor Unit Armotech – 400v

£3,388.00

Shipping calculated at checkout.

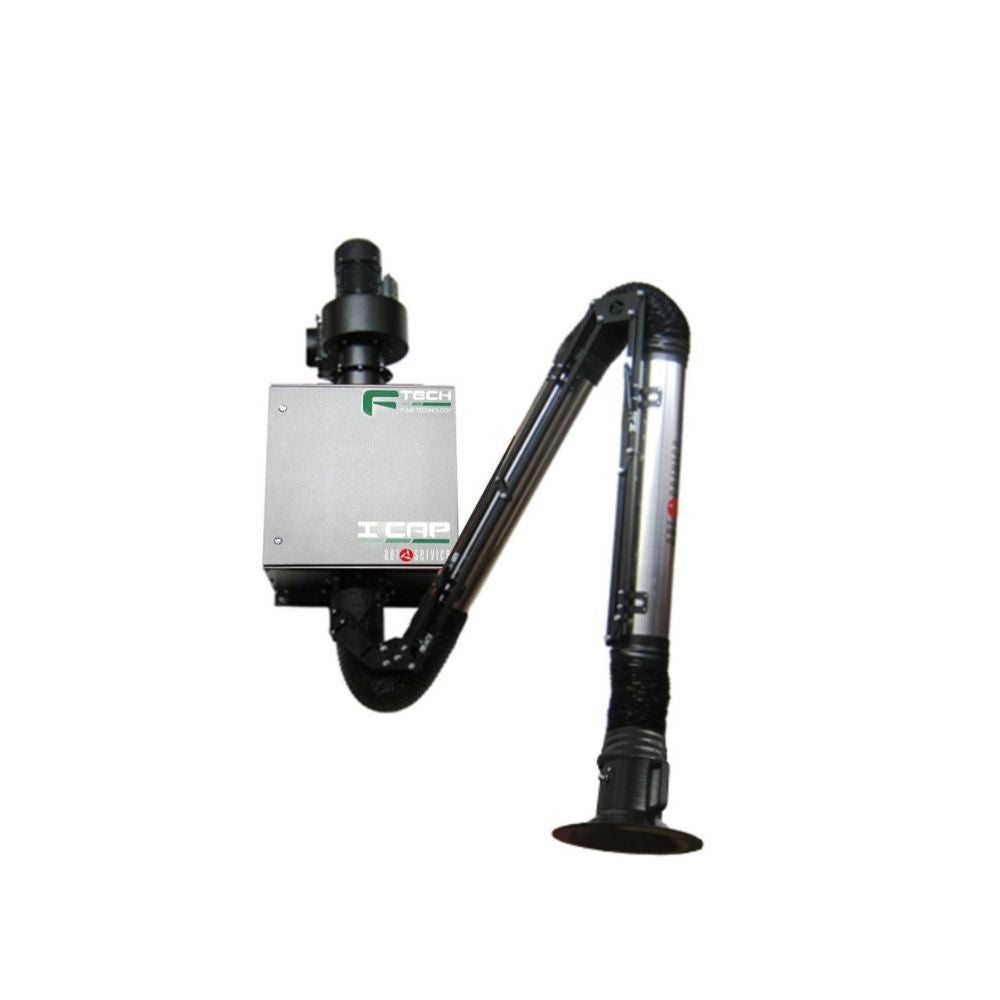

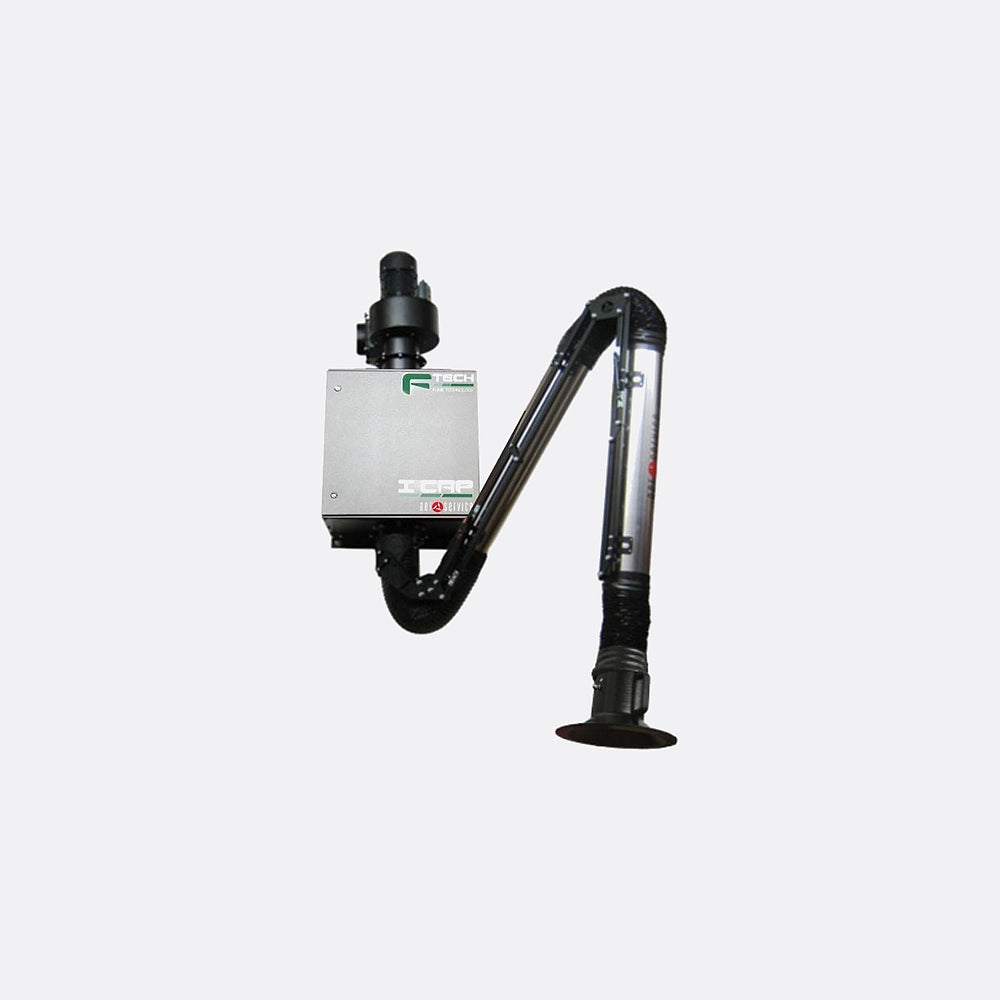

F-tech Icap Wall Mounted Extractor Unit Armotech – 400v is a wall-mounted welding fume extractor for professional workshop use, giving local capture at the source without taking floor space.

Key Features

400v professional supply
Wall-mounted space-saving design
3m Armotech extraction arm
High-performance centrifugal fan
Three-stage E12 filtration
Powder-coated steel construction

Nationwide Engineers

Technical Support

Fast Delivery

Engineer Approved

We aim to dispatch all in-stock items for next working day delivery when ordered before 1pm. Larger or heavier equipment may require a 48-hour delivery service.

Mainland UK Delivery

Orders over £70 (excluding VAT) qualify for free delivery.

Orders under £70 (excluding VAT) are charged at £6.95.

Remote & Offshore Locations

Deliveries to the Scottish Highlands, Islands, Northern Ireland, Isle of Man, Channel Islands and Isles of Scilly are subject to additional carriage charges. These typically start from £18.95 and may increase depending on size and weight.

If you need urgent delivery or want to confirm stock availability before ordering, please contact our team.

We offer a 14-day approval period from the date of delivery to ensure the goods meet your expectations.

Returned items must be in new, unused condition and in their original packaging. Return carriage costs are the responsibility of the customer.

We strongly recommend using a tracked and insured delivery service, as we cannot be held responsible for items lost or damaged in transit.

Items ordered incorrectly and returned for credit may be subject to a 15% restocking fee. This may be waived on orders at our discretion.

Engineer Advice

Paul Jones says

This is a wall mounted local exhaust ventilation unit for welding and grinding fume extraction, run from a 400 V supply. In a bodyshop or fabrication bay it is typically positioned over a regular welding workstation, with the Armotech arm used to bring the hood close to the arc or grinding point without cluttering the floor.

Correct arm positioning is critical. You want the hood as close as practical to the source without obstructing access, and the arm joints need to be set up so the hood stays where the operator puts it rather than drifting. Filtration on these units is designed for re-circulating clean air back into the workshop, so maintaining filter condition and monitoring airflow matters for HSE compliance and operator safety.

A common issue I see is installers mounting the unit too high or off to one side, which forces poor hood positioning and reduces capture efficiency. When mounted at a sensible height, with the Armotech arm set up properly and filters serviced on schedule, it’s a reliable way to remove fume at source without losing heat from the workshop.

Paul Jones, Technical Director

☎
