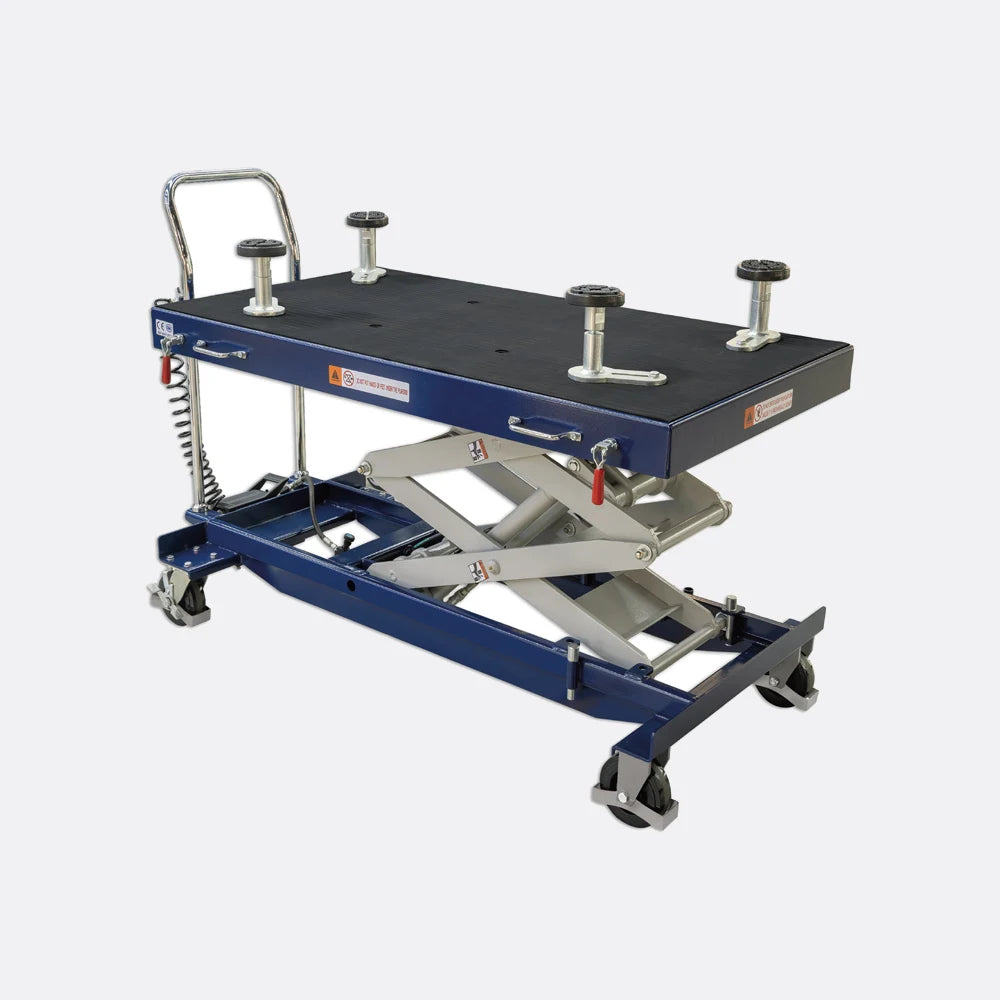

EV Battery Lifting Table 1 Tonne - Pneumatic Hydraulic

Name: EV Battery Lifting Table 1 Tonne - Pneumatic Hydraulic
Brand: Laser
SKU: 9313
Price: 2765.00 GBP
Availability: InStock

£2,765.00

Shipping calculated at checkout.

EV Battery Lifting Table 1 Tonne - Pneumatic Hydraulic is a pneumatic‑hydraulic scissor lift for workshop handling and accurate positioning of heavy modules. The EV Battery Lifting Table 1 Tonne - Pneumatic Hydraulic provides a large movable platform, four independently adjustable rubber lifting pads and ±40 mm lateral adjustment for alignment. EV Battery Lifting Table 1 Tonne - Pneumatic Hydraulic operates from workshop compressed air via a 1/4" BSP inlet (87–145psi / 6–10 bar) to drive the foot‑operated hydraulic pump.

Key Features

Safe working load 1.0 tonne
Platform 1500 x 800 mm
Adjustable height 550–1750 mm
±40 mm lateral adjustment
Four independently adjustable pads
Air‑over hydraulic foot pump

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Warranty

1 Year

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Safe working load 1,000 kg for EV battery packs, petrol/diesel engines, transmissions, subframes and similar assemblies within the rated limit
Airover pneumatichydraulic foot pump driven by workshop compressed air via 1/4" BSP connection (working pressure 87–145 psi / 6–10 bar; minimum 85 psi required to operate)
Dualpump arrangement for faster, controllable lifting without the need for mains power
Large, movable platform 1,500 x 800 mm with lateral adjustment ±40 mm in any direction to aid alignment with vehicle underbodies
Adjustable working height range 550–1,750 mm to suit removal and refit operations
Four independently adjustable rubber lifting pads to provide secure contact with battery packs or assemblies
Doublescissor lift design for stable load support during lifting and positioning
Four heavyduty polyurethane steerable castors with brakes to allow workshop mobility and secure locking during use (castor size 150 mm Ø, 50 mm wide) *Note: engage wheel locks before raising the platform*

Specification

Safe Working Load (SWL)

1000kg (1.0 tonne)

Table dimensions

1500 x 800mm

Minimum platform height

550mm

Maximum platform height

1750mm

Overall dimensions

2135 x 925 x 1130mm

Weight

282kg

Drive

Air over pneumatic-hydraulic (foot pump)

Air supply (working pressure)

87-145psi (6-10 bar)

Minimum air supply pressure

85psi (5.9 bar)

Air inlet

1/4" BSP

Platform lateral adjustment

±40 mm in any direction

Lifting pads

4 x rubber pads, independently adjustable

Castors

4 × heavy-duty polyurethane (PU) steerable castors with brakes, 150mm Ø, 50mm wide

Design

Double-scissor lift for stable load support

Pump

Dual pump for quick & safe lifting

Certification

CE compliant

FAQs

What is the rated capacity and what components is the table intended to handle?

Safe working load (SWL) is 1.0 tonne (1000kg). The table is designed for handling EV battery packs, petrol/diesel engines, transmissions, subframes and similar heavy assemblies up to the rated SWL. It is not intended for lifting people or loads above the stated SWL.

What air supply does the pneumatic-hydraulic pump require and how does it connect?

The pump is driven by workshop compressed air. Working pressure range is 87–145 psi (6–10 bar) with a minimum supplied working pressure of 85 psi (5.9 bar) noted to achieve operation. Air connection is via a 1/4" BSP airline. The pump requires a clean, dry and lubricated air supply; drain compressor tank and filters regularly to avoid moisture/oil damage.

How do the platform adjustment and lifting pads work for alignment and positioning?

Platform size is 1500 x 800 mm and the working height is adjustable from 550 to 1750 mm. The tabletop can be moved ±40 mm in any direction to assist alignment with the vehicle. There are four independently adjustable rubber lifting pads to set load contact points. Use the platform locking pins to fix position once aligned.

What safety and maintenance procedures should my workshop follow?

Before working under the platform insert a high-drop arrest pin into an arrest-pin socket as a mechanical safety stop and engage rear wheel brakes. Always use on flat, level, solid ground and observe the ambient temperature limits specified in the instructions. Disconnect the compressed air before moving the lift. Check for oil and air leaks, lubricate moving parts monthly and inspect wheel condition and brake locks. Change the pump hydraulic oil and clean pump air inlet/oil outlet filters every 250 hours; use HVI-13 low-freezing point hydraulic oil or equivalent. The unit is CE compliant; follow the supplied instructions and vehicle manufacturer procedures when lifting or positioning components.

📄

Technical Datasheet

Download the official manufacturer datasheet for EV Battery Lifting Table 1 Tonne - Pneumatic Hydraulic including specifications, compatibility information and technical details.

Download EV Battery Lifting Table 1 Tonne - Pneumatic Hydraulic Datasheet
