COBRA BY STEALTH FUME EXTRACTION 230V
COBRA BY STEALTH FUME EXTRACTION 230V
Advanced 230V Fume Extraction System

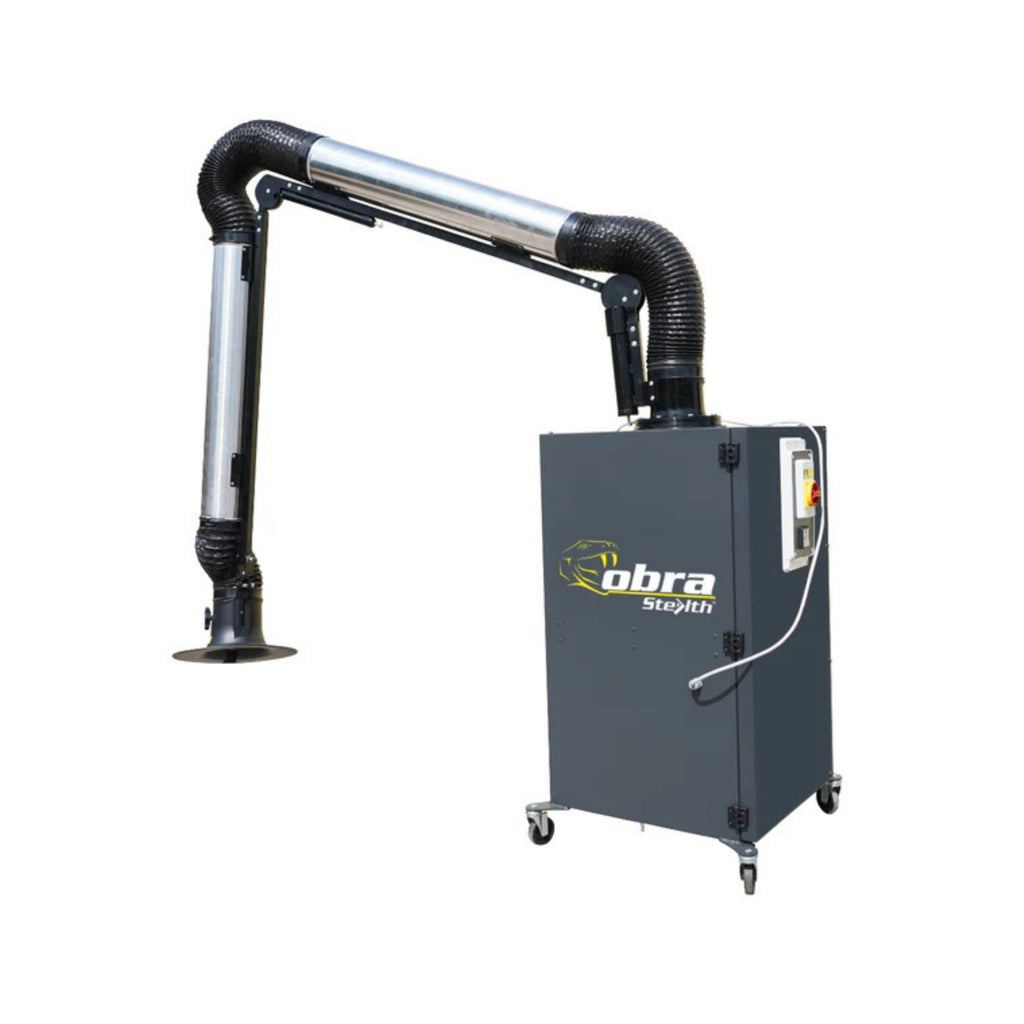

The Cobra by Stealth Fume Extraction Unit 230V is engineered to protect operators from harmful welding fumes. This 110‑volt model delivers exceptional air purification with a nominal airflow of 1,400 m³/h and a hood airflow of 1,300 m³/h, ensuring clean air in confined workspaces.
Driven by a robust 1.5 HP (1.1 kW) motor, it operates quietly at 75 dBA and features a generous 4.5 kg activated‑carbon filter for odour removal. Its compact footprint (93.6 × 55 × 63.5 cm) and 3 m extraction arm with a 150 mm diameter make it flexible and easy to position. The unit integrates an hour counter and cut‑out switch for safety and comes with a 2‑year warranty.
WHY BUY FROM BWS?
Specification
- Nominal airflow: 1,400 m³/h
- Hood airflow: 1,300 m³/h
- Motor power: 1.5 HP (1.1 kW)
- Noise level: 75 dBA
- Carbon filter quantity: 4.5 kg
- Filtering surface: 500 × 500 × 75 mm
- Dimensions: 93.6 × 55 × 63.5 cm
- Extraction arm length: 3 m
- Arm diameter: 150 mm
- Weight: 82 kg
- Safety device: Hour counter & cut‑out switch
- Warranty: 2 years
Features
- High‑capacity airflow for effective fume removal
- 3‑m flexible extraction arm with 150 mm diameter
- Integrated hour counter and safety cut‑out
- Low noise operation at 75 dBA
- Large activated‑carbon filter for odour control
- Compact and mobile design for easy positioning
- Comprehensive 2‑year manufacturer’s warranty
FAQs
1. What power supply does the Cobra 110V unit require?
The Cobra by Stealth Fume Extraction Unit operates on a 110‑volt supply, making it suitable for worksites that use low‑voltage power.
2. How often should the carbon filter be replaced?
Filter replacement depends on usage, but typically the activated‑carbon filter should be checked every 6 months and replaced as needed to maintain optimal performance.
3. What is the airflow capacity of this unit?
This model provides a nominal airflow of 1,400 m³/h and 1,300 m³/h at the hood, ensuring effective capture of welding fumes.
4. Is the Cobra unit portable?
Yes, despite its robust construction, the unit’s compact dimensions and integrated wheels allow for easy movement around the workshop.
Why Choose Stealth Fume Extraction Equipment from BWS Ltd
As an Approved Sales and Service Centre with a nationwide team of trained engineers, BWS Ltd offers full sales, setup, and after‑sales support for all the equipment we sell. Buying from BWS ensures your investment includes: * Certified installation and training * Ongoing calibration and servicing * Expert support from real bodyshop engineers
