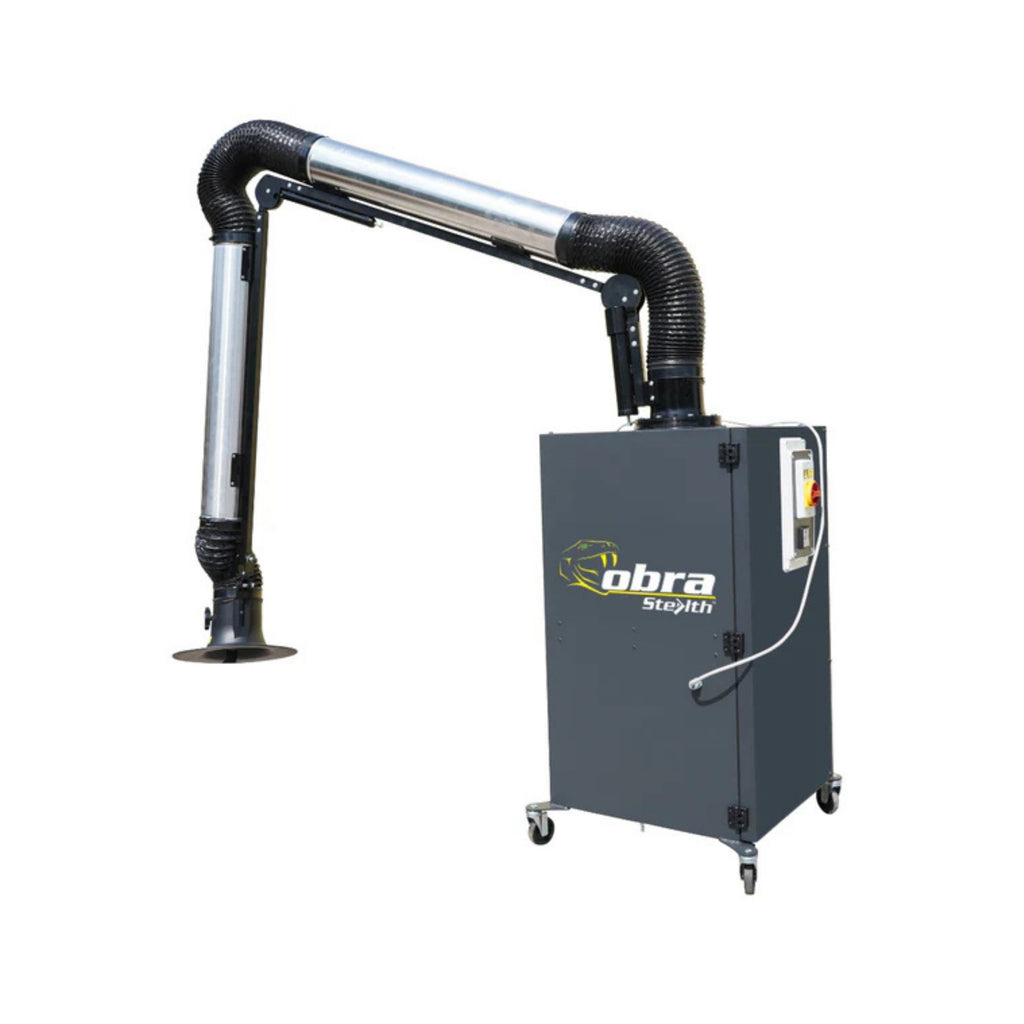

COBRA BY STEALTH MOBILE FUME EXTRACTION UNIT 110V

Portable 110V Fume Extraction Unit for Workshops

The Cobra by Stealth Fume Extraction 110V unit is a high‑performance, mobile LEV system designed for bodyshops and welding bays where 110‑volt supplies are required. This compact extractor delivers up to 1400 m³/h nominal airflow through a three‑metre articulated arm, allowing operators to position the capture hood exactly where fumes are generated. A multi‑stage filtration system combines a large cartridge filter with 4.5 kg of activated carbon to efficiently trap particles and odours, while an integrated hour counter and cut‑out switch ensure maintenance is performed on schedule. With rugged wheels, a sturdy steel housing and low 75 dB(A) noise level, the Cobra 110V provides reliable fume control for demanding industrial environments.

WHY BUY FROM BWS?

Specification

• Nominal airflow: 1400 m³/h
• Hood airflow: 1300 m³/h
• Power: 1.1 kW (1.5 HP) 110 V single‑phase
• 110 V mobile extraction unit ideal for sites with reduced‑voltage supply

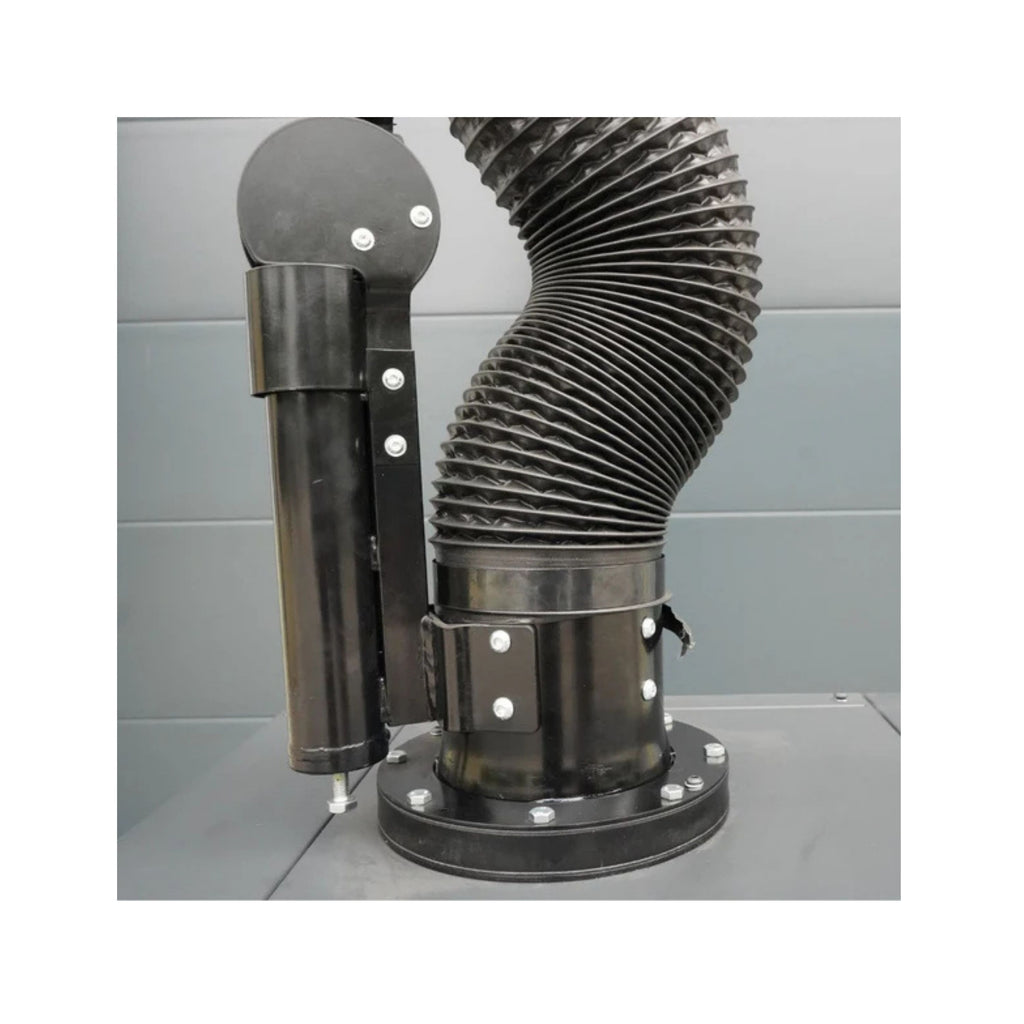

• Articulated 3 m arm pivots and locks for precise capture at source
• High‑efficiency cartridge and carbon filters remove particulate and odours
• Noise level: 75 dB(A)
• Filter size: 500 × 500 × 75 mm cartridge with 4.5 kg activated carbon
• Dimensions (L×W×H): 93.6 × 55 × 63.5 cm
• Arm length & diameter: 3 m long, 150 mm diameter
• Weight: 82 kg

Features

<

• 110 V mobile extraction unit ideal for sites with reduced‑voltage supply
• Articulated 3 m arm pivots and locks for precise capture at source
• High‑efficiency cartridge and carbon filters remove particulate and odours
• Integrated hour meter and safety cut‑out for scheduled maintenance
• Low noise operation at 75 dB(A) for quieter working environments
• Robust steel chassis with wheels for easy manoeuvrability
• Supplied with 2‑year warranty for parts and labour

ul>

• 110 V mobile extraction unit ideal for sites with reduced‑voltage supply
• Articulated 3 m arm pivots and locks for precise capture at source
• High‑efficiency cartridge and carbon filters remove particulate and odours
• Integrated hour meter and safety cut‑out for scheduled maintenance
• Low noise operation at 75 dB(A) for quieter working environments
• Robust steel chassis with wheels for easy manoeuvrability
• Supplied with 2‑year warranty for parts and labour

FAQs

1. What applications suit the Cobra 110V extractor?

This unit is designed for welding, grinding and bodyshop processes where 110‑V supplies are used and local extraction of fumes and dust is required.

2. How often should the filters be replaced?

The built‑in hour counter indicates when service is due. Typically the cartridge and carbon filters are replaced annually, depending on usage and contamination.

3. Is the extraction arm adjustable?

Yes, the 3‑m articulated arm is fully adjustable and locks into position to place the hood close to the fume source for optimum capture.

4. What warranty is provided?

The Cobra by Stealth Fume Extraction 110V unit comes with a 2‑year warranty covering parts and labour for peace of mind.

Why Choose Stealth Fume Extraction Equipment from BWS Ltd

As an Approved Sales and Service Centre with a nationwide team of trained engineers, BWS Ltd offers full sales, setup, and after‑sales support for all the equipment we sell Buying from BWS ensures your investment includes: * Certified installation and training * Ongoing calibration and servicing * Expert support from real bodyshop engineers
