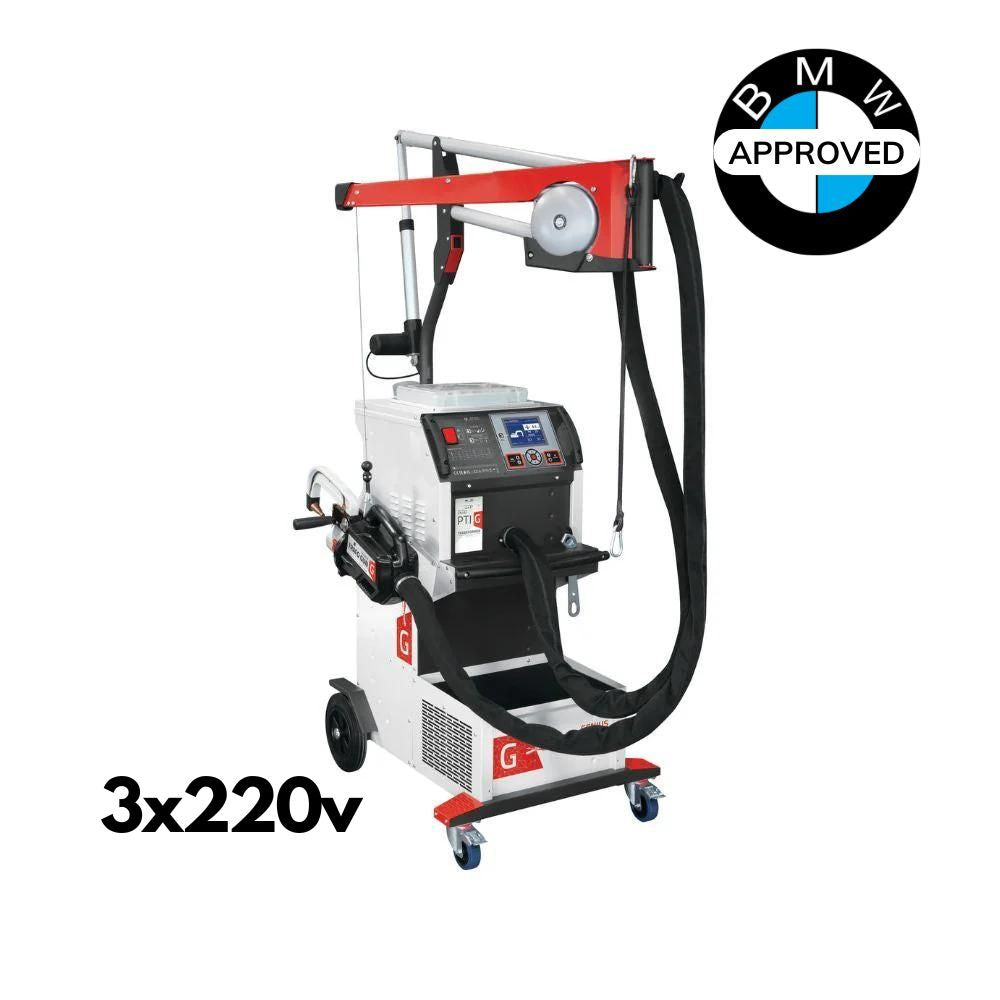

BMW C7502655 - RESISTANCE SPOT WELDER - 230V

BMW C7502655 - RESISTANCE SPOT WELDER - 230V

Name: BMW C7502655 - RESISTANCE SPOT WELDER - 230V
Brand: GYS
SKU: 028722
Price: 13764.32 GBP
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

£13,764.32 £0.00

028722

Brand: GYS Type: Spot Welders

BMW Approved Genius Spot Welder For The Future

GYSPOT PTI GENIUS is the spot welder of the future. The on-board intelligence guarantees full automation, off ering bodyshops the ability to increase their effi ciency: Genius G-clamp with pneumatic over-opening, easy arm positioning without adjustment, motorised overhanging arm providing a wide working area. It is the most advanced machine for the active bodyshop.

Includes BMW software!

The Genius G-clamp with pneumatic over-opening and arm positioning without adjustment offers automated full-body repair capabilities, allowing body shops to work quickly and efficiently.

BMW C7502655 - RESISTANCE SPOT WELDER is the premier machine for active BMW body Repair and collision shops.

Why Buy From BWS?

Technical Support ✓
Service Engineers ✓
Business Account ✓
Installation by Qualified engineers ✓

DOWNLOAD

FEATURES

Innovative G-Clamp Design
Lightweight at 11.3 kg with the G1 arm

80 mm automatic opening capacity (20 mm at rest)

Manual over-opening up to 200 mm for difficult areas

Brass clamp support and arm-base for optimal electrical contact

Double action feature for quick arm removal without tools

Integrated lockable gyroscope with ball bearing

Advanced Functionality
Remote-controlled clamp for opening, welding, and adjustments

Automatic cooling connection

High duty cycle (18 points per minute)

Compatible with optional G9 arm for auto mode

BMW software included

SPECIFICATION

Technical Specifications
Welding Current: 14,500 A
Clamping Force: 550 daN with 8 bar air pressure
Power Supply: 3 x 230V, 50/60 Hz
Fuse Rating: 50 A (D)
Maximum Spots per Minute: 20
Open Circuit Voltage: 7.0 V
Protection Rating: IP 20
G-Clamp Features
Weight: 11.3 kg with G1 arm
Automatic Opening: 80 mm (20 mm at rest)
Manual Over-opening: Up to 200 mm
Duty Cycle: 18 points per minute
Electrode Caps: Type A-32 Ø16mm

DOWNLOAD

BMW C7502655 - RESISTANCE SPOT WELDER - 230V

BMW Approved Genius Spot Welder For The Future

Why Buy From BWS?

DOWNLOAD
