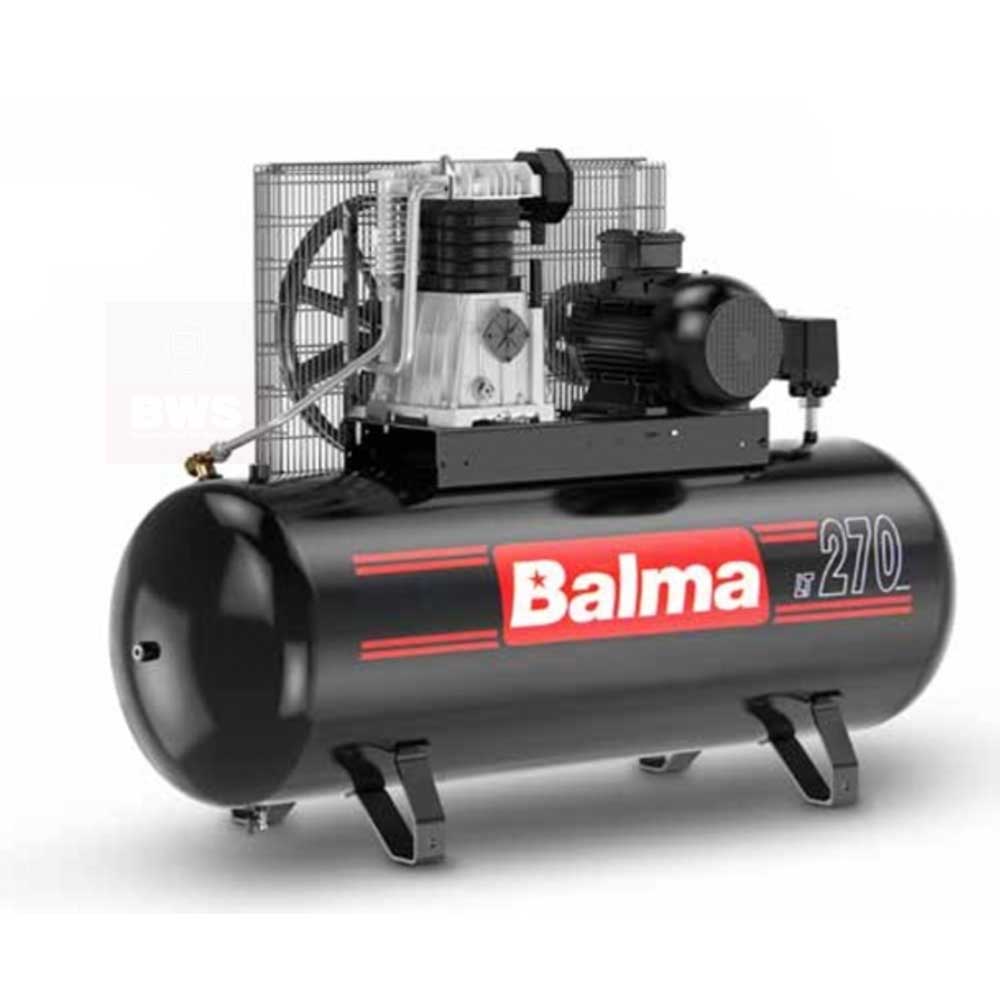

BALMA AIR COMPRESSOR 4HP 270L

BALMA BELT DRIVEN/STATIC AIR COMPRESSOR 240/400V

SKU. 230v-BA4/270BS1 -400v- BA4/270BS3

A powerful range of single and three-phase compressors designed with
larger volumes of air and higher working pressures to meet the demands of
professional and industrial applications. Ideal for larger-size workshops or
where higher demands of air and heavier-duty applications are required.

All pumps are fitted with a cast iron cylinder for increased cooling.



 Calculating CFM for a compressor


 Download Balma Catalogue

- Full-sized pumps with a large oil sump for increased lubrication reduce the wear of the conrods and further increases the lifetime of the compressor
- Special non-wear construction conrods and robust cast Iron
- Single and three-phase electric motors fitted with thermal overload protection.
- Automatic stop/start pressure switches fitted with soft start
- Machines are fully C certified and manufactured in accordance with EN IS09001

Air Displacement CFM-17.1
Maximum Free Air Delivery CFM-11.9
Maximum Pressure-145psi(10bar)
Motor Output- 4hp
Nett Weight-87kg
Outlet-1/2"BSP Female Tap
Receiver Capacity-270L
Size (W x D x H)-1530 x 600 x 1116mm
Max Pressure-10 bar
Supply-230V/400V
