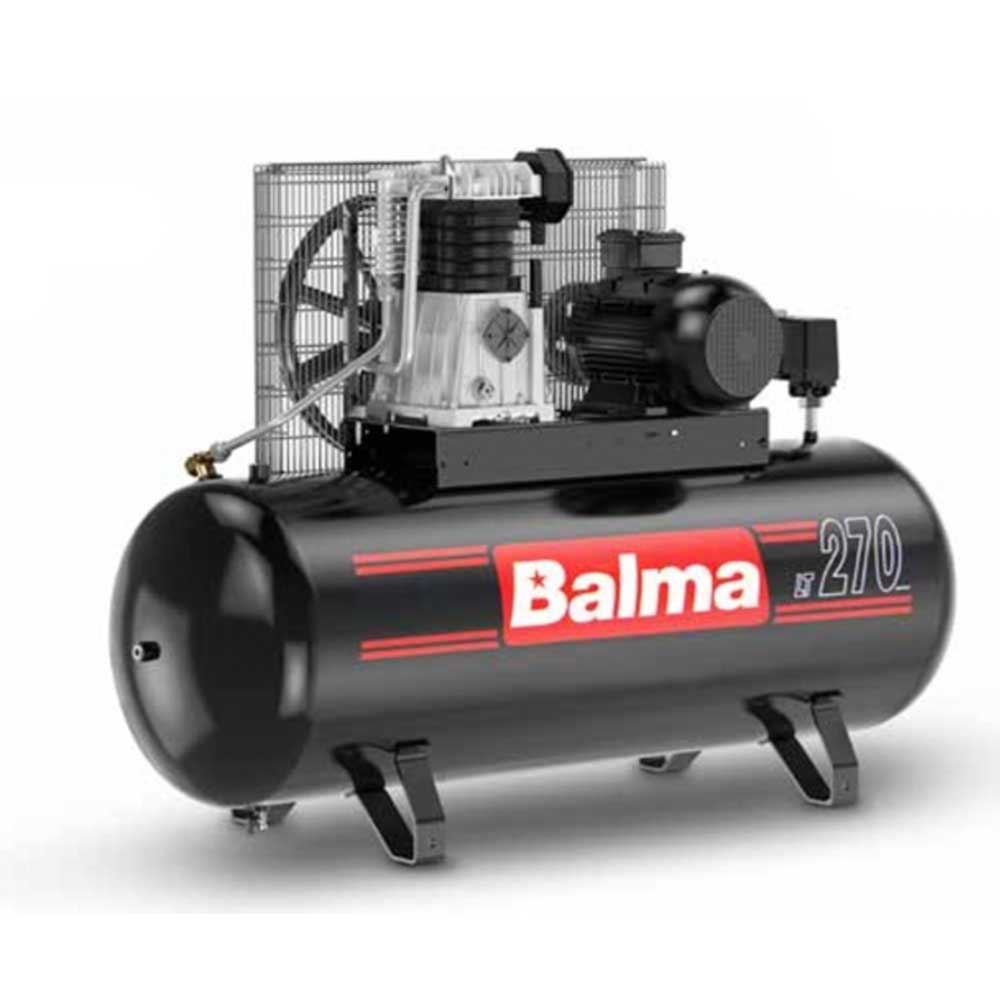

BALMA AIR COMPRESSOR 3HP 150L

Price Exc Tax

BA3/150BSI

BALMA BELT DRIVEN/STATIC AIR COMPRESSOR -BA3/150BSI-BA3/150BS3

A powerful range of single and three-phase compressors designed with
larger volumes of air and higher working pressures to meet the demands of
professional and industrial applications. Ideal for larger size workshops, or
where higher demands of air and heavier duty applications are required.

All pumps are fitted with a cast iron cylinder for increased cooling

  • Full-sized pumps with a large oil sump for increased lubrication reduce the wear of the conrods and further increases the lifetime of the compressor
  • Special non-wear construction conrods and robust cast Iron
  • Single and three-phase electric motors fitted with thermal overload protection.
  • Automatic stop/start pressure switches fitted with soft start
  • Machines are fully C certified and manufactured in accordance with EN IS09001

Part No.

230v-BA1/150BSI

400v- BA3/150BS3

SPECIFICATION

Air Displacement CFM

13.9

Maximum Free Air Delivery CFM

10.1

Maximum Pressure

145psi(10bar)

Minimum Rated Supply

13A

Motor Output

3hp

Nett Weight

87kg

Outlet

1/2"BSP Female Tap

Receiver Capacity

150L

Size (W x D x H)

1380 x 420 x 950mm

Max Pressure

10 bar

Supply:

230V
