AVDEL PROSERT XTN20

Price Exc Tax

74202-00001

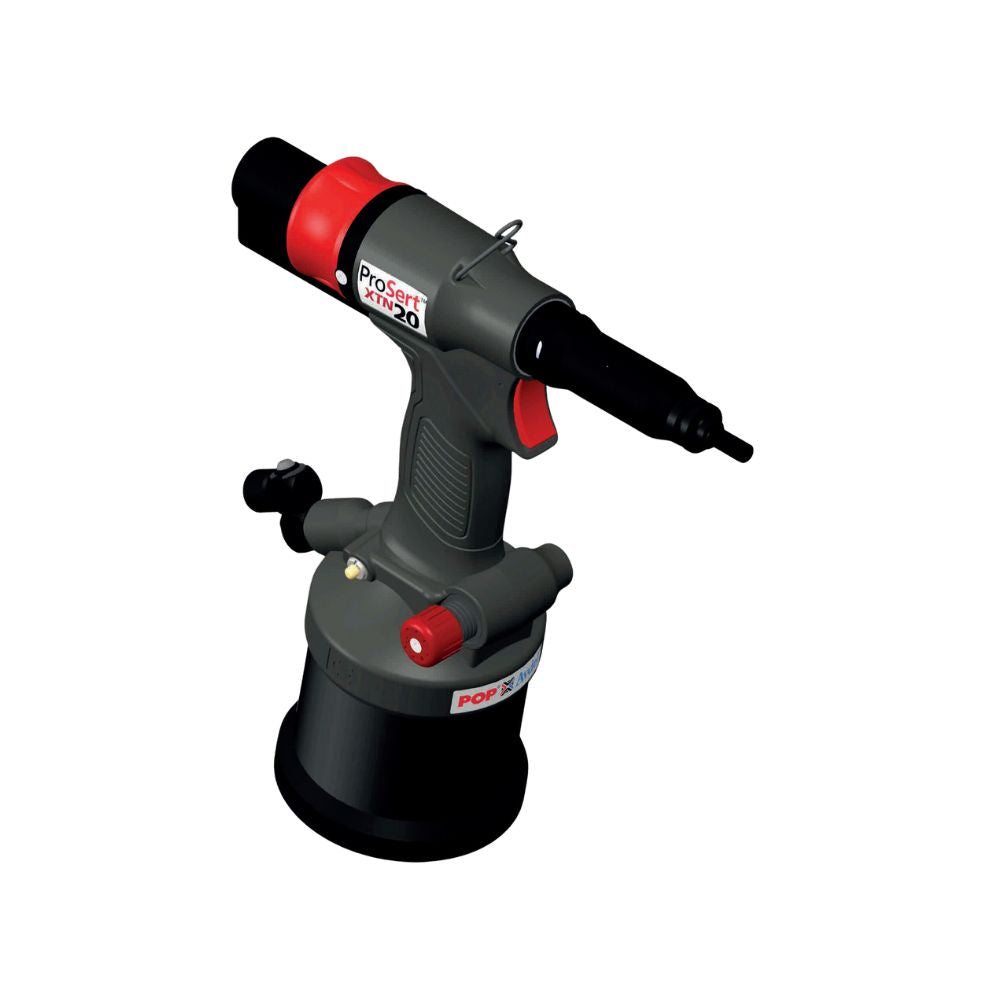

AVDEL PROSERT XTN20 - Compact Pneumatic/Hydraulic Rivet Tool

SKU 74202-00001

XTN20 PACKAGE INCLUDING M4-M8 EQUIPMENT

The AVDEL PROSERT XTN20 is a compact, lightweight, and reliable pneumatic/hydraulic power tool designed for use in production line environments.



This robust blind rivet nut tool is lightweight and efficient, with excellent ergonomics and superior adaptability. With dual mode operation, the ProSert® XTN20 improves production and minimizes cost of fastener installation, resulting in high returns on investment. Fast, light, and ergonomic, it boosts production output while accommodating various thread sizes and grip combinations.




    Download Gysduction Car Body Inductor Download





    - Lightweight, Fast Operation
    - 3.0mm - 5.0mm Setting Capacity
    - Capable Of Setting Structural Rivets
    - Nose Pieces Included
    - New Hybrid Version POP Proset 2500 & Avdel NG1

    Weight: 1.59 kg (3.50 lb) including nose equipment
    Pull Force: 17.65 kN (3968 lbf) at 5 bar
    Air Supply Pressure: 5 - 7 bar (72.5 - 101.5 lbf/in²)
    Piston Stroke: 3 - 7 mm (.118 - .275 in.)
    Noise Level: < 75 dB(A)
    Cycle Time: < 1.5 sec. per complete setting
    Placing Capability: Blind rivet nuts M3 to M10, 4UNC to 3/8
