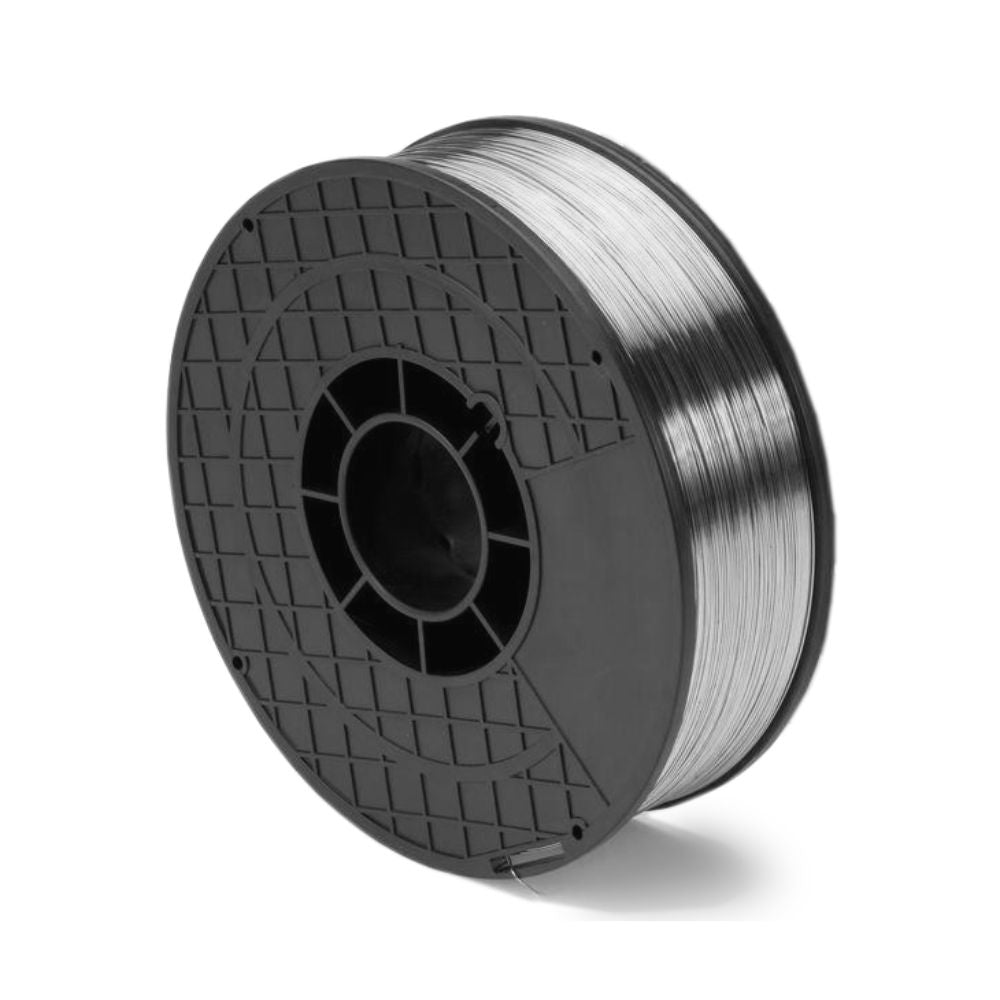

ALMG 5356 MIG WELDING WIRE 1.0MM 2KG

Price Exc Tax

Magnesium Aluminium MIG Welding Wire

  • AlMg 5356 is typically chosen because of its relatively high shear strength compared to AlSi4043. It's generally used in structural parts of the vehicle.
  • Alloy wheel repair is recommended with this grade of wire due to the increased strength in the HAZ zone.
  • The 5XXX alloy base material, welded with  5356, with a weld pool chemistry greater than 3% Mg and service temperatures in excess of 65°C are susceptible to stress corrosion cracking.
  • AlMg 5356  alloy is non-heat treatable as it weakens the shear strength.

Weight 2kg
Dimensions 1.0mm
Material 5% Magnesium, Aluminium
Shielding Gas Pure Argon
Current Type DC+
Chemical Composition(s)
Be = 0.0003 MAX, Cr = 0.05 MIN – 0.20 MAX, Cu = 0.10 MAX, Fe = 0.40 MAX, Mg = 4.5 MIN – 5.5 MAX, Mn = 0.05 MIN – 0.20 MAX, Si = 0.25 MAX, Ti = 0.06 MIN – 0.20 MAX, Zn = 0.10 MAX
Grade 5356
Set Size Single Box
Conforms To AWS A5.10, ER5356
