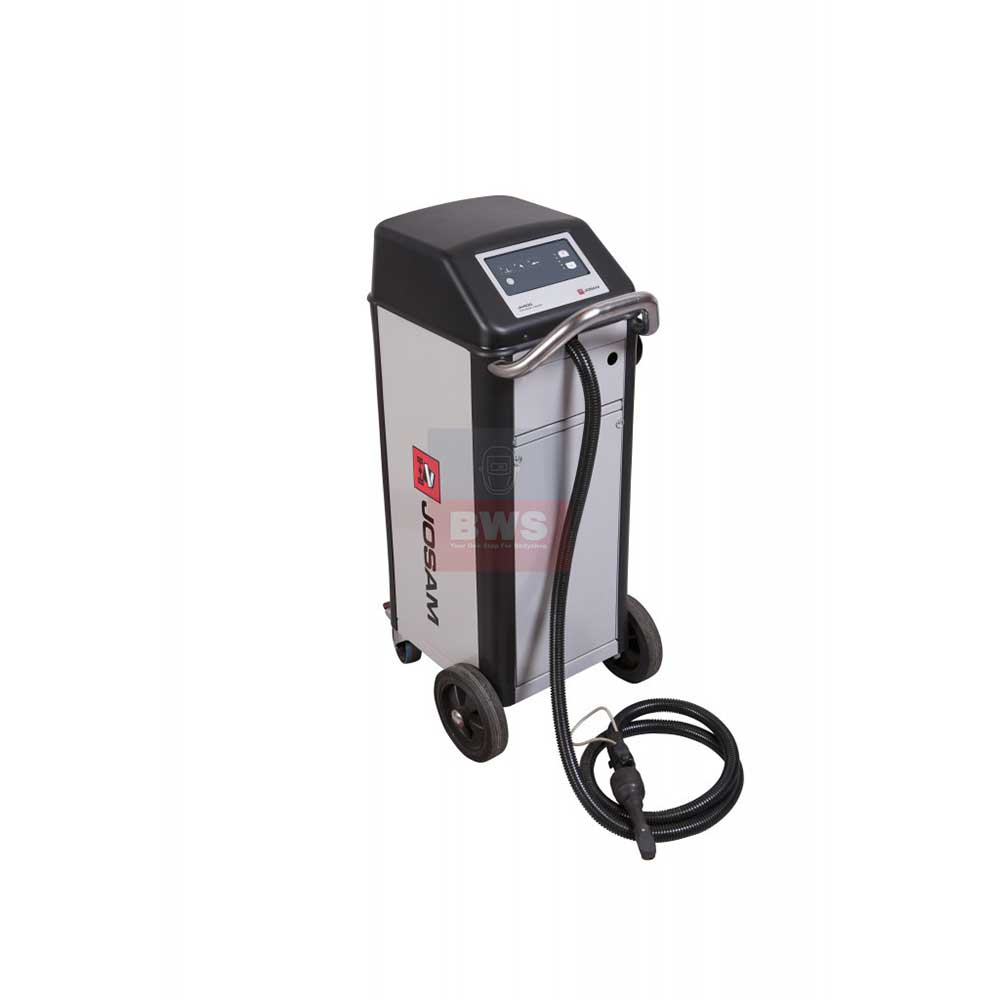

JOSAM HEAT INDUCTOR - JH400

JOSAM HEAT INDUCTOR - JH400

£4,860.00
Skip to product information
JOSAM HEAT INDUCTOR - JH400
  • JOSAM HEAT INDUCTOR - JH400
  • JOSAM HEAT INDUCTOR - JH400
JOSAM HEAT INDUCTOR - JH400

JOSAM HEAT INDUCTOR - JH400

£4,860.00
Shipping calculated at checkout.

JOSAM HEAT INDUCTOR - JH400 provides controlled, flameless heat for professional sheet-metal straightening and loosening smaller seized workshop components.

Key Features

  • Controlled five-stage heating output
  • Water-cooled induction heating system
  • Suitable for nuts up to M24
  • Three-metre induction cable
  • Closed cooling system for reliability
  • Designed for lighter repair work


Technical Support

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Delivery + Returns

Returns details can be edited in the theme editor.
Service engineers

Service

In-house engineers

Technical support

Support

0161 223 1843

Expert Advice

Paul Jones

Paul Jones says

The Josam JH400 is a compact induction heater for controlled, localised heating in bodyshops and general workshops. I use this type of equipment for loosening seized nuts, pins and clamping rings, supporting wheel alignment work, and straightening sheet metal without an open flame.

The five-stage power control is important because different materials and thicknesses need different heat input. The JH400 is suited to lighter repair work and uses interchangeable tips to reach awkward areas. Its water-cooled system also needs correct maintenance; use the specified distilled water and keep the cooling circuit clean.

A common mistake is applying maximum power for too long. That can overheat the workpiece or transfer heat into nearby components, even though induction is more localised than a gas torch. I always check surrounding materials, access and the required heating time before starting.

Used with the correct tip and power setting, the JH400 is a reliable workshop tool for fast, flameless heating and controlled repair work.

Paul Jones, Technical Director

WHY BUY YOUR EQUIPMENT FROM US?

At BWS, we do more than supply equipment. Our experienced engineers work with the products we sell every day, providing practical advice to help you choose the right equipment for your workshop.

From installation and training to servicing, calibration and repairs, we’re here to support you long after your purchase. You’re not simply buying a machine — you’re gaining access to a team that understands how to keep it working.

See What We Do!

Technical Features

  • Controlled, flameless induction heating for sheetmetal straightening and lighter repair work
  • Fivestage heating output allows heat application to be adjusted for the job and helps prevent overheating
  • Suitable for loosening smaller machine parts, including nuts up to M24, pins and clamping rings
  • Watercooled system supports repeated workshop use and helps maintain operating temperature
  • Automatic cooling runs the cooling system when required, reducing unnecessary noise and energy use
  • Threemetre induction cable gives useful reach around vehicles and workshop equipment
  • Directly heats the selected metal area, helping protect nearby heatsensitive components
  • Suitable for spot heating, shrinking, bending and heating before soldering or welding
  • Interchangeable straight and angled inductor options help reach restricted areas
  • Variablefrequency control adapts the heating process to the selected output level
  • Closed cooling circuit reduces the need for openflame equipment during repair work
  • Suitable for professional automotive bodyshops, vehicle repair centres and general workshops

Specification

Mains Supply
208–240 V, 1 Ph+PE, 50
Protection Class
IP21
Working Frequency
18–40 kHz
Input Power
4 kW
Output Power
3.7 kW maximum induction power
Output Stages
5
Induction Cable
3 m
Cooling System
Water-cooled
Continuous Operating Time
20 minutes at 20°C ambient temperature and maximum power
Weight
54 kg with full tank
Water Tank Capacity
20 litres
Dimensions
520 x 360 x 990 mm (L x W x H)
Maximum Nut Size
M24

FAQs

What is the JOSAM JH400 induction heater used for?
It provides controlled, flameless heat for lighter workshop repairs, including sheet-metal straightening and loosening smaller machine parts such as nuts up to M24, pins, clamping rings and seized components. It is suitable for professional automotive, bodyshop, truck and industrial workshops.
What power supply does the JOSAM JH400 require?
The JH400 requires a 208–240 V single-phase supply with protective earth, operating at 50/60 Hz and rated at 16 A. Its maximum input power is 4 kW and maximum induction output is 3.7 kW, so the electrical installation should be checked before commissioning.
How long can the JH400 run continuously?
At maximum power and an ambient temperature of 20°C, the stated continuous operating time is 20 minutes. The machine uses a closed, water-cooled system with a 20-litre tank and automatic cooling to help manage operating temperature during workshop use.
What are the main operating features and dimensions?
The JH400 has five heating output levels, an 18–40 kHz working frequency and a 3-metre induction cable for practical access around a vehicle or workbench. It weighs 54 kg with a full tank and measures 520 × 360 × 990 mm; suitable straight and angled inductor heads can be used for different heating positions.
