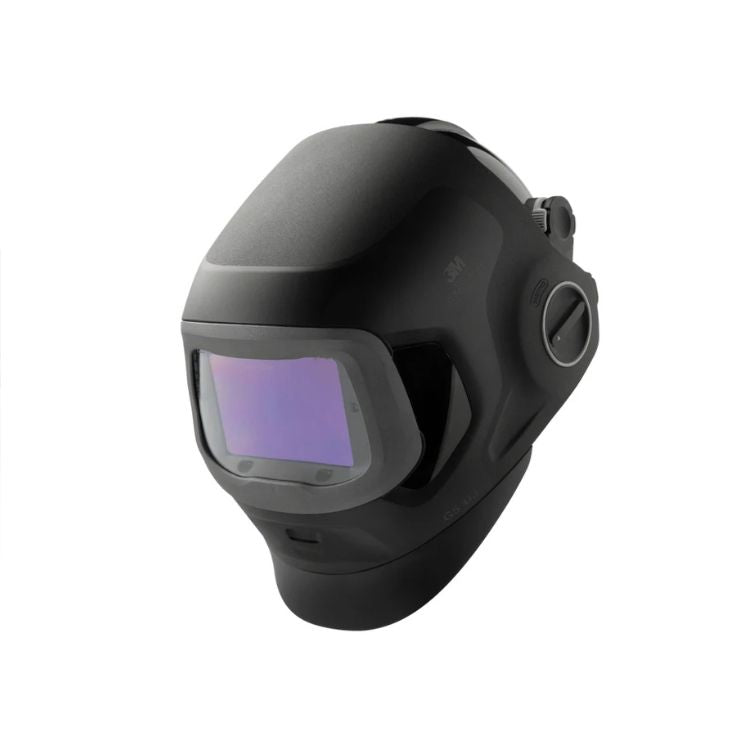

3M™ Speedglas™ Welding Helmet G5-03 Pro With G5-01/03vc Filter

The 3M™ Speedglas™ G5-03 Pro with G5-01/03VC Filter is suitable for a broad range of welding and cutting processes. Its variable shade range of 5–8 and 8–13 covers MIG (GMAW), TIG (GTAW), MMA (stick/SMAW), flux-cored arc welding (FCAW), and plasma cutting applications. The lower shade range (5–8) is particularly useful for lower-amperage TIG work and plasma cutting, where a standard shade 9–13 filter may render the weld pool unnecessarily dark and reduce visibility. The four-sensor arc detection system and 0.1 ms switching speed make the helmet equally reliable for high-frequency TIG starts and high-current MIG applications. Always verify the appropriate shade setting for your specific amperage and process against the manufacturer's shade selection guide before commencing work.

Yes. The 3M™ Speedglas™ G5-03 Pro helmet shell has been specifically designed to integrate with 3M™ Versaflo™ powered air-purifying respirator units, including the TR-300 and TR-600 series. This integration allows welders to achieve comprehensive protection — covering eyes, face, and respiratory tract — within a single, ergonomically balanced system without the discomfort of wearing a half- or full-face respirator beneath the helmet. When connected to a Versaflo PAPR, filtered air is delivered directly into the helmet, providing protection against welding fumes, particulates, and gases that fall within the assigned protection factor of the selected respirator unit. It is important to use only compatible 3M-approved connection components and to follow the assembly and fit-check instructions in the product documentation to ensure an effective seal and uninterrupted airflow.

The G5-01/03VC auto-darkening filter features externally accessible controls, typically located on the inner or outer face of the filter housing, that allow the welder to independently adjust three key parameters: shade level, arc sensitivity, and delay (dark-to-light return time). The shade control sets the darkness level of the lens when the arc is active, selectable within the 5–8 or 8–13 range depending on the process and amperage. The sensitivity control adjusts how readily the sensors respond to arc light — a lower sensitivity setting is useful in environments with strong ambient light or multiple nearby arcs that could cause unwanted triggering, while a higher setting suits low-light or low-amperage situations. The delay control sets how long the lens remains dark after the arc extinguishes (range: 40–1200 ms), helping prevent retinal fatigue from rapid light-dark cycling during tack welding or intermittent arcing. Refer to the 3M product instruction sheet for exact control locations and recommended starting settings for common processes.

The G5-01/03VC auto-darkening filter carries an optical class rating of 1/1/1/2 in accordance with the European standard EN 379, which is also referenced in Australian and New Zealand welding eye protection standards. This four-number classification describes the optical quality of the filter across four categories: optical class (clarity and distortion), diffusion of light (haze and scatter), variations in luminous transmittance (consistency of shade across the lens surface), and angle dependence of luminous transmittance (consistency as the viewing angle changes). A rating of "1" in any category represents the highest achievable level of performance. The "2" in the fourth position (angle dependence) is common even among premium auto-darkening filters and indicates a minor, acceptable variation in shade at extreme viewing angles. In practical terms, the 1/1/1/2 rating means the G5-01/03VC delivers exceptionally clear, consistent, and low-distortion vision in both the light and dark states — reducing eye strain, improving weld quality, and supporting safer working conditions over extended shifts.
