SIP RS5.5-08-270BD ROTARY SCREW COMPRESSOR

Original price £2,999.00 - Original price £2,999.00
Original price
£2,999.00
£2,999.00 - £2,999.00
Current price £2,999.00

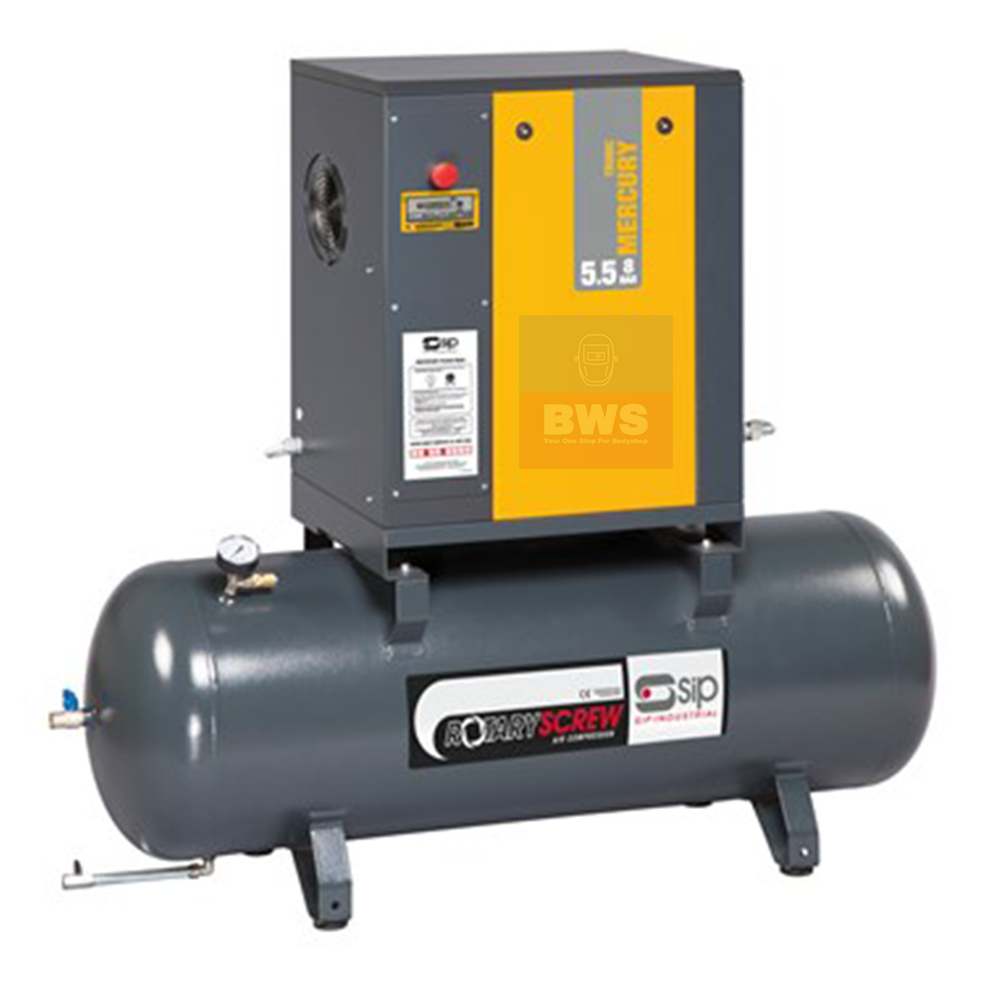

SIP RS5.5-08-270BD ROTARY SCREW COMPRESSOR 400V 200L

The SIP RS4.0-08-200BD Rotary Screw Compressor has an IE3 motor for reduced costs and lowers CO2 emissions, offering high performance whilst having 95% efficiency and 100% duty cycle.

  • 400v (20A) 3-phase input supply
  • 270ltr large receiver; 116psi (8bar) max. pressure
  • 25.4CFM (720ltr/min) max. free air delivery (FAD)
  • 7.5hp (5.5kW) IE3 motor with Italian-made air ends
    for constant airflow, reduced costs and CO2 emissions
  • Electronic control; digital display showing the main unit
    measurement, including hours, pressure, temperature
  • POLY-V belt-driven transmission for lower power losses
  • Silenced cabinet enclosure; helps maintain the internal
    temperature and reduce overall noise levels; 60dB(A)
  • Front and rear access panels for easy maintenance
  • High 95% efficiency and 100% duty cycle
  • 100% UK tested before dispatch
  • Made in Italy / 2-year warranty


     Don't Forget Your Anti-vibration mounts

        TECHNICAL DESCRIPTION
        Input Supply

        400v(20amp)

        Motor Power 5.5hp (4kW)
        Receiver Size 270litres
        Piston Displacement
        20.5CFM (580 litres/min)
        Max. Free Air Delivery 8.5CFM (240 litres/min)
        Max. Pressure 116psi (10 bar)
        Noise Level 64dB(A)
        Gross Weight 230kg
        Packaged Dimensions 1460 x 1525 x 610m
