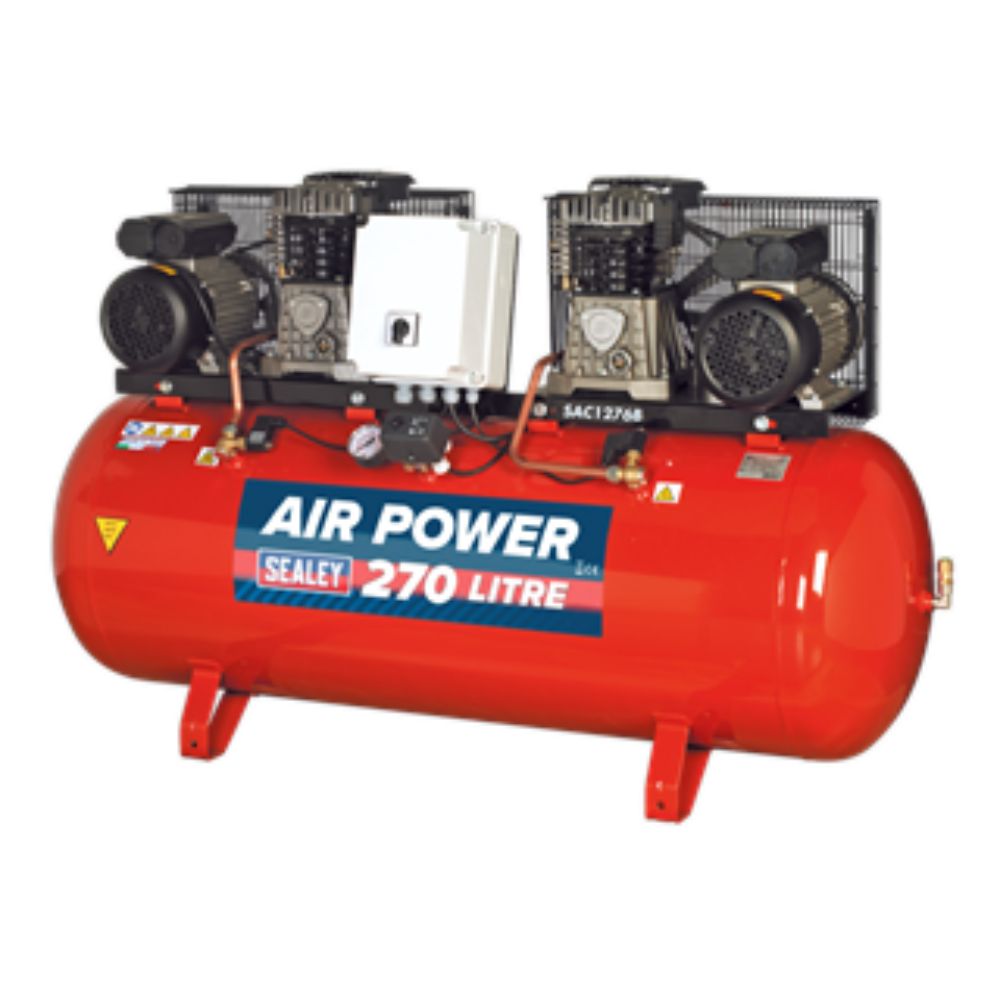

SEALEY SAC 1276B COMPRESSOR 3HP 270L 230V

Price Exc Tax

SEALEY 2 x Belt Drive Compressor With Cast Cylinders 230V

  • High output unit suitable for the professional workshop.
  •  Fitted with two genuine 3hp motors and two identical pumps.
  • Twin capacitors and a centrifugal switch aid trouble-free starting on a 230V 32Amp supply.
  • This unit is supplied with a control box featuring a stepped start-up to prevent high Amp spikes.
  • Pumps feature heavy-duty full-cast cylinders, capped by alloy heads for improved heat dissipation and long life.
  • Heavy-duty drive guards protect the belt and flywheel that are designed to force air over the pump to aid cooling.

Don't Forget Your Anti-vibration mounts

Parts List SAC2420E110V  Parts diagram
Instructions SAC2420E110V  Parts diagram

Manufacturer: SEALEY
Part No. SAC1276B
Air Displacement: 26.8cfm
Maximum Free Air Delivery: 19.4 cfm
Maximum Pressure: 10bar
Minimum Rated Supply: 32A
Motor Output: 3hp (x2)
Nett Weight: 76kg
Outlet: 1/2"BSP Female Tap
Phase: 1ph
Receiver Capacity: 270L
Size (W x D x H): 1550 x 540 x 935mm
Speed: 1636rpm
Supply: 230V
