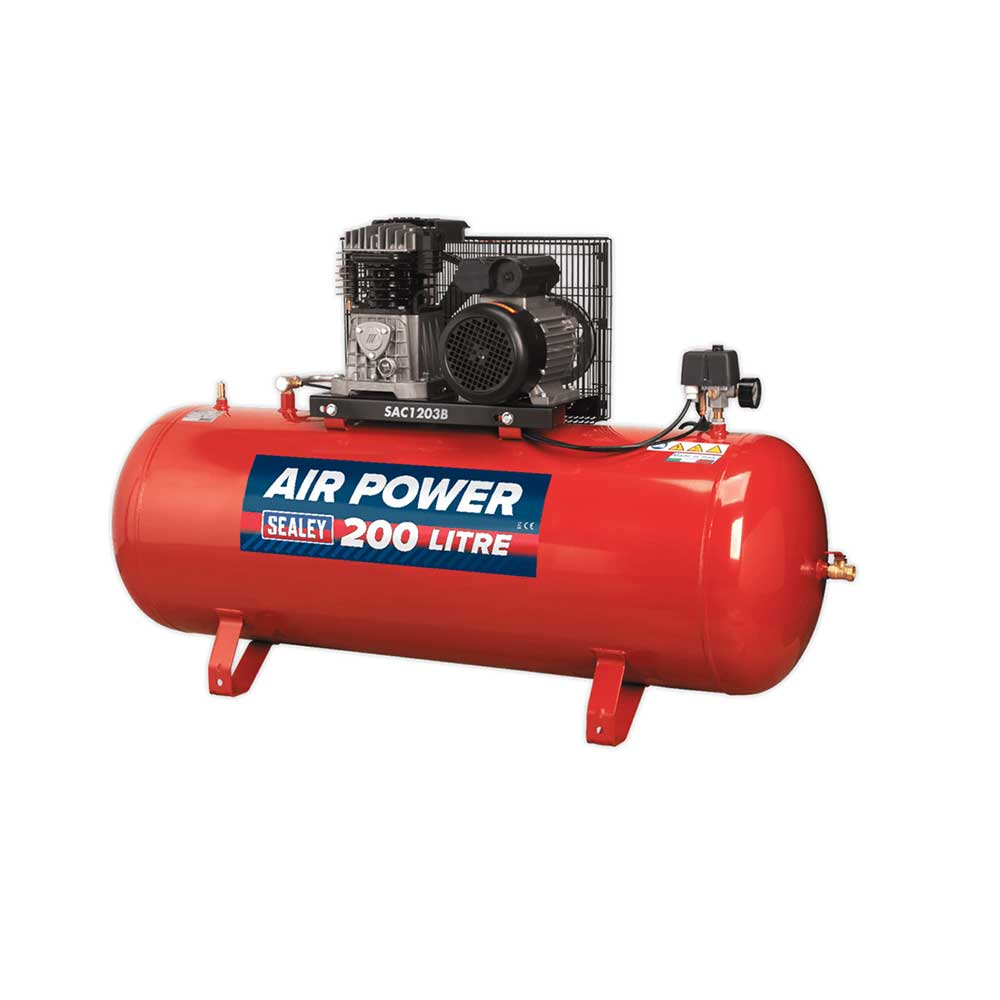

SEALEY SAC1203B COMPRESSOR 3HP 200L 230V

Price Exc Tax

SEALEY BELT DRIVE COMPRESSOR SAC1203B WITH CAST CYLINDERS 230V

  • Suitable for the professional workshop, these units are fitted with a genuine 3hp motor.
  • Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply. Pumps feature heavy-duty full-cast cylinders, capped by alloy heads for improved heat dissipation and long life.
  • Heavy-duty drive guards protect the belt and flywheel that is designed to force air over the pump to aid cooling.
  • Supplied with full CE certification, test certificates, and operating/maintenance manual.
Don't Forget Your Anti-vibration mounts
Calculating CFM for a compressor
Parts List SAC2420E110V  Parts diagram



Manufacturer: SEALEY
Part No. SAC1203B
Air Displacement: 13.4 cfm
Maximum Free Air Delivery: 8.25 cfm
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 13A
Motor Output: 3hp
Nett Weight: 90kg
Outlet: 1/2"BSP Female Tap
Phase: 1ph
Receiver Capacity: 200L
Size (W x D x H): 10 x 440 x 865mm
Speed: 1630rpm
Supply: 230V
