MOSA MagicWeld 150 Petrol Welder Generator 110V

Price Exc Tax

Welder Generator Site Package 150A (1.5kW-110V)

SKU 35.22264

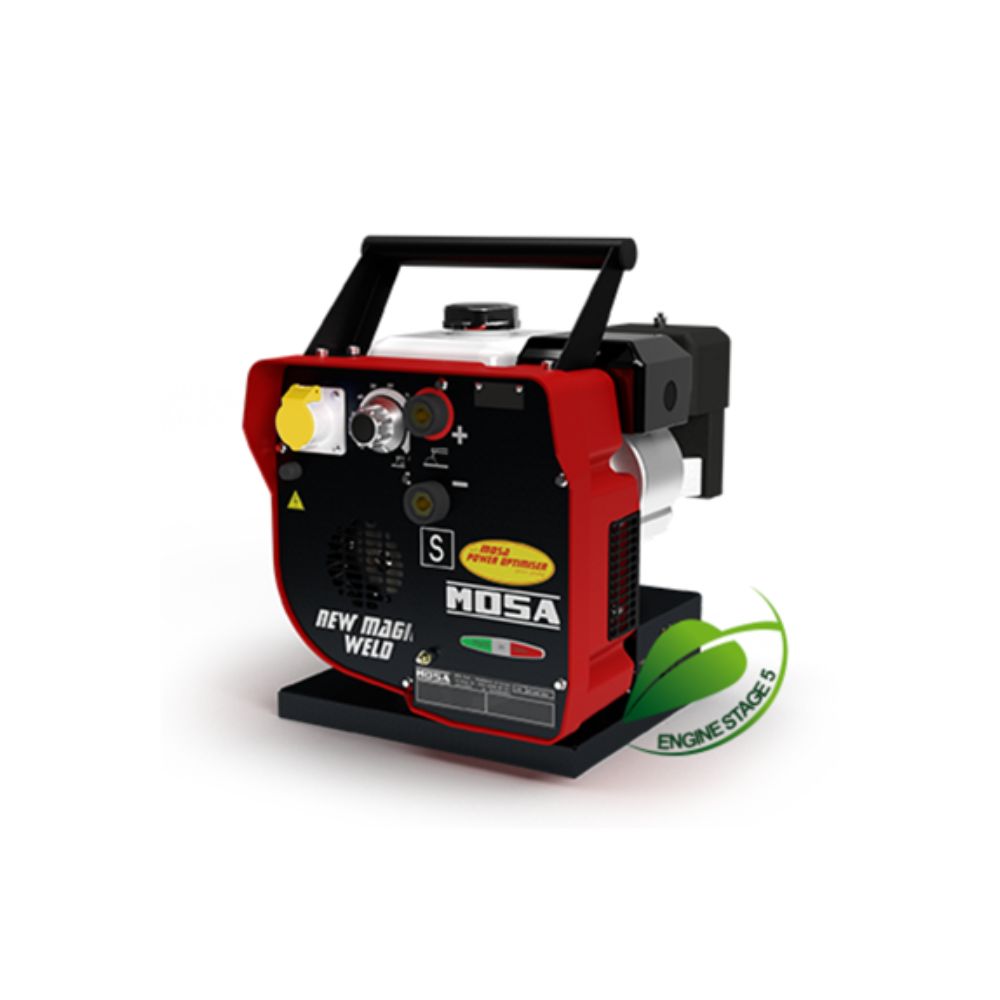

MOSA model Magicweld 150 is a mobile compact petrol-generating set, designed for site work.  It gives a respectable 150Amps output and 110v supply.

It's fitted with an excellent Honda GX engine for long life.

 BROCHURE GE SX 9000 Brochure



Arc welding source in D.C. welding
• Welds any type of electrode, including cellulosic
• High frequency control of welding current and voltage
• D.C. generator
• Chopped D.C. auxiliary current (safe for tools) - 110V
• Engine shut-down (oil alert)
• MOSA Power optimiser (patent pending)
• Auto Idle
• Portable (34 kg)
• Meets EC directives

Single-phase power 1.5 kW / 110 V c.c. / 13.6 A
Insulation class H

ENGINE - Petrol, 4-stroke, OHV, air cooled
Model. Honda GX 200
* Output. 4 kW (5.5 HP)
Cylinders / Displacement. 1 / 196 cm³
Speed. 4000 rpm.
Fuel consumption (welding 60%). 1.1 l/h
* Maximum output (not overloadable) according to SAE J1349.
Tank capacity. 3.1 l
Running time (welding 60%). 3 h
IP protection degree. IP 23
* Dimensions LxWxH (mm). 420x360x480
* Dry weight. 34 kg
** Acoustic power LwA (pressure LpA). 99 dB(A)

1xMOSA MagicWeld 150 Petrol Welder Generator 110V
