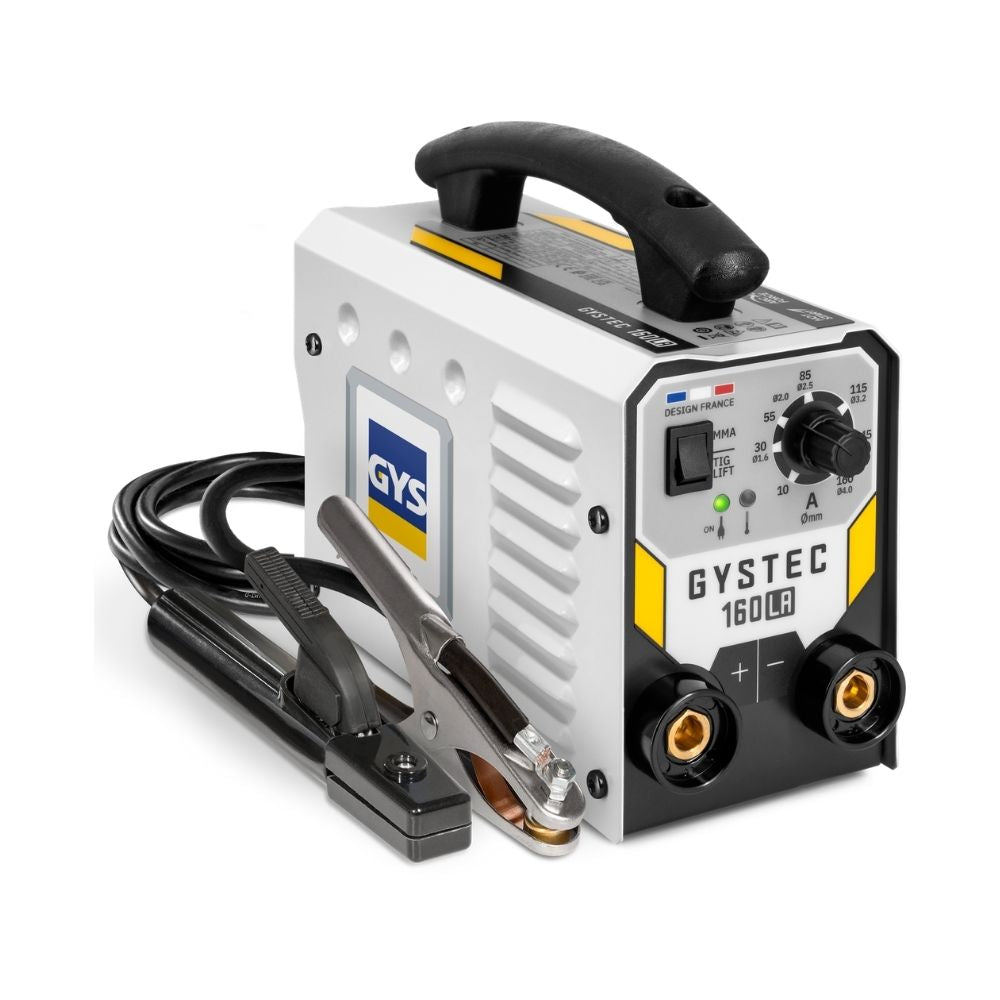

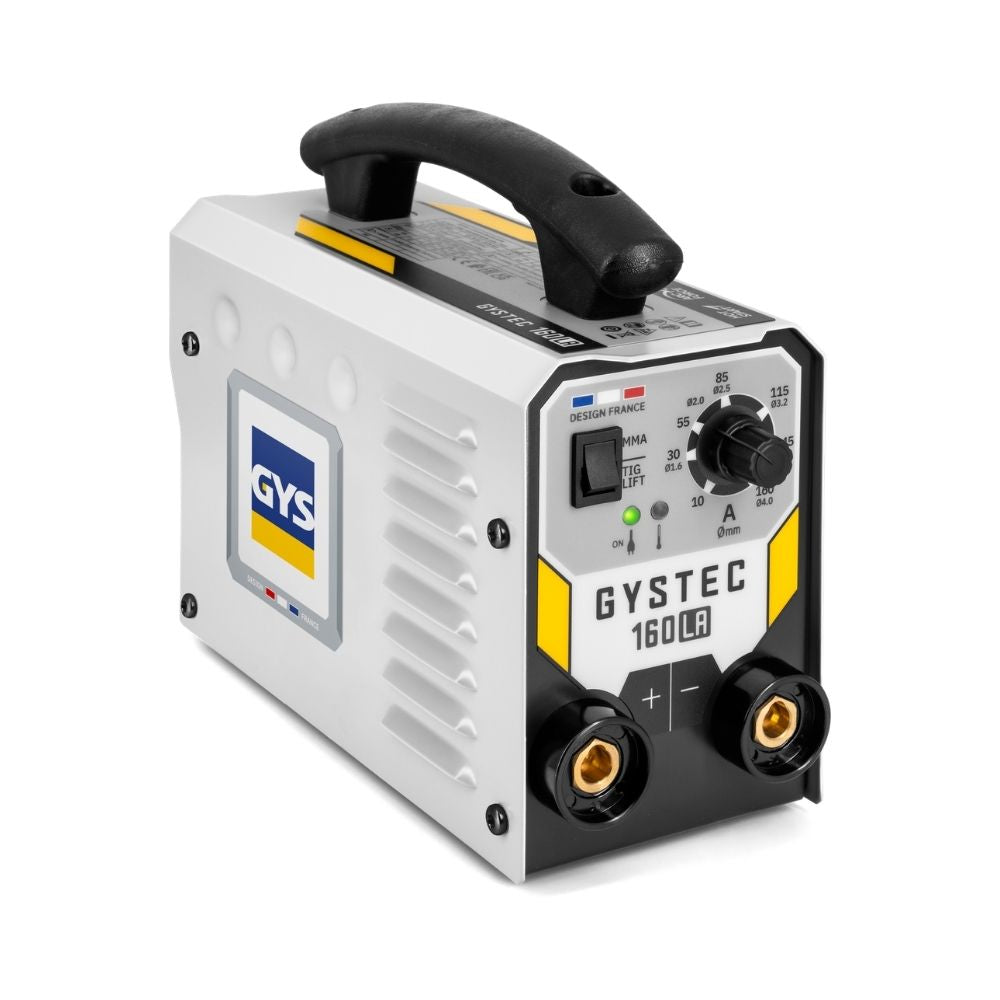

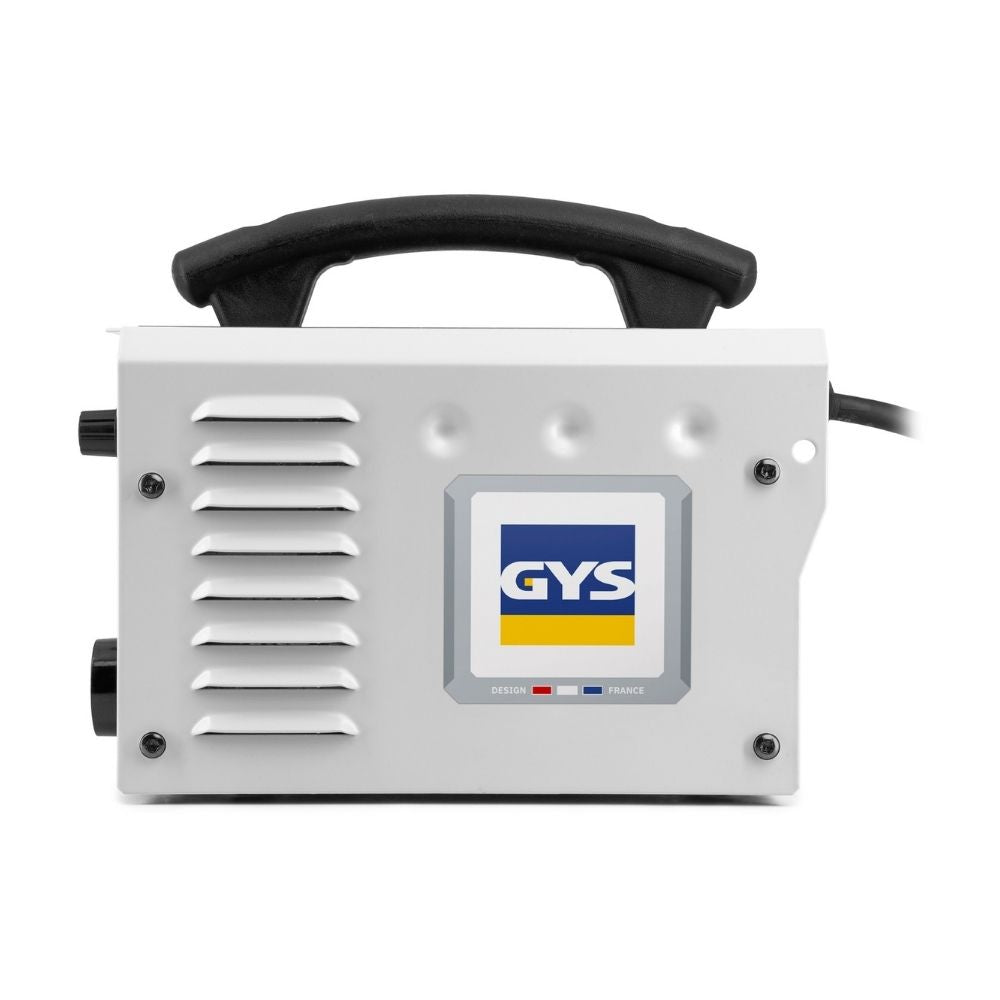

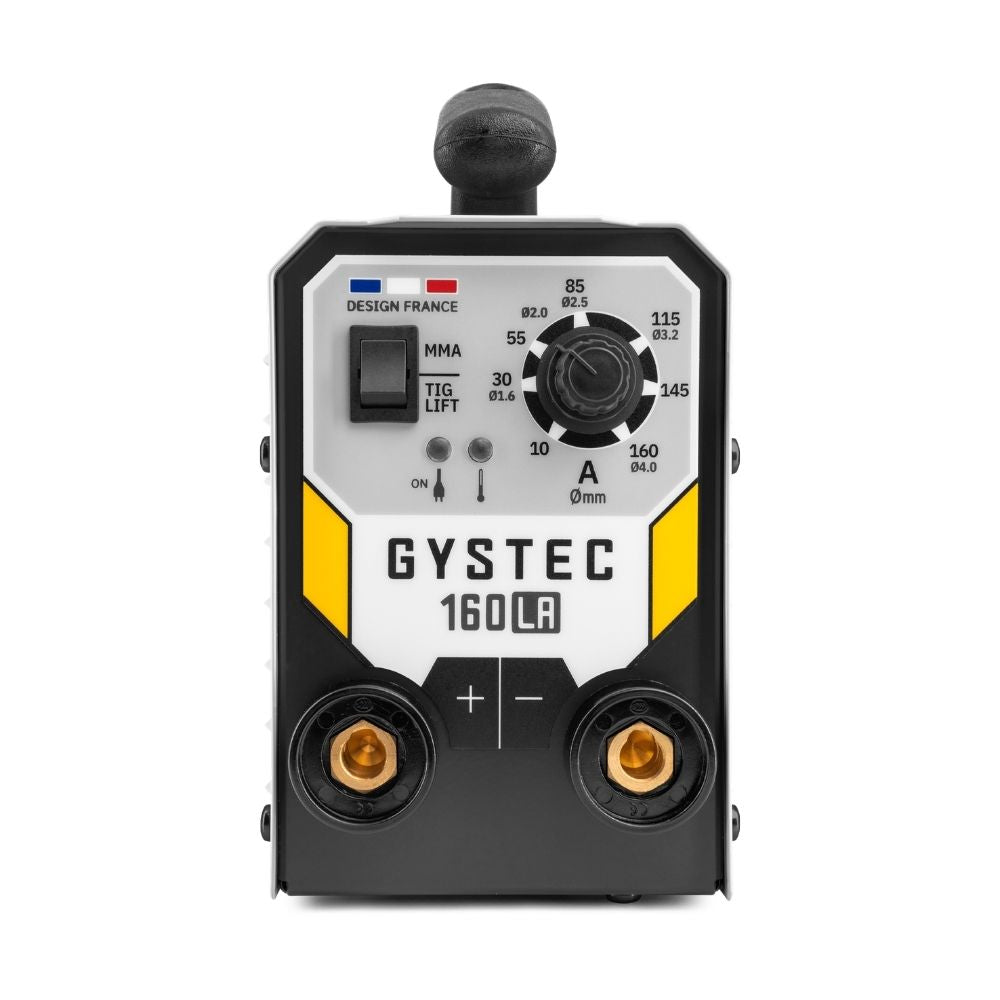

GYSTEC 160 LA
Prices Exclude Tax
Ultra-Portable 160A Single-Phase MMA & TIG Lift Welding System
The GYSTEC 160 LA is a compact single-phase inverter welder designed for professional maintenance, fabrication, and on-site repair work. Featuring advanced IGBT inverter technology, it delivers stable and consistent welding performance with a current range of 10 to 160 amps. The high open-circuit voltage ensures immediate arc ignition, while constant current output guarantees smooth fusion and excellent weld quality on mild steel, stainless steel, and cast iron up to 10 mm thick. Offering both MMA and TIG Lift welding modes, the unit provides versatility for a wide range of applications, including precision welding on thin materials without tungsten contamination. Integrated welding aids such as Hot Start, Arc Force, and Anti-Sticking enhance usability and arc control. Weighing just 3 kg with a compact footprint and generator compatibility (±15%), the GYSTEC 160 LA is engineered for reliable performance in workshops or remote job sites.
WHY BUY FROM BWS?
Specification
- Welding current range: 10 – 160 A
- Power supply: 230V single-phase (16A)
- Duty cycle: 160 A @ 60%
- Electrode diameter range: Ø 1.6 – 4.0 mm
- Welding modes: MMA and TIG Lift
- Generator compatible (±15%)
- Protection rating: IP21
- Dimensions: 23 x 19.5 x 10 cm
- Weight: 4.64 kg
Features
- Advanced IGBT inverter technology for stable arc performance
- Immediate ignition via high open-circuit voltage
- Hot Start for easier arc initiation
- Arc Force control for improved penetration
- Anti-Sticking function to reduce electrode seizure
- Ultra-portable compact design with integrated carry handle
- Single potentiometer control for simple current adjustment
- Overcurrent protection for enhanced durability
- TIG Lift capability for precision thin-sheet welding
FAQs
1. What materials can the GYSTEC 160 LA weld?
It is suitable for welding mild steel, stainless steel, and cast iron up to approximately 10 mm thickness.
2. What electrode sizes are supported?
The unit supports coated electrodes from Ø1.6 mm up to Ø4.0 mm, including rutile and basic types.
3. Can this welder be used with a generator?
Yes, it is compatible with generators and protected against voltage fluctuations of ±15%.
4. Is TIG welding possible with this machine?
Yes, the GYSTEC 160 LA features TIG Lift functionality when used with an optional TIG torch (TIG17 valve torch, 4 m).
