GYSPRESS BLIND RIVET ADAPTER 24kn

Price Exc Tax

Flexible Blind Rivets Adapter For 10T, Push-Pull Rivet Tools

Flexible extension For Installing Blind, POP and Break-stem Rivets

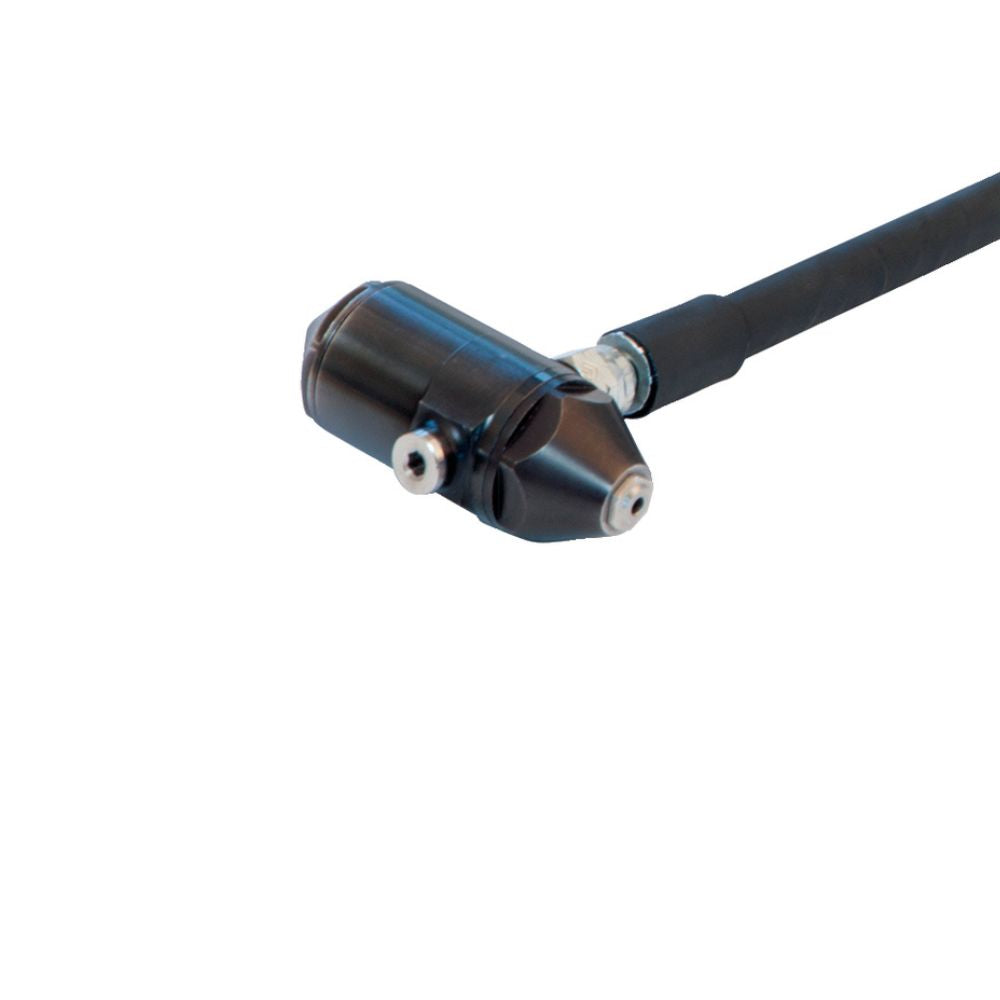

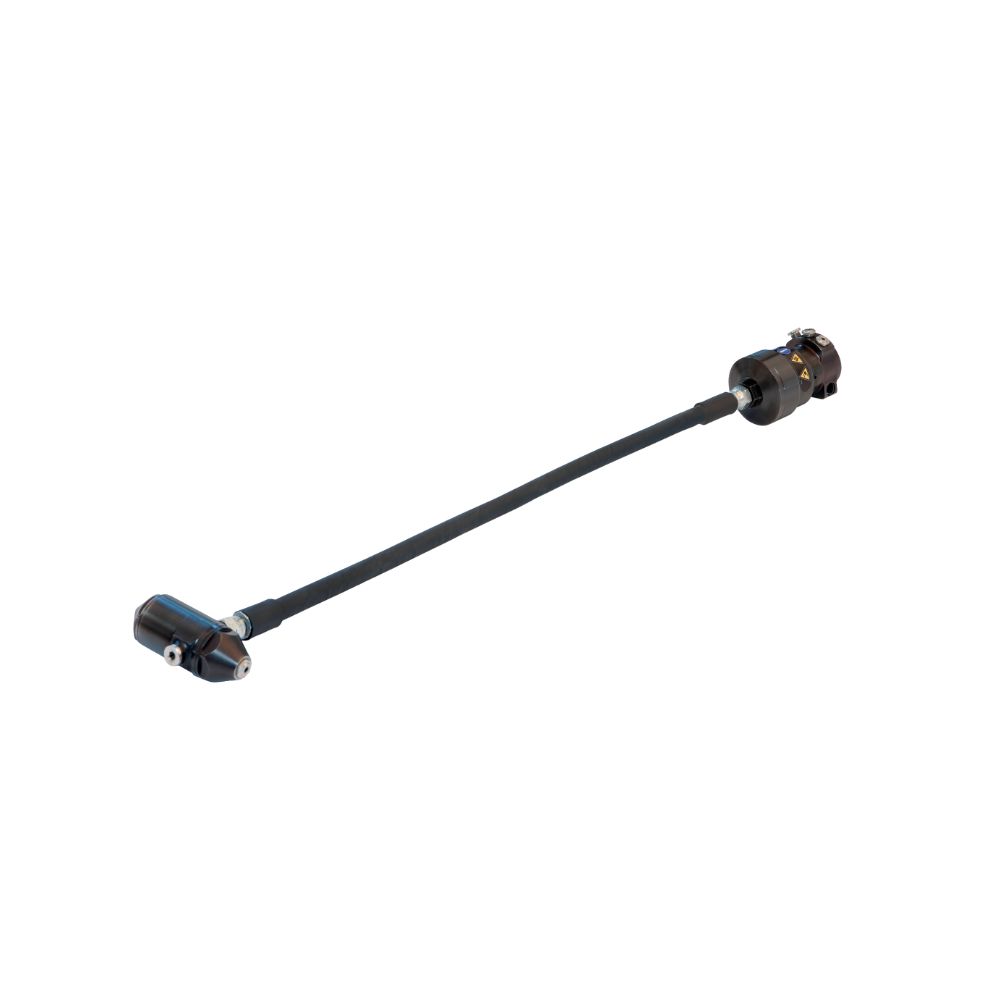

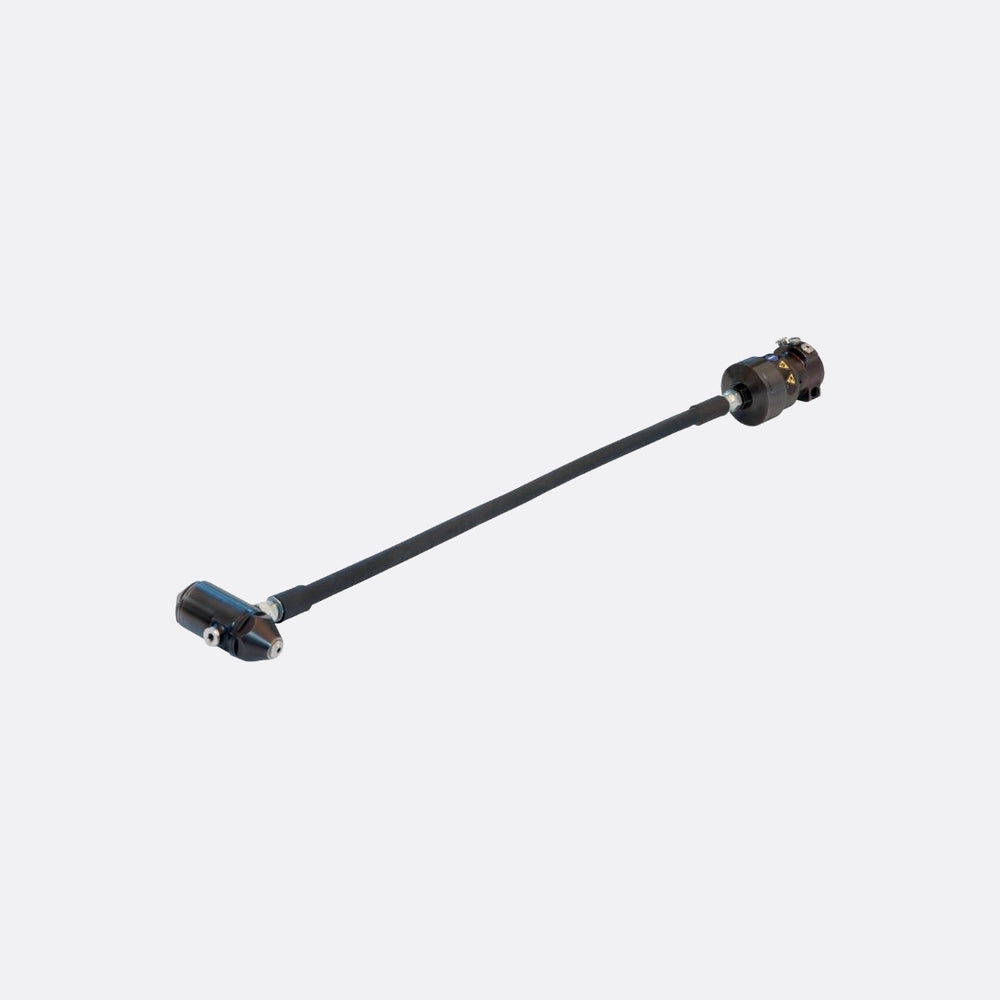

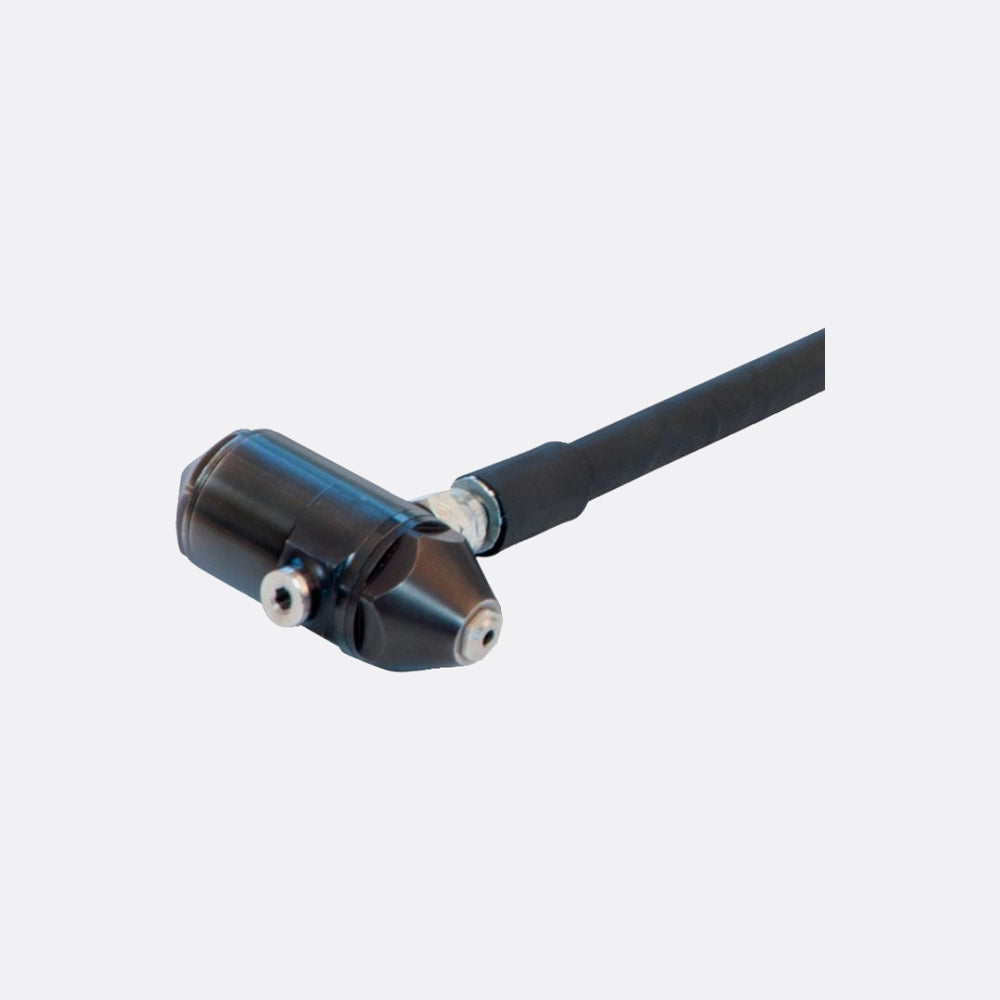

The blind rivet adapter is designed to provide flexibility when using GYSPRESS   10T rivet tool for installing blind, POP, and break-stem rivets. It has a tensile force of 24 kN and enables the installation of blind rivets with diameters ranging from 4.0 to 7.8 mm for aluminium and 4.0 to 6.4 mm for steel.

The head can rotate 360 degrees.

FITTING CAPACITY

Aluminium: Ø 4.0 to 7.8 mm

Steel: 4.0 to 6.4 mm

COMPATABILITY

This adapter is compatible with all GYS riveting machines

ACCESSORIES

Nozzle  Size Reference
3.2mm 059221
3.6mm 0059238
4.0mm 059245
4.5mm 059252

SPECIFICATION
Pressure Max. 25Kn @8 bar
Dimensions 1300x300x70mm
Weight 2.25kg
Part No.  063822
Download GYSpress 25kn Blind Rivet adapter manual download
