GYSmeter Measuring System

GYSmeter Measuring System

£1,350.00
£1,350.00 £0.00
Shipping calculated at checkout.

GYSMeter Measuring System is a digital underbody measuring tool for quick body alignment diagnosis on unibody and frame repairs in professional workshops.

Key Features

  • Digital display measuring system
  • Quick underbody diagnosis
  • Length, symmetry, cross-checks
  • Single-operator workshop use
  • Magnetic self-centring attachment
  • Free or comparative measurements
Technical Support

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Delivery + Returns

Returns details can be edited in the theme editor.
Service engineers

Service

In-house engineers

Technical support

Support

0161 223 1843

Technical Features

  • Digital underbody measuring system for quick diagnosis of vehicle chassis alignment, frame damage and collision deformation

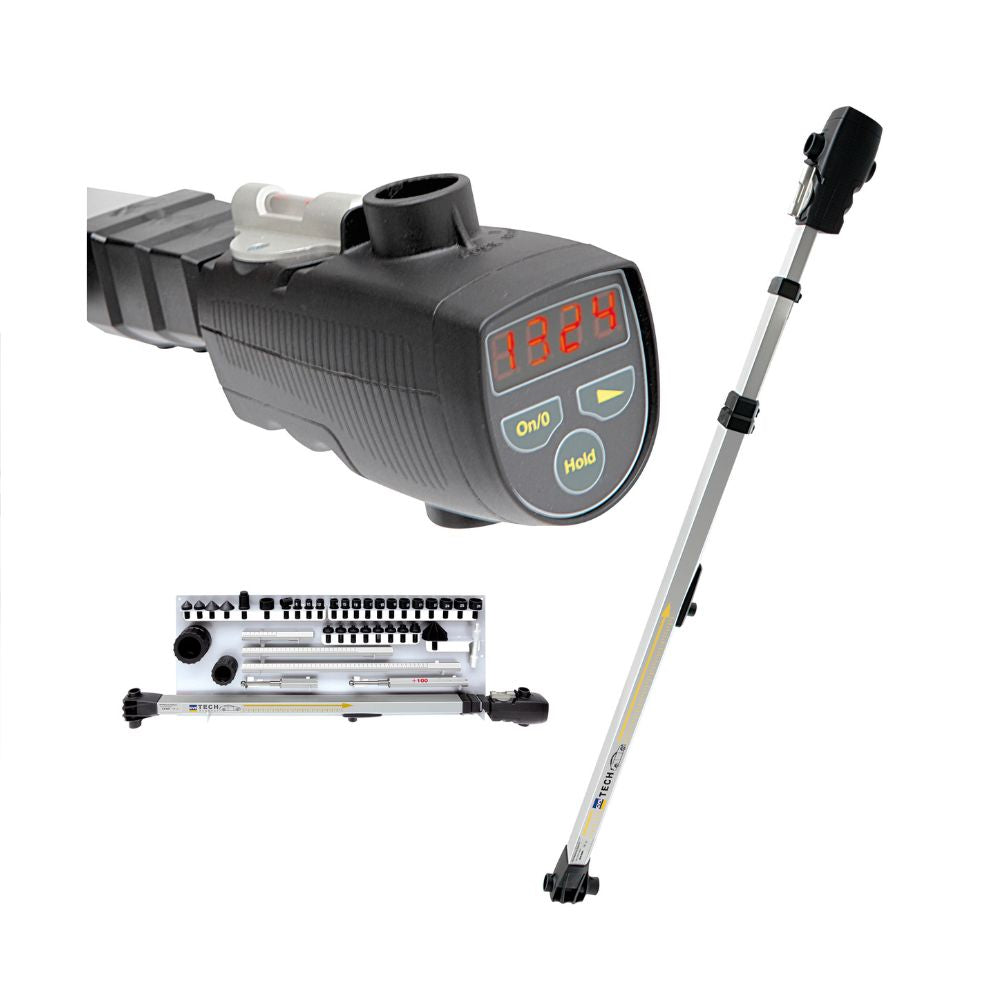

  • Electronic measuring arm with clear digital display for easy reading of length, symmetry and crosscheck dimensions under the vehicle
  • Allows free measurements between any two points or comparative measurements against manufacturer data sheets without dismantling vehicle components
  • Measurement range designed for underbody use, covering typical collision repair spans from short pointtopoint checks to full crosscar measurements
  • Patented selfcentring magnetic attachment system for fast, repeatable mounting on OEM datum points and underbody magnet points
  • Lightweight measuring arm and components to make handling easier when working alone under lifts, benches or frame racks
  • Singleoperator use enabled by magnetic mounts, digital readout and simple key controls, reducing manpower needed for chassis diagnosis
  • Supplied as a complete measuring kit with rack, magnetic mounts, datum rods, measuring rods and a wide set of adaptors and tips to suit multiple OEM measuring points
  • Multiple rod and adaptor combinations to reach difficult datum holes, slots and frame points commonly found on modern unibody vehicles
  • Hold function on the digital display to freeze readings when the screen is not directly visible, useful when working in confined areas or awkward positions
  • Zero and calibration procedure on the measuring arm to ensure consistent starting reference and reliable comparison to vehicle data sheets
  • Designed for use on lifts, straightening benches and frame racks so the same tool can be used throughout the repair process from initial check to final verification
  • Online GYS TECH software for entering measured values, verifying against vehicle data and generating printable PDF reports for traceability and insurance documentation
  • Digital reporting capability that supports workshop recordkeeping, quality control and evidence of structural alignment for customers and insurers
  • Batterypowered operation using standard AA cells, avoiding trailing leads and allowing easy use around the vehicle and under the chassis
  • Robust construction suitable for daily professional bodyshop use, with components designed to withstand typical workshop handling and storage
  • Magnetic mounting method that avoids drilling or clamping to the vehicle structure, helping preserve OEM corrosion protection and access points
  • Capable of checking sidetoside symmetry by measuring from each magnetic mount to equivalent points on the opposite side and comparing digital readings
  • Useful for confirming correct pull direction and amount on straightening benches by repeatedly measuring the same points during the repair
  • Enables quick prerepair frame and underbody assessment to decide if a vehicle is repairable and to plan anchor and pull positions
  • Supports postrepair verification to confirm that key datum points are back within tolerance before reassembly and delivery
  • Compatible with OEM measurement sheets and body data, allowing use alongside manufacturer repair procedures in professional bodyshops
  • Clear, simple keypad and user interface designed so technicians can learn the tool quickly without extensive training
  • Storage rack included to keep rods, tips and adaptors organised and accessible, reducing setup time and helping prevent loss of small parts
  • Suitable for steel and many mixedmaterial underbody structures where magnetic attachment is possible, common in modern collision repair work
  • Compact measuring head and arm profile to fit between suspension, exhaust and crossmembers for underbody checks without major stripdown
  • Provides precise pointtopoint measurement for diagnosing twist, sag and diamond in vehicle frames and unibody structures
  • Assists in checking alignment after installing new chassis legs, crossmembers or structural panels by comparing to baseline or OEM measurements
  • Designed to complement professional pulling systems and benches supplied and supported by BWS, forming part of a complete structural repair setup
Bodyshop Equipment Engineers

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Specification

Brand
GYS
Model
GYSMETER 052093
Product Type
Electronic vehicle body and frame measuring system
Measurement Type
Underbody length, symmetry, and cross-check measurements
Measurement Range
400–2650 mm
Display Type
Digital display
Power Supply
2 x AA 1.5V batteries
Operating Mode
Single-operator use
Primary Application
Measurement and checking of vehicle unibody and frame dimensions
Included Rack
1 rack
Included Magnetic Mounts
2 magnetic mounts
Included Datum Rods
2 datum rods
Included Measuring Rods
3 measuring rods
Included Adaptors and Tips
31 adaptors and measuring tips
Attachment System
Self-centring magnetic attachment system
Software
GYS TECH software for measurement validation and reporting

FAQs

What does the GYSmeter Measuring System actually do in a bodyshop or workshop?
The GYSmeter is a compact digital tram gauge for underbody and chassis measurement, used to check length, symmetry and cross measurements on vehicle frames during collision repair. It lets you quickly compare actual dimensions to OEM data sheets, so you can confirm damage, monitor straightening work and document final alignment on lifts, benches or frame racks.
Can one technician operate the GYSmeter or does it need two people?
It is designed for single-person operation. The lightweight measuring arm, self-centring magnetic attachments and clear digital display allow one technician to position the datum rods and adaptors, take readings between points, and use the hold function where needed without a second person holding gauges or tapes under the vehicle.

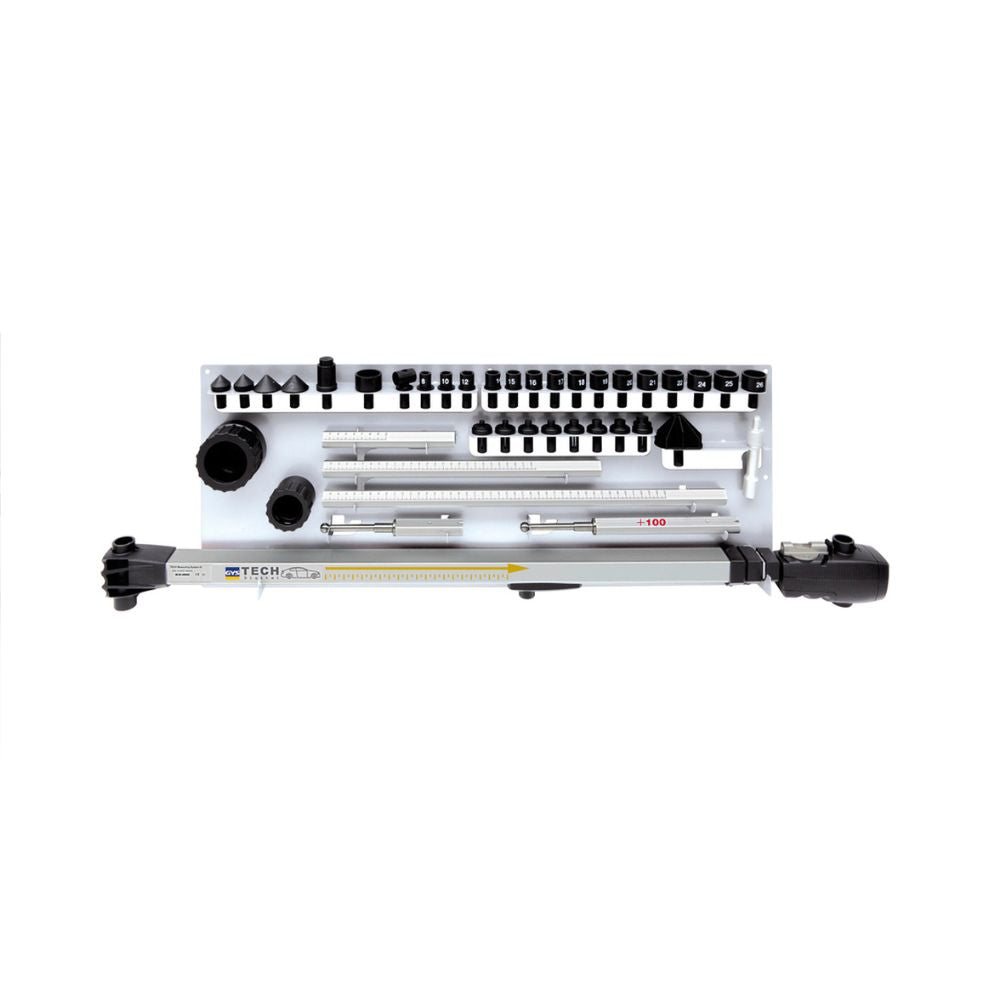

What is supplied with the GYSmeter Measuring System and do I need anything else to start using it?
The system is supplied complete for workshop use: 1 rack, 2 magnetic mounts, 2 datum rods, 3 measuring rods and 31 adaptors and tips to pick up common manufacturer measuring points on the vehicle. It runs on 2 x AA batteries, so apart from a PC for the validation/report software and access to vehicle data sheets, there is no extra hardware required to begin measuring.

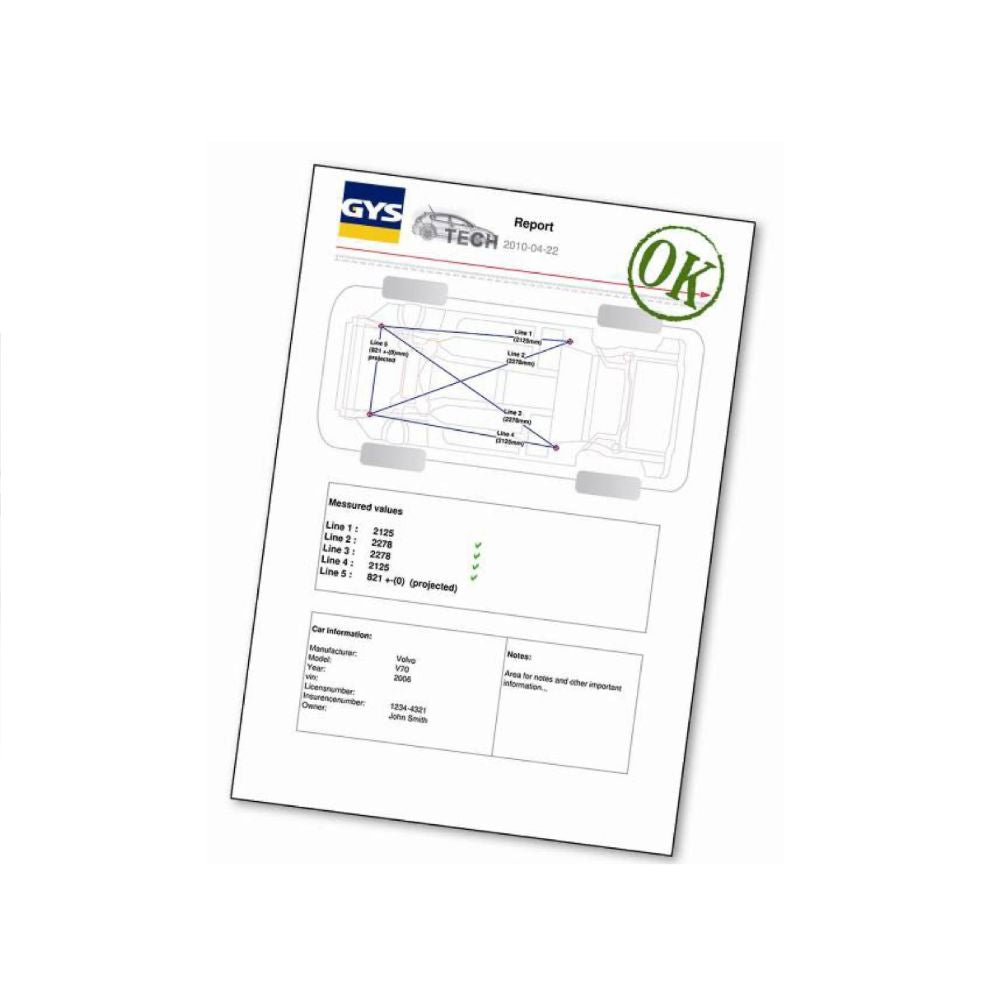

How does the software and reporting work for insurance and customer documentation?
GYS TECH software is available to download and is used to validate the measurements you take with the GYSmeter. You enter the readings against the vehicle’s reference data, run a verification check, then generate a PDF report showing the measured points, symmetry and cross checks. This report can be printed, saved or emailed as traceable evidence for the customer, insurer or internal quality records.

Expert Advice

Jason

Jason says

I’m Jason Bowes, Sales Director at BWS Ltd, and the GYSMeter Measuring System is a body measuring tool for checking vehicle underbody dimensions, symmetry and cross measurements in a workshop. I see it used on straightening jobs and structural checks where you need to compare the vehicle against the manufacturer’s dimensions before and after repair.

The main point is accurate setup. The height rod, tip selection and magnetic attachment all need to match the measurement point and the data sheet, otherwise the readings are only as good as the setup. On the bench it looks simple, but on a damaged shell access can be awkward, so the hold function and a disciplined measurement routine save time and avoid misreads.

The common issue I come across is people rushing the cross checks or using the wrong datum point. When it is used properly, it gives a reliable way to confirm alignment and keep structural repairs on the right side of manufacturer tolerances.
