GYS High-Efficiency Three Phase Welding Fume Extraction System

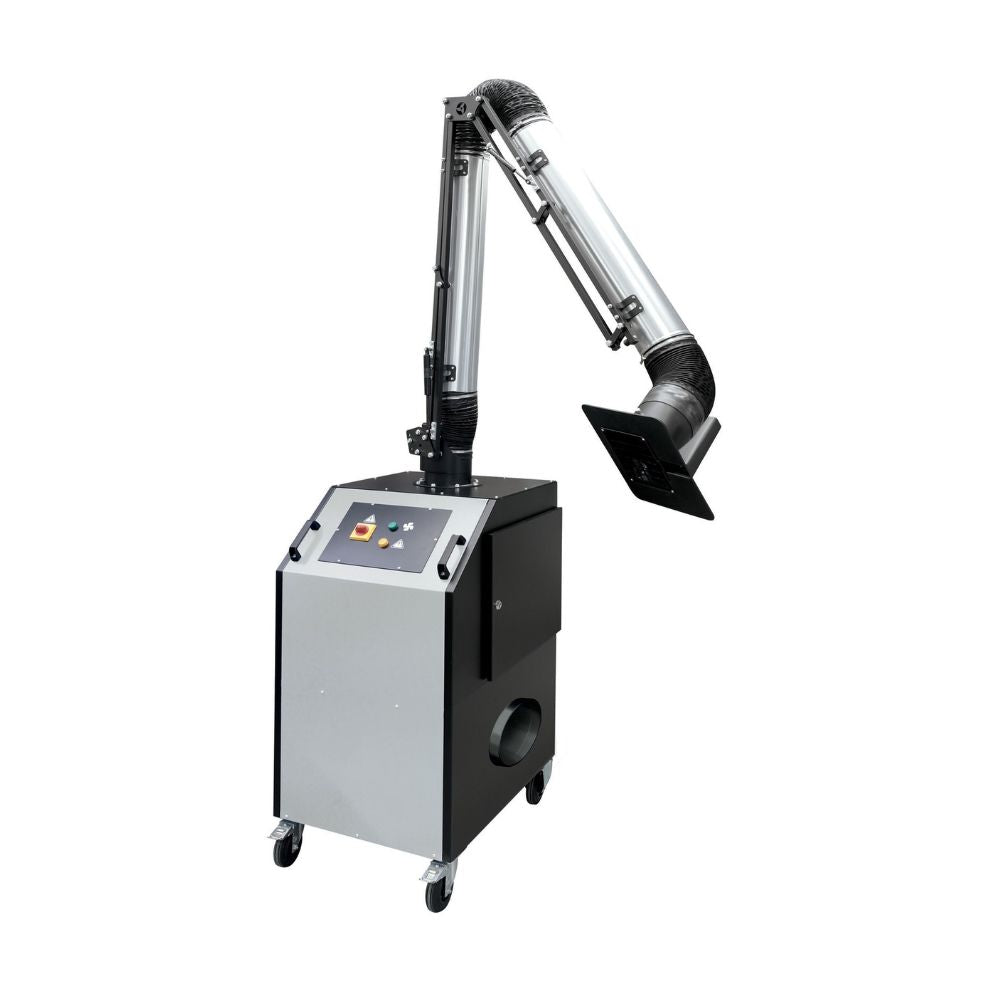

The UNI 2.0 Fume Extractor is a robust, high-performance three-phase extraction unit designed to efficiently capture and remove dry welding fumes directly at source. Manufactured in Italy and compliant with EN 60974-1, this system is engineered for demanding industrial welding environments. Supplied with a 160/3 articulated extraction arm, the UNI 2.0 provides precise, localised fume capture with a fully adjustable arm that pivots through 360°, ensuring optimal positioning during operation.
Constructed from reinforced steel and anodised 6061 aluminium alloy, the extractor offers excellent durability while remaining lightweight and easy to manoeuvre. The square extraction hood maximises airflow efficiency, while the multi-stage filtration system ensures effective particle separation before fumes are safely expelled outdoors. Designed for MMA, TIG, and MIG/MAG welding applications, the UNI 2.0 helps maintain a safer, cleaner working environment while reducing airborne contaminants at the source.
WHY BUY FROM BWS?
Specification
- Power supply: 400V, 3 Phase, 50/60 Hz
- Current consumption: 32 A
- Airflow capacity: up to 1,500 m³/h
- Sound level: 73 dB(A)
- Extraction arm diameter: Ø150 mm
- Filtration stages: 3-stage standard (optional carbon filter)
- Construction: Reinforced steel & anodised aluminium 6061
Features
- Designed for MMA, TIG, and MIG/MAG welding fumes
- 360° pivoting articulated extraction arm for precise positioning
- High-efficiency square extraction hood for maximum airflow
- Multi-stage filtration system for effective fume separation
- Outdoor fume rejection prevents workplace contamination
- Integrated control panel with filter obstruction alert
- Robust, lightweight construction for long-term industrial use
FAQs
1. What welding processes is the UNI 2.0 suitable for?
The UNI 2.0 is designed for MMA, TIG, and MIG/MAG welding applications, effectively capturing dry welding fumes at source.
2. Does the system filter fumes or vent them externally?
The extractor uses multi-stage filtration and is designed for external fume rejection, expelling fumes safely outside the building.
3. Is a carbon filter included as standard?
No, the carbon filter is optional and can be added if odour reduction is required.
4. Is the extraction arm adjustable?
Yes, the 160/3 extraction arm is fully adjustable and pivots 360° for optimal positioning.
