FRONIUS TRANSSTEEL 2200C MULTIPROCESS INVERTER

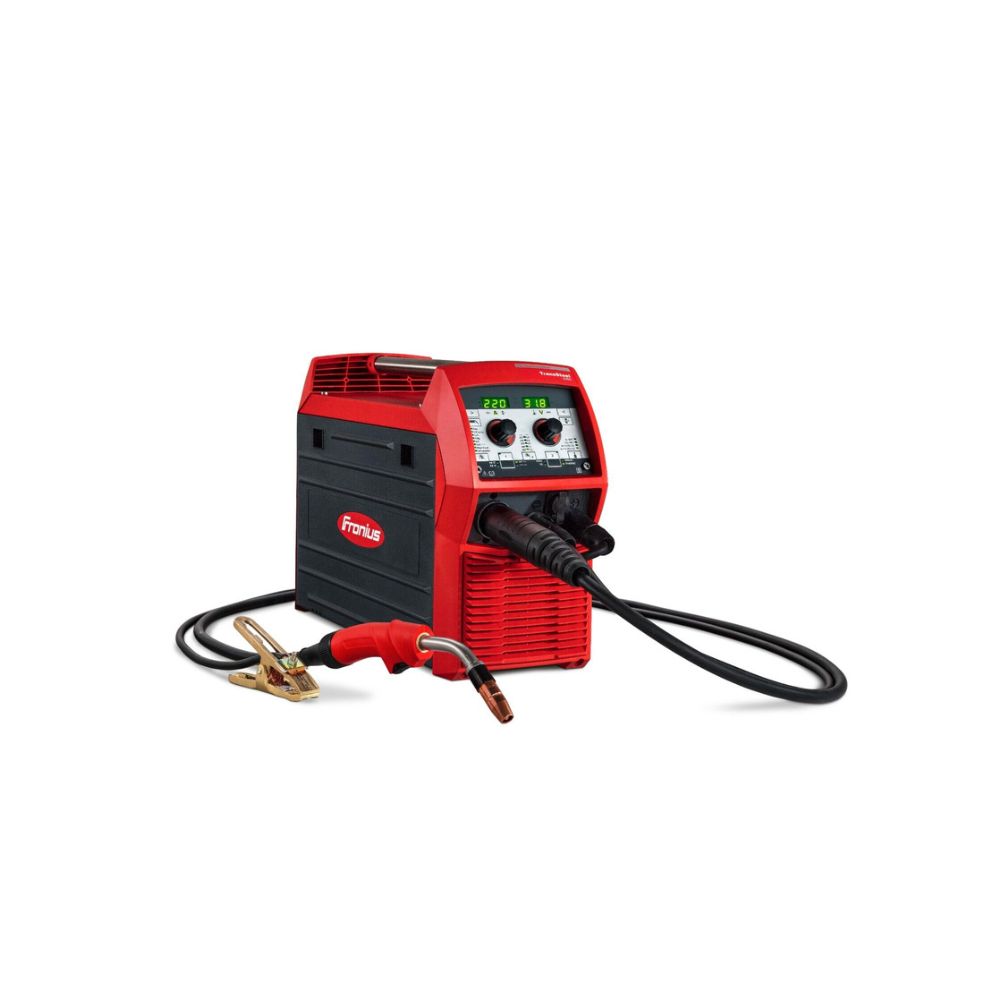

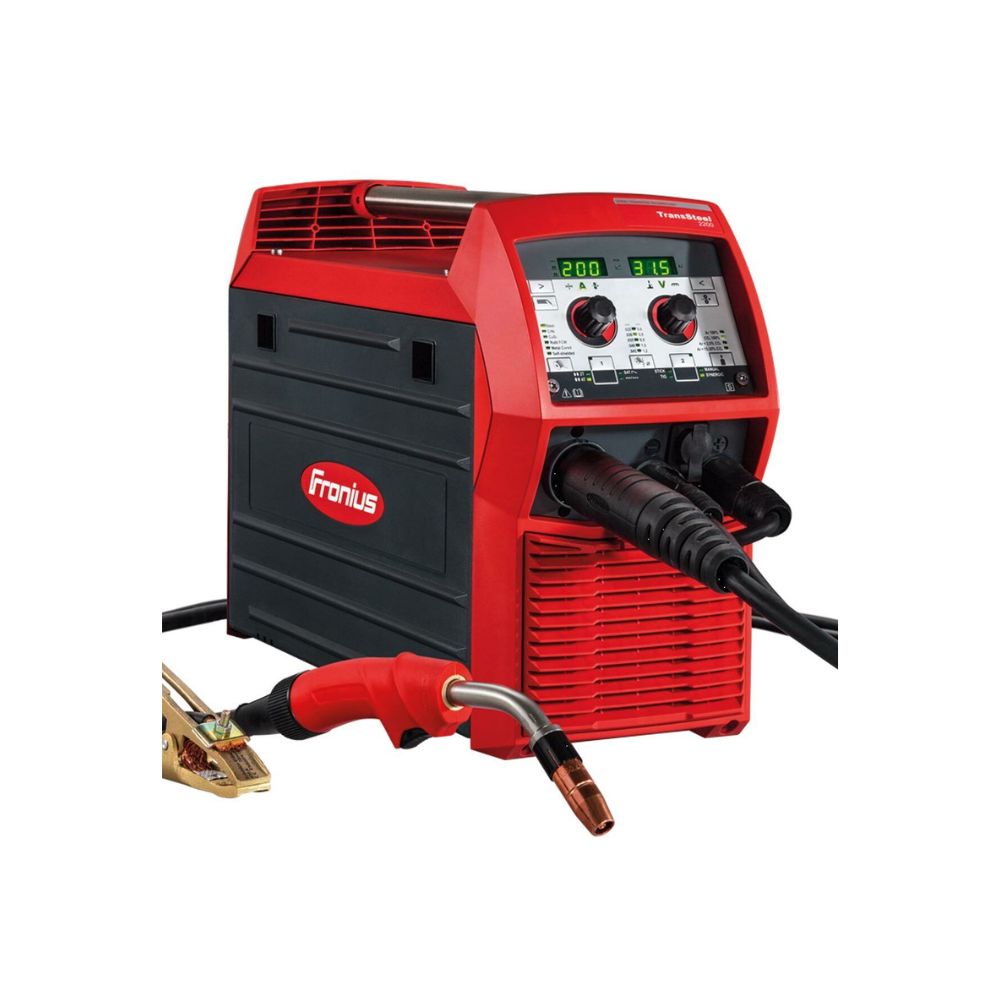

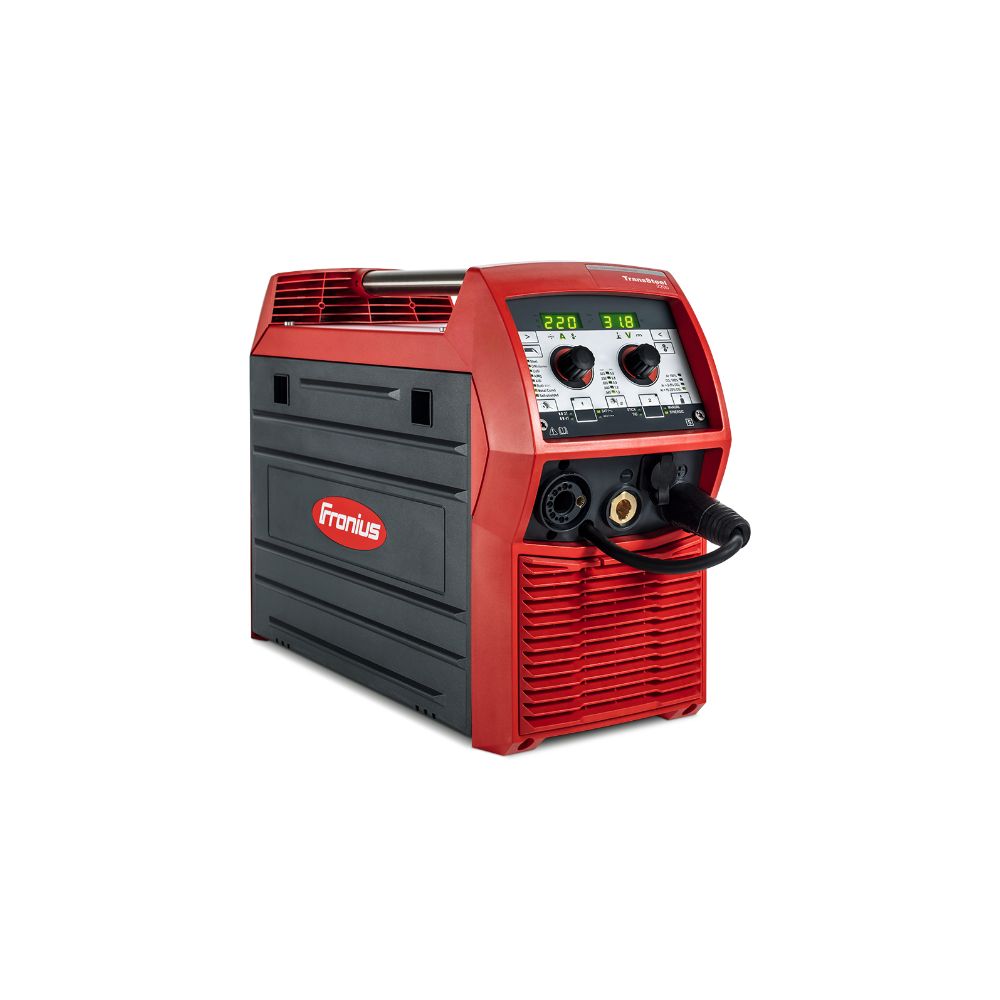

The Fronius TransSteel 2200 is a compact, 3-in-1 welding solution. It is the first single-phase inverter power source from Fronius that is also multiprocess-capable, bringing together MMA, MIG/MAG and TIG in a single device.
The Fronius TransSteel 2200 is characterised by the intelligent design of the device, ease of use, robustness and a high level of reliability. Weighing only 15.5 kg, it is also one of the lightest welders on the market.
- Multi-Process, MIG, MMA, TIG
- Advanced digital control

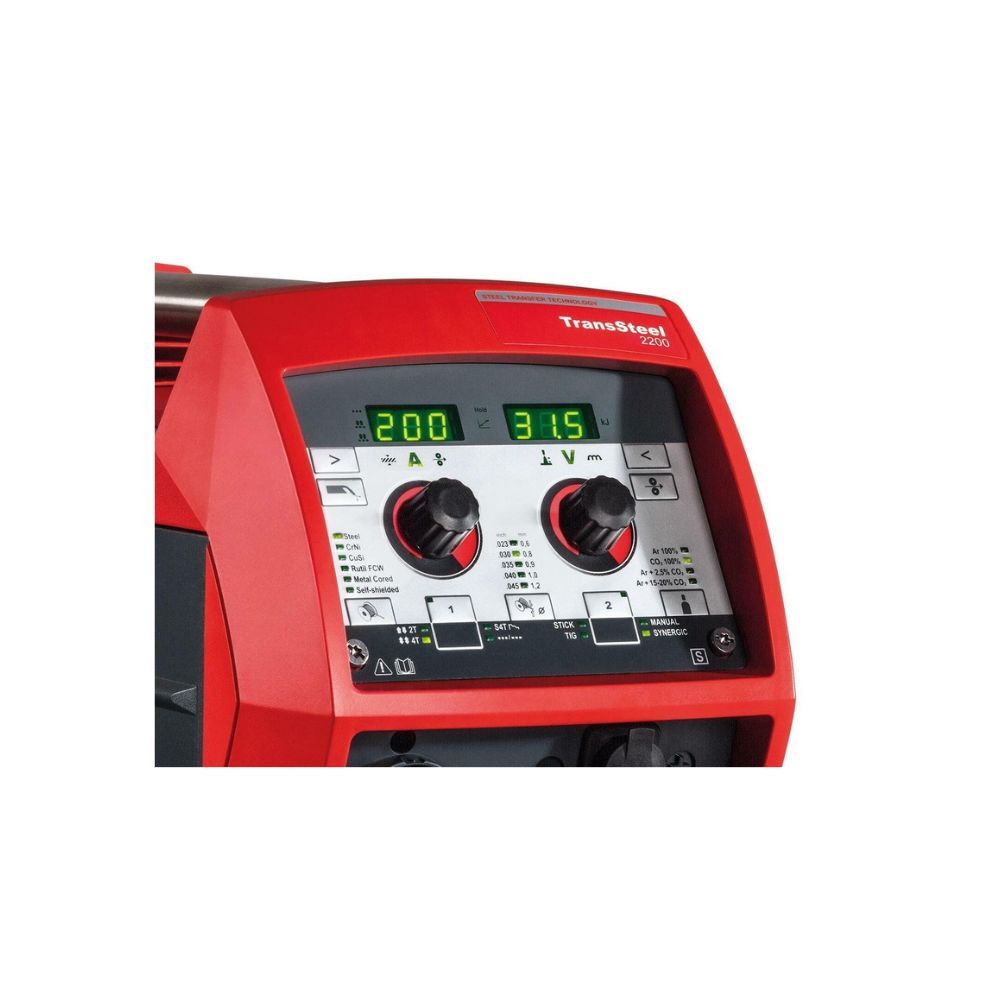

- Easy to use the front panel
- Wire diameter 0.6mm - 1.2mm
|Welding current max.||230,0 A|
|Welding current min.||10,0 A|
|Welding current / Duty cycle [10min/40°C]||210A / 30% MAG; 180A / 35% MMA; 230A / 35% TIG|
|Operating voltage||14,5-24,5V MIG/MAG; 20,4-27,2 MMA; 10,4-19,2V TIG|
|Open-circuit voltage||90,0 V|
|Dimension / b||0,22 m|
|Dimension / l||0,56 m|
MTG 2100 3m Mig Torch with Starter Consumable Set, 3m Earth Cable, 2.5m Detachable power lead, 0.8 - 1.0mm Drive Rolls and 1.5m Gas Hose
