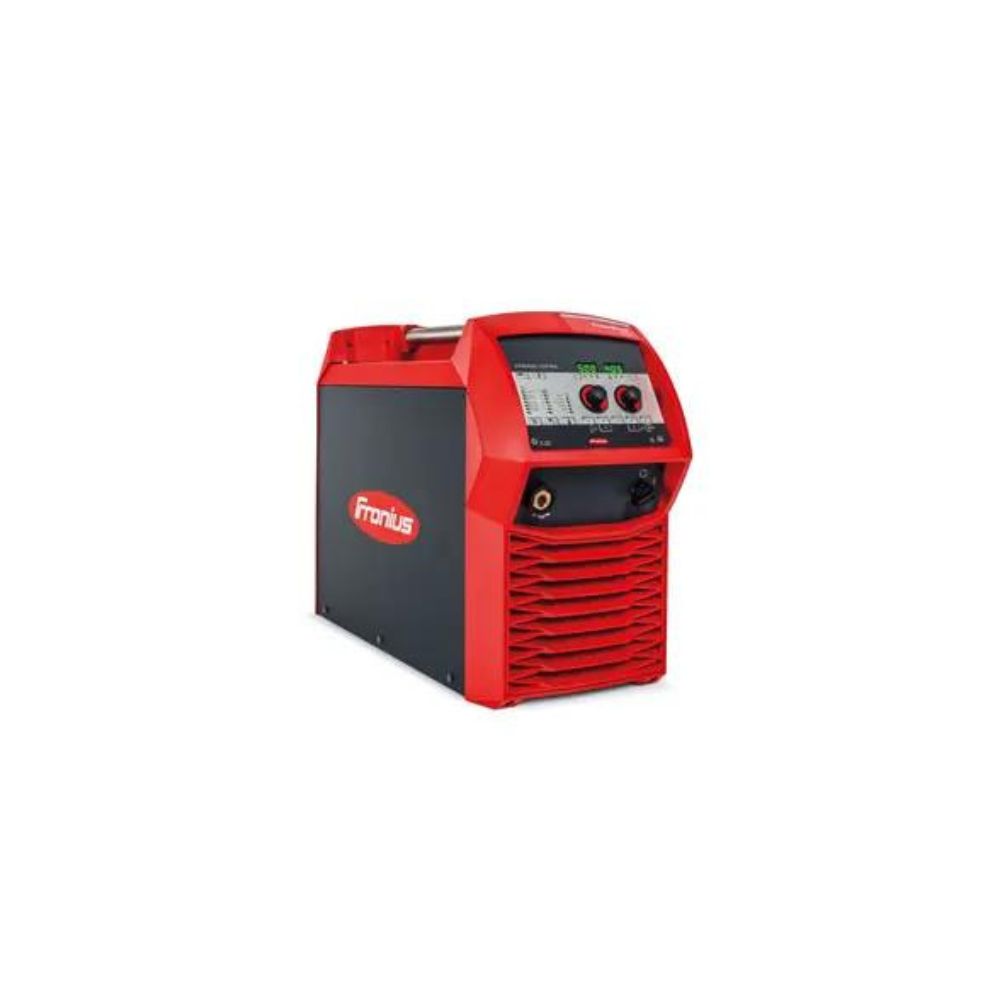

Fronius Transsteel 4000 Pulse

The Fronius Transsteel 4000 Pulse is primarily designed for MIG/MAG (GMAW) welding, including both standard short-arc and spray-arc transfer modes. Its defining capability is the integrated Pulse MIG process, which allows for controlled, low-heat-input welding ideal for thinner materials and out-of-position work. The pulse process is particularly beneficial when welding aluminium, stainless steel, and coated steels where spatter control and reduced distortion are priorities. While it is not a multi-process machine in the MMA or TIG sense, the Transsteel 4000 Pulse covers the full spectrum of wire-based welding processes, including the use of flux-cored wire (FCAW) with appropriate shielding gas or self-shielded wire. This makes it a highly versatile tool for steel fabrication, structural work, pressure vessel manufacture, and general engineering applications where MIG/MAG welding is the primary process.

Yes, the Fronius Transsteel 4000 Pulse is well suited to aluminium welding when configured correctly. The pulse welding process is in fact particularly advantageous for aluminium, as it allows precise control over heat input and droplet transfer, helping to avoid burn-through on thinner sections while still achieving good fusion and a clean bead profile. To weld aluminium successfully, the machine should be paired with a push-pull torch system or a short, low-friction liner to prevent wire feeding issues common with soft aluminium wire. A 100% Argon shielding gas is recommended, and the wire diameter should be selected to match the material thickness and joint type. The synergic programmes within the Transsteel 4000 Pulse include dedicated settings for aluminium alloys, simplifying parameter setup. For high-volume aluminium work, Fronius recommends pairing the machine with a suitable push-pull gun available as an accessory.

The Fronius Transsteel 4000 Pulse is designed to accept wire spools of up to 15 kg capacity on a standard 300 mm (BS 4337) spool hub. This makes it practical for high-productivity environments where frequent spool changes would otherwise interrupt workflow. The wire drive system supports wire diameters ranging from 0.6 mm to 1.6 mm, covering the most common solid wire and flux-cored wire sizes used in industrial MIG/MAG applications. The four-roll drive mechanism (available as a configuration option) provides enhanced feeding consistency particularly important when using softer wires such as aluminium or flux-cored types. Smaller 200 mm spools and mini-spools are also compatible with the use of an appropriate adaptor, offering flexibility when switching between wire types or small-batch jobs. Always ensure the correct drive rolls are installed to match the wire type and diameter in use.

Yes, the Fronius Transsteel 4000 Pulse requires a three-phase 400 V / 50 Hz power supply and is not compatible with single-phase domestic mains power. It requires a 35 A slow-blow fuse per phase and should be installed on a dedicated circuit in compliance with local electrical regulations. For site and outdoor use, the machine can be operated from a suitable three-phase generator, provided the generator delivers a stable, clean output of sufficient capacity. As a general guideline, a generator rated at a minimum of 20–25 kVA is recommended to support the Transsteel 4000 Pulse under typical welding loads without voltage instability affecting arc performance. Fronius' digital inverter technology does offer a degree of tolerance to mains voltage variation, but excessively unstable generator output can affect weld quality and may trigger protective shutdowns. Always consult a qualified electrician for installation and ensure the generator is earthed correctly before use.
